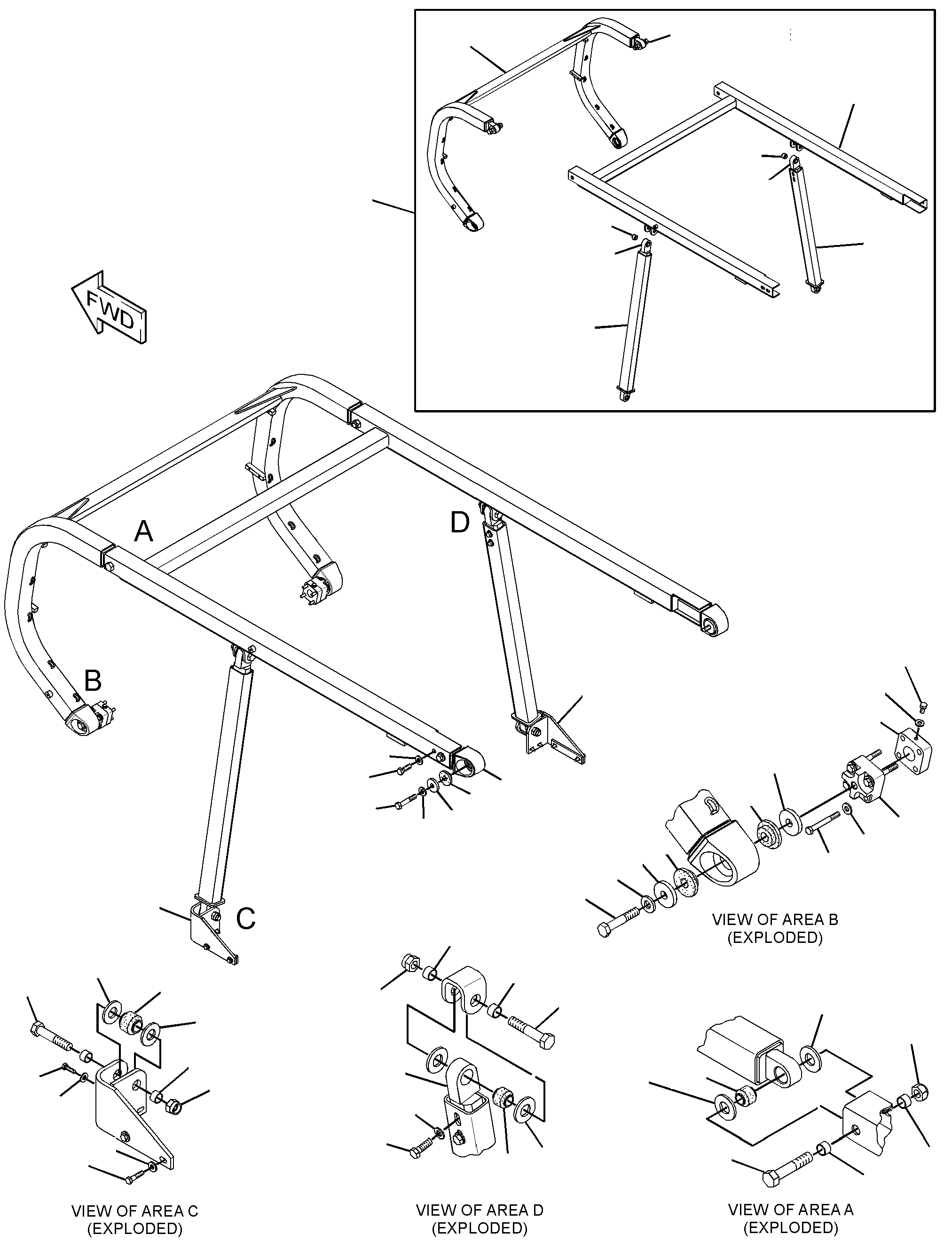

Assembly
100%

237-9318 SWEEP GPS/N JHB1-UP; LAY1-UP

Group No: 237-9318
Part NumberPart NameQty
1P27721 SPACER (1.031X1.219X0.75-IN THK)8
6T16982 MOUNT8
23505413 BLOCK AS2
23505444 PLATE8
23505455 SPACER2
25672856 BRACKET AS (LH)1
25672867 BRACKET AS (RH)1
27138638 SWEEP AS1
1P27728A SPACER (1.031X1.219X0.75-IN THK)4
3W65288B TUBE AS2
9S51878C MOUNTING6
25912898D PLATE AS2
25912918E GUARD AS1
25912928F GUARD AS1
6K36328G LOCKNUT (1-8-THD)2
8C88448H BOLT (1-8X5-IN)2
8P52448J WASHER (33.3X69.8X6.35-MM THK)4
27846969 SPACER2
5P107610 WASHER-HARD (13.5X30X4-MM THK)12
6V767611 NUT (M24X3-THD)4
7X254912 BOLT (M12X1.75X100-MM)8
7X256313 BOLT (M20X2.5X60-MM)4
7X256514 BOLT (M20X2.5X100-MM)2
7X256615 BOLT (M20X2.5X110-MM)2
7X772916 WASHER (11X25X3-MM THK)4
8P524417 WASHER (33.3X69.8X6.35-MM THK)8
8T036318 BOLT (M24X3X120-MM)4
8T412219 WASHER-HARD (17X32X3.5-MM THK)4
8T412320 WASHER (22X35X3.5-MM THK)2
8T419321 BOLT (M16X2X50-MM)4
8T419622 BOLT (M10X1.5X35-MM)4
8T543923 WASHER-HARD (21.5X45X6-MM THK)6
9X849924 BOLT (M12X1.75X60-MM)4
5P107525 WASHER-HARD (10.2X22.5X3-MM THK)2
8T413726 BOLT (M10X1.5X20-MM)2
