System And Components

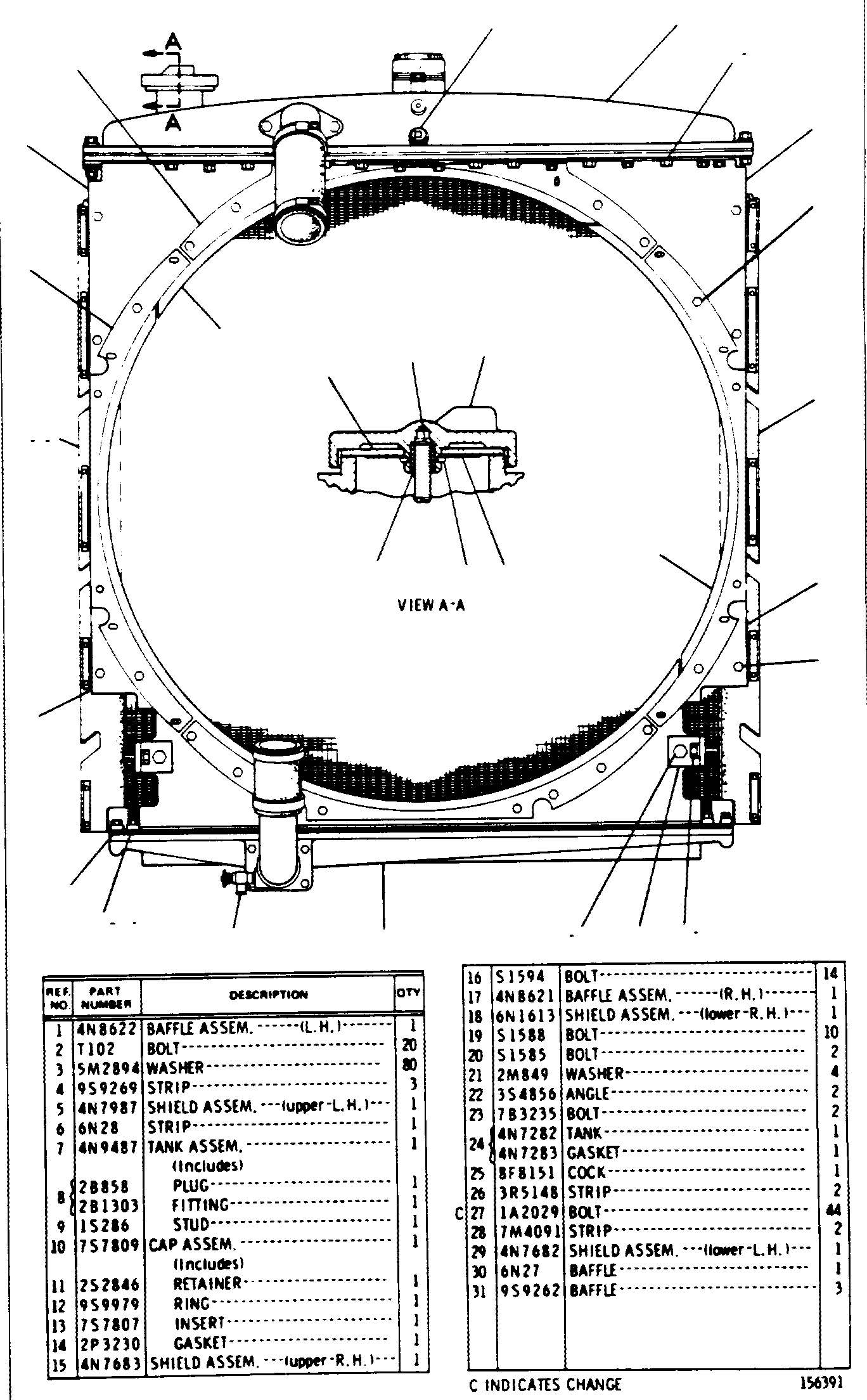

4N7804 RADIATOR GROUP--Rear View-Part 1 of 2
Group No: 4N7804
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4N8622 | 1 BAFFLE ASSEM. (L.H.) | 1 | |
| 0T0102 | 2 BOLT | 20 | |
| 5M2894 | 3 WASHER | 80 | |
| 9S9269 | 4 STRIP | 3 | |
| 4N7987 | 5 SHIELD ASSEM. (upper-L.H.) | 1 | |
| 6N0028 | 6 STRIP | 1 | |
| 4N9487 | 7 TANK ASSEM. | 1 | |
| 2B0858 | 8 PLUG | 1 | |
| 2B1303 | FITTING | 1 | |
| 1S0286 | 9 STUD | 1 | |
| 7S7809 | 10 CAP ASSEM. | 1 | |
| 2S2846 | 11 RETAINER | 1 | |
| 9S9979 | 12 RING | 1 | |
| 7S7807 | 13 INSERT | 1 | |
| 2P3230 | 14 GASKET | 1 | |
| 4N7683 | 15 SHIELD ASSEM. (upper-R.H.) | 1 | |
| 0S1594 | 16 BOLT | 14 | |
| 4N8621 | 17 BAFFLE ASSEM. (R.H.) | 1 | |
| 6N1613 | 18 SHIELD ASSEM. (lower-R.H.) | 1 | |
| 0S1588 | 19 BOLT | 10 | |
| 0S1585 | 20 BOLT | 2 | |
| 2M0849 | 21 WASHER | 4 | |
| 3S4856 | 22 ANGLE | 2 | |
| 7B3235 | 23 BOLT | 2 | |
| 4N7282 | 24 TANK | 1 | |
| 4N7283 | GASKET | 1 | |
| 8F8151 | 25 COCK | 1 | |
| 3R5148 | 26 STRIP | 2 | |
| 1A2029 | 27 BOLT | 44 | |
| 7M4091 | 28 STRIP | 2 | |
| 4N7682 | 29 SHIELD ASSEM. (lower-L.H.) | 1 | |
| 6N0027 | 30 BAFFLE | 1 | |
| 9S9262 | 31 BAFFLE | 3 |
