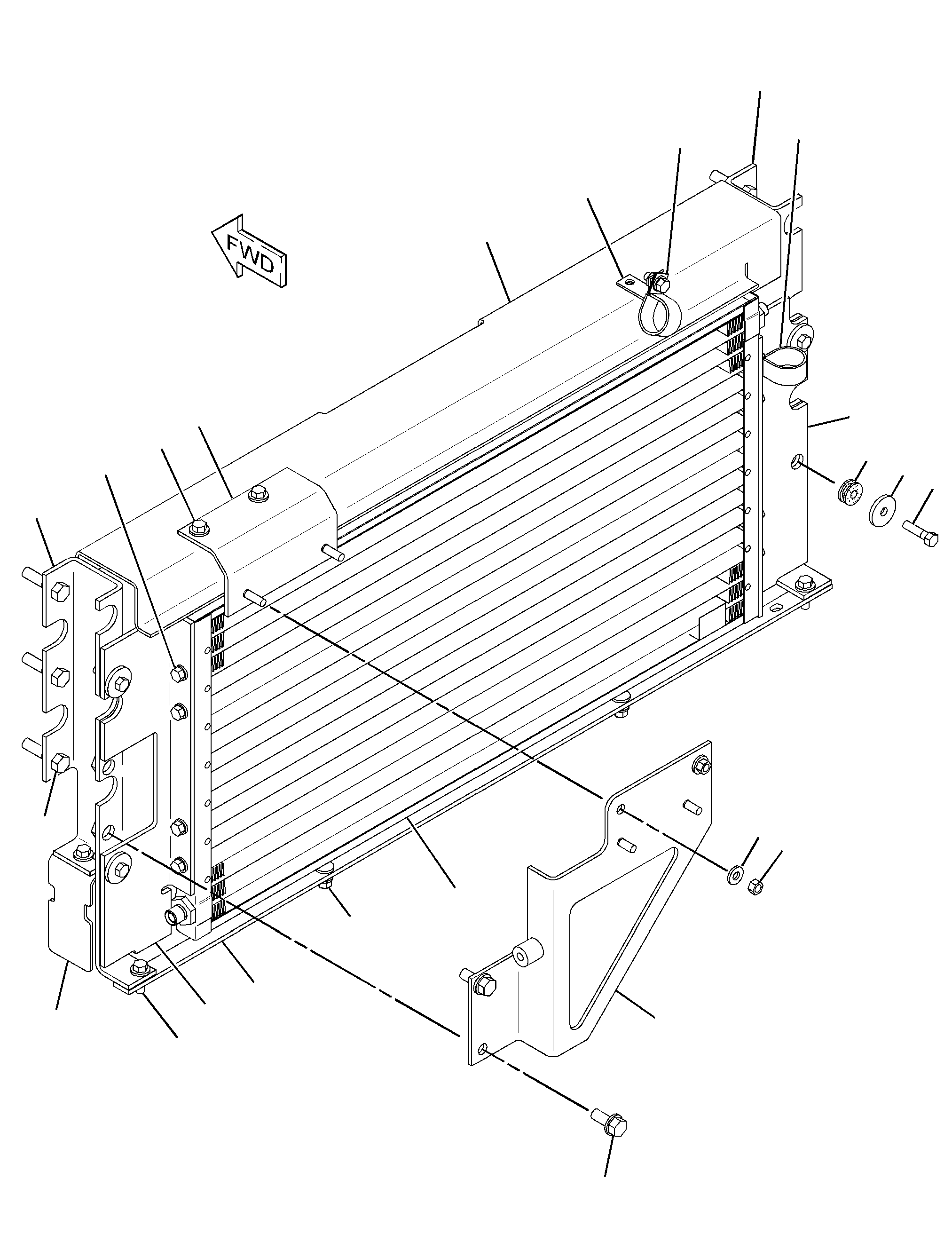

109-9941 CONDENSER & MTG GP-REFRIGERANTS/N AKA1-UP

Group No: 109-9941
Part NumberPart NameQty
6N87441 MOUNT4
7N12772 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)1
9L87813 WASHER (0.406X1.5X0.188-IN THK)4
10887174 BRACKET AS1
3Y7829BOSS (3/8-16-THD)1
9D4439STUD-WELD (3/8-16X1-IN)2
11068915 BRACKET AS (RH)1
1F0750NUT-WELD (3/8-16-THD)2
11068966 BRACKET AS (LH)1
1F0748NUT-WELD (1/2-13-THD)2
1F0750NUT-WELD (3/8-16-THD)2
11068977 BRACKET1
11068988 BRACKET1
11069189 SUPPORT AS1
5M9621STUD-WELD (3/8-16-THD)2
110692810 SUPPORT AS1
9D4439STUD-WELD (3/8-16X1-IN)2
112262511 BAFFLE AS1
1F0750NUT-WELD (3/8-16-THD)3
206588912 CONDENSER GP-REFRIGERANT (AIR CONDITIONER)1
349151813 BRACKET AS2
4L645414 BOLT (3/8-16X1-IN)4
4L933715 BOLT (3/8-16X1.5-IN)4
5M306216 BOLT (3/8-16X0.75-IN)8
5P107517 WASHER-HARD (10.2X22.5X3-MM THK)8
5S737918 BOLT (3/8-16X0.875-IN)1
6V880119 NUT (3/8-16-THD)2
7D723320 CLIP (LOOP)2
8T422321 WASHER-HARD (13.5X25.5X3-MM THK)2
8T483522 BOLT (1/2-13X2-IN)6
8T489623 WASHER-HARD (10.2X18.5X2.5-MM THK)9
8T891724 BOLT (1/2-13X1.25-IN)2
9B723725 BOLT (3/8-16X1.25-IN)2
6V880126 NUT (3/8-16-THD)2
8T489627 WASHER-HARD (10.2X18.5X2.5-MM THK)2
