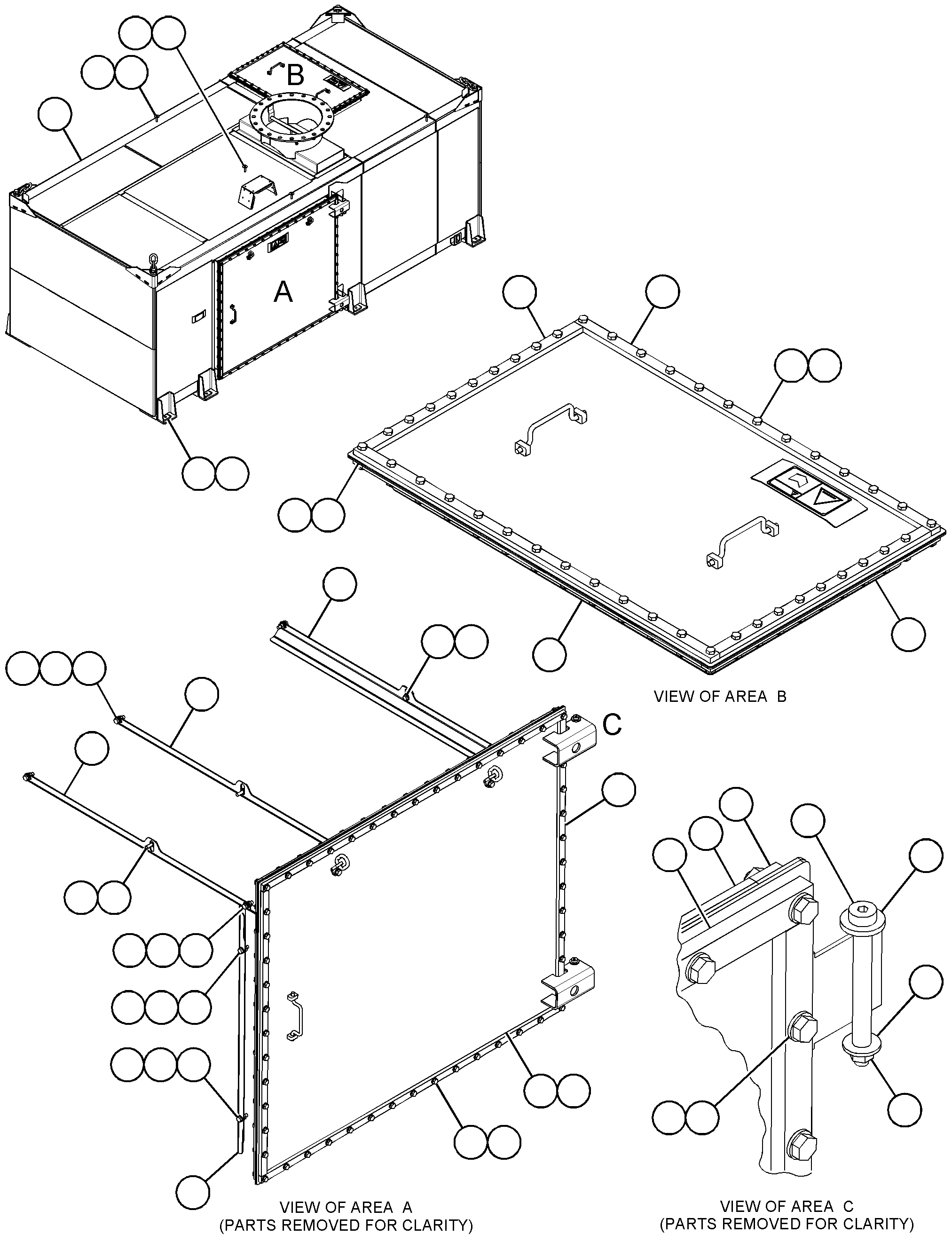

457-8385 BODY AS-CATALYTIC CONVERTER3X3X3

Group No: 457-8385
Part NumberPart NameQty
38810091 HATCH AS1
6C3677RIVET-POP4
4305967PLATE-WARNING (HOT SURFACE, HANDS CLEAR)1
38810132 GASKET AS1
45429723 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)13
45429784 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)11
45429795 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)11
45429836 PLATE2
45429847 PLATE2
45512008 PLATE2
45783919 FRAME AS1
3662392BOSS (M6X1X49.4-MM)4
4544440BRACKET AS2
6C3210BOLT (7/8-9X3-IN)1
7X0449NUT-FULL (7/8-9-THD)1
8C6913WASHER-HARD (24X41.5X4-MM THK)1
4393939BRACKET AS-LINK1
4575684BRACKET AS2
6C3210BOLT (7/8-9X3-IN)1
7X0449NUT-FULL (7/8-9-THD)1
8C6913WASHER-HARD (24X41.5X4-MM THK)1
4393939BRACKET AS-LINK1
8T3490NUT-WELD (M10X1.5-THD)3
457839510 CHANNEL2
457839611 CHANNEL1
457839712 PLATE2
457839813 GASKET AS1
457839914 HATCH AS1
8K7186NUT-WELD (7/16-14-THD)2
8T5360WASHER (12X22.5X2.5-MM THK)2
8T8916BOLT (7/16-14X1.5-IN)2
4393938BRACKET-LINK2
457840015 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)13
457842916 CHANNEL6
439290017 SPACER (17X30X5-MM THK)8
7X058418 WASHER-HARD (13.5X20.5X2-MM THK)8
151913019 BOLT-SPECIAL2
2Y582920 NUT (M10X1.5-THD)18
6V182021 BOLT (M10X1.5X30-MM)21
6V583922 WASHER (11X21X2.5-MM THK)39
6V880123 NUT (3/8-16-THD)2
8T412124 WASHER-HARD (11X21X2.5-MM THK)96
8T413825 BOLT (M6X1X20-MM)22
8T418526 BOLT (M10X1.5X50-MM)96
473384127 PLATE8
454348028 WASHER (7.1X38.1X1.3-MM THK)22
