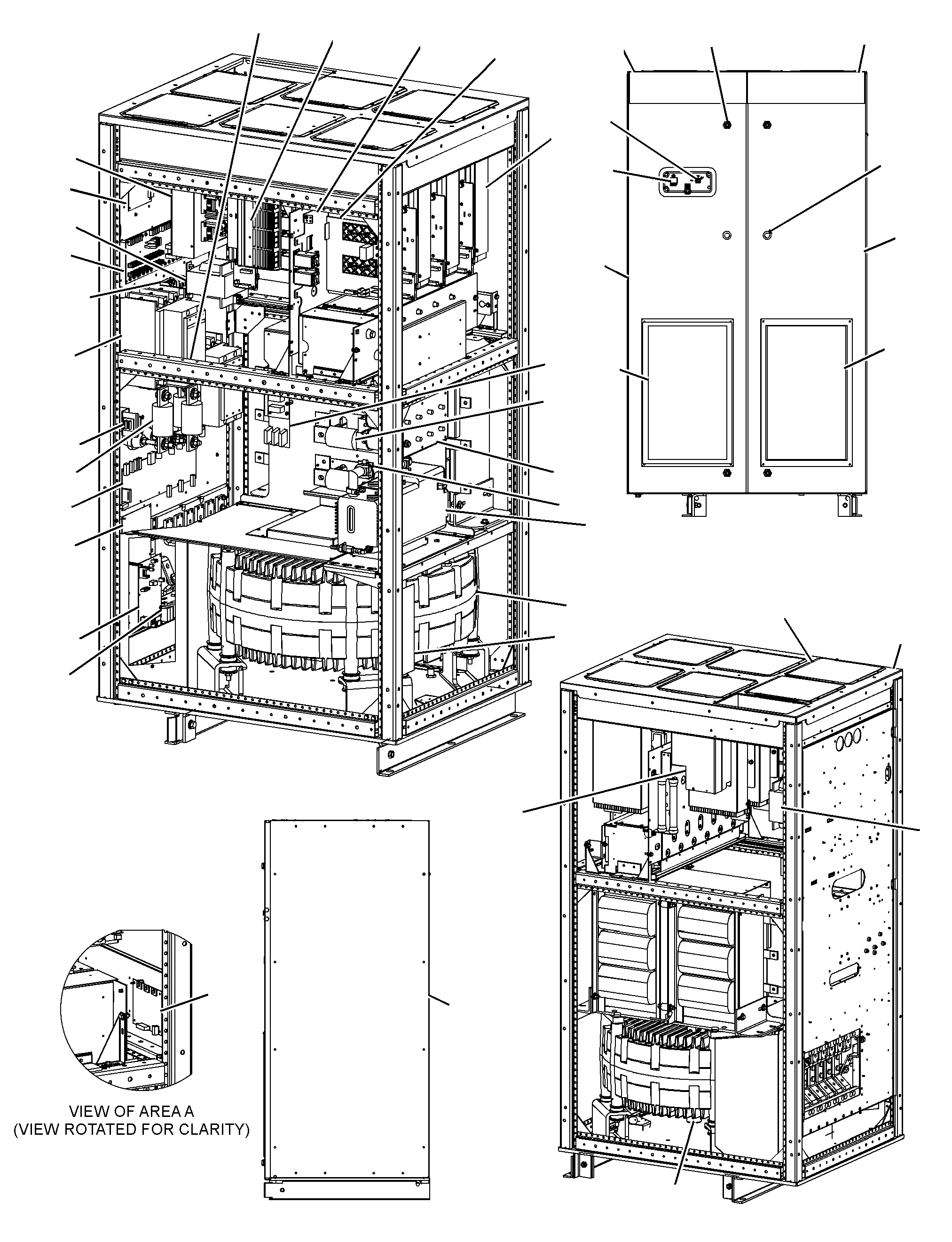

251-0043 PANEL GP-POWER SUPPLY -MULTIMODULE CABINETS/N CSE157-159; CNM242-UP; CPM172-172; HDR1-110; CTX335-UP; CRY406-UP; CPZ373-373; EDZ1-102
Group No: 251-0043
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2423317 | 1 PLATE | 2 | |
| 2031007 | 2 FAN GP-CIRCULATING | 6 | |
| 2423328 | 3 PLATE (LEFT) | 1 | |
| 2012633 | 4 SWITCH-KEY (CONTROL) | 1 | |
| 2364885 | KEY (CONTROL) | 1 | |
| 2012631 | 5 SWITCH-PUSH BUTTON (EMERGENCY MODULE OFF) | 1 | |
| 2512015 | 6 DOOR | 1 | |
| 2402526 | 7 FILTER ELEMENT-ENCLOSURE AIR | 2 | |
| 2423330 | 8 PLATE | 1 | |
| 2402511 | 9 HANDLE | 2 | |
| 2402524 | 10 RING | 2 | |
| 2504590 | 11 DOOR | 1 | |
| 2402516 | 12 SCREEN | 2 | |
| 2423318 | 13 PLATE (REAR) | 1 | |
| 2402531 | 14 LATCH-DOOR | 4 | |
| 2505523 | 15 SWITCH AS (STATIC BYPASS) | 1 | |
| 2429378 | 16 BOARD AS-CIRCUIT (FAN MONITOR) | 1 | |
| 2028902 | 17 TRANSFORMER (230-VOLT) | 1 | |
| 2012706 | 18 BOARD AS-CIRCUIT (POWER DISTRIBUTION) | 1 | |
| 2513147 | 19 DIODE | 1 | |
| 2400820 | 20 BLOCK-FUSE (2-POLE) | 2 | |
| 2006266 | 21 FUSE (7-AMPERE) | 2 | |
| 2006265 | 22 FUSE (4-AMPERE) | 2 | |
| 2505513 | 23 CONTACTOR | 2 | |
| 2947319 | 24 SWITCH AS-PUSH BUTTON (EMERGENCY POWER OFF) | 1 | |
| 2014775 | 25 FUSE (500-AMPERE) | 3 | |
| 2012188 | 26 BOARD AS-CIRCUIT (SYSTEM I/O) | 1 | |
| 2265486 | 27 BOARD AS-CIRCUIT (SYSTEM I/O, DAUGHTER) | 1 | |
| 2505512 | 28 BOARD AS-CIRCUIT (EMI FILTER) | 1 | |
| 3355523 | 29 MODULE GP-CONVERTER (LH) | 3 | |
| 2274833 | 30 PANEL GP-ELECTRICAL (DC BUS) | 1 | |
| 2505510 | 31 MODULE AS (FIELD COIL DRIVER) | 1 | |
| 3250395 | 32 MODULE GP-CONVERTER (RH) | 3 | |
| 2274836 | 33 BOARD AS-CIRCUIT (DC INTERFACE) | 1 | |
| 2015230 | 34 FUSE (500-AMPERE) | 3 | |
| 2505511 | 35 FILTER AS-ELECTRICAL (AC) | 1 | |
| 2402661 | 36 CLAMP | 1 | |
| 2313504 | 37 PUMP & MOTOR GP-VACUUM | 1 | |
| 2427424 | 38 BOARD AS-CIRCUIT (FLYWHEEL INTERFACE) | 1 | |
| 3731693 | 39 BOARD AS-CIRCUIT (APC1+ (MMS)) | 1 | |
| 2028903 | 40 TRANSFORMER (230-VOLT) | 1 | |
| 2008452 | 41 SENSOR-VACUUM (FLYWHEEL BEARING) | 1 | |
| 2402513 | 42 RETAINER | 1 | |
| 2402683 | 43 GUARD | 1 | |
| 2402527 | 44 GASKET | 4 | |
| 2509977 | 45 CONTACT AS | 3 | |
| 2505521 | 48 POWER SUPPLY GP | 1 | |
| 2012604 | 49 BOARD AS-CIRCUIT (AC INTERFACE) | 1 | |
| 2441409 | 50 FLYWHEEL GP-POWER SUPPLY | 1 | |
| 2442244 | 51 SENSOR GP-OPTICAL (FLYWHEEL) | 2 | |
| 2307235 | SEAL-O-RING | 1 | |
| 2014708 | 52 CONNECTOR | 1 | |
| 2274842 | 53 COVER | 1 | |
| 2593199 | 54 BOARD AS-CIRCUIT (EMI FILTER) | 1 | |
| 2P2975 | 55 SEAL-O-RING | 1 | |
| 3635174 | 56 SEAL-O-RING | 2 | |
| 1069586 | 57 SEAL-O-RING | 1 | |
| 2955408 | 58 KIT-SENSOR (VACUUM PUMP DEAD HEAD) | 1 | |
| 2402261 | 59 PIN AS | 2 | |
| 2401684 | 60 SEAL-O-RING | 2 | |
| 2307235 | 61 SEAL-O-RING | 2 | |
| 2305687 | 62 PLUG AS | 4 | |
| 2310489 | 63 SEAL-O-RING | 4 | |
| 2270942 | 64 SEAL-O-RING | 2 | |
| 2402686 | 65 FITTING | 2 | |
| 2402670 | 66 SEAL | 2 | |
| 2435347 | 67 TUBING | 1 |
