System And Components

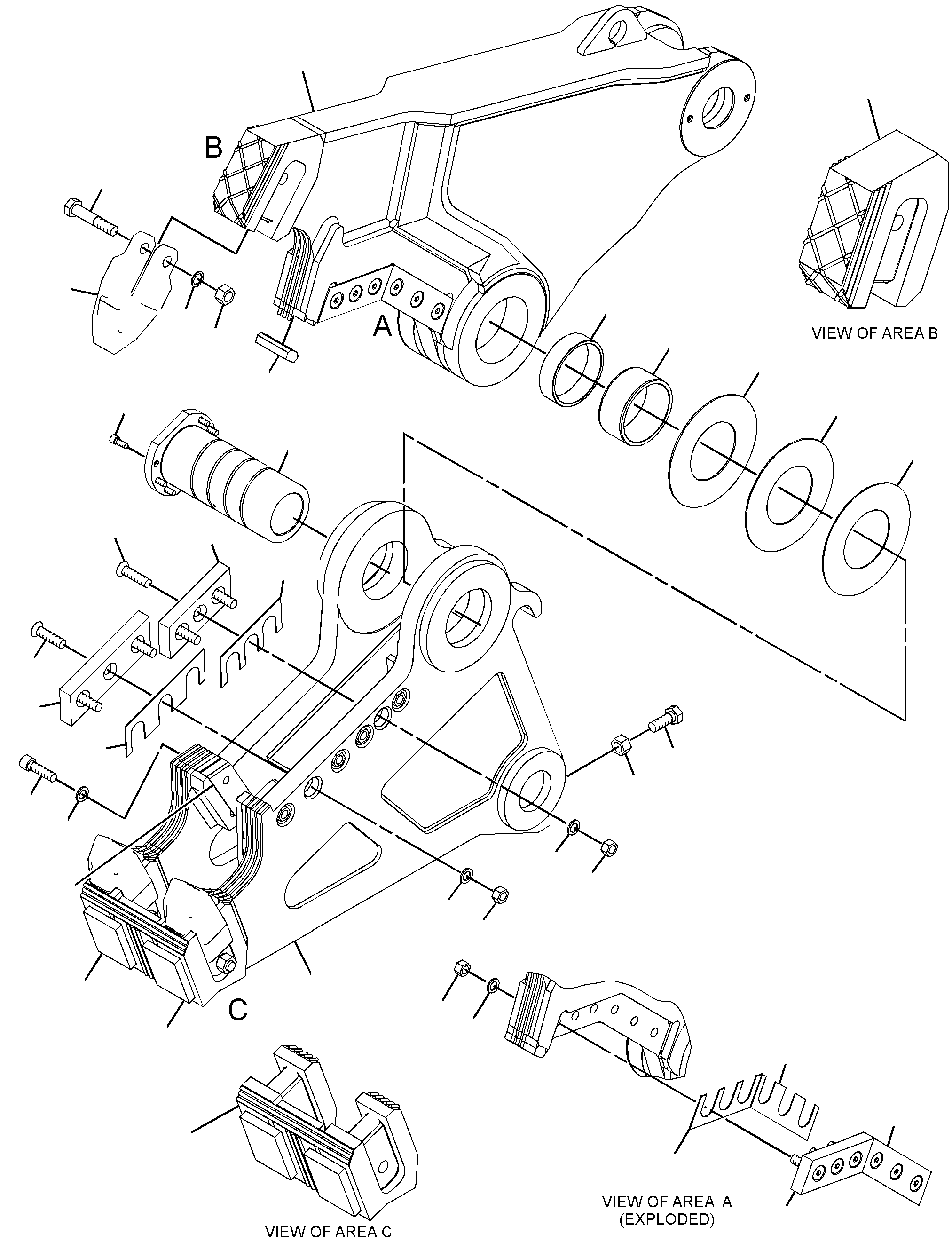

Assembly
100%

323-6091 JAW GP-COMBINATIONS/N JMX1-UP

Group No: 323-6091
Part NumberPart NameQty
16903851 EDGE-CUTTING2
16903862 SHIM (1-MM THK)6
16903883 SHIM (1.5-MM THK)2
16946414 BUSHING2
16960665 EDGE-CUTTING1
16960726 SHIM (1-MM THK)5
16960737 SHIM (1.5-MM THK)1
16971098 PIN1
16971119 SPACER (143X159X42-MM THK)1
169711210 SHIM (2.5-MM THK)2
169711311 SHIM (3-MM THK)2
169711412 SHIM (3.5-MM THK)2
169711713 EDGE-CUTTING2
169711814 SHIM (1-MM THK)6
169711915 SHIM (1.5-MM THK)2
280920016 TOOTH3
323609217 JAW AS (LOWER)1
226379817A PLATE-WEAR2
323609318 JAW AS (UPPER)1
306112118A PLATE-WEAR1
159112219 LOCKWASHER3
170352420 SCREW-FLAT HEAD (M20X2.5X80-MM)12
174639021 BOLT-SOCKET HEAD (M20X2.5X70-MM)2
7X257522 BOLT (M24X3X60-MM)2
8T036323 BOLT (M24X3X120-MM)3
8T395724 BOLT-SOCKET HEAD (M12X1.75X30-MM)6
8T400125 NUT (M24X3-THD)5
8T412326 WASHER (22X35X3.5-MM THK)14
8T413127 NUT (M20X2.5-THD)12
347072928 HOLDER-TOOTH1
347072829 HOLDER-TOOTH1
