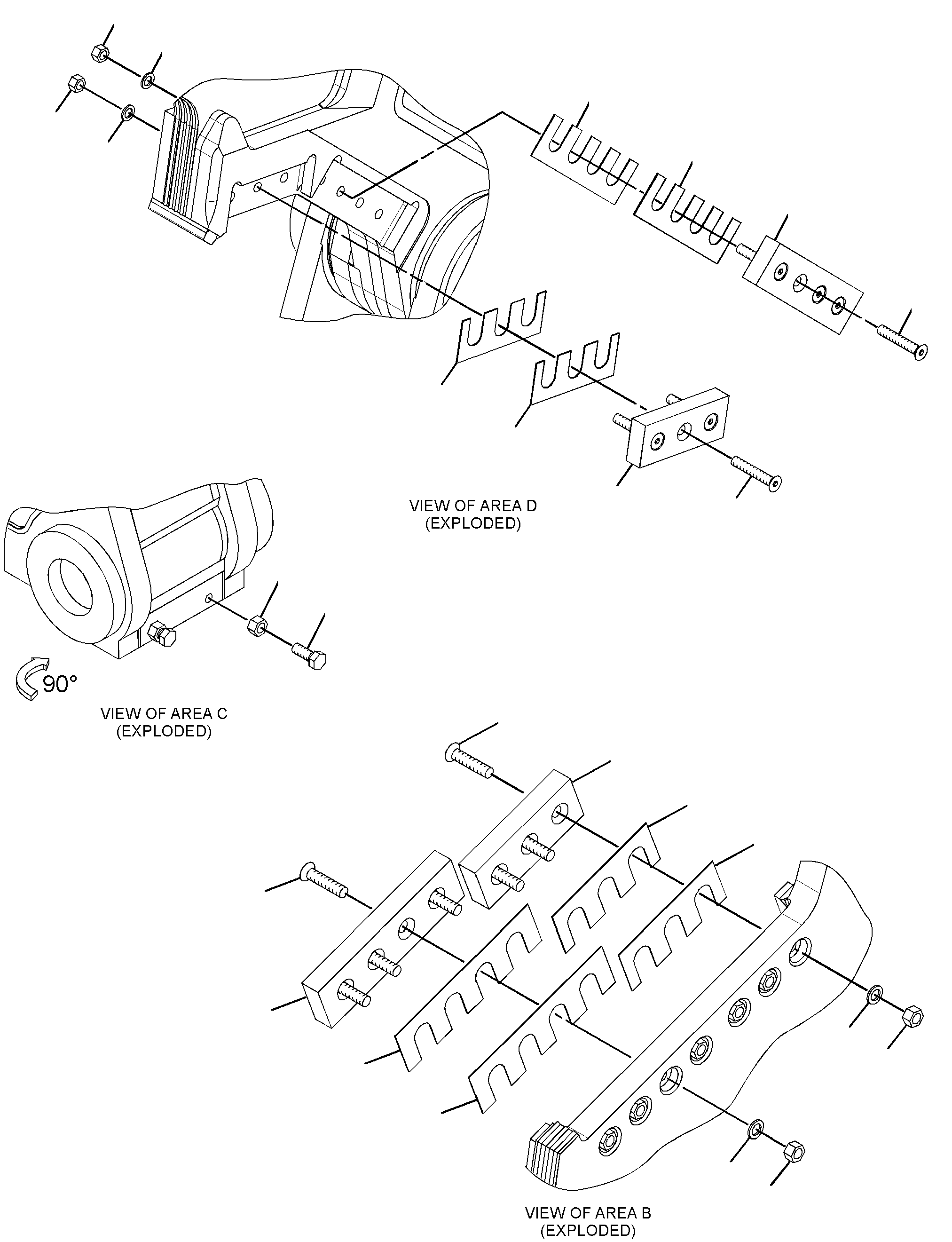

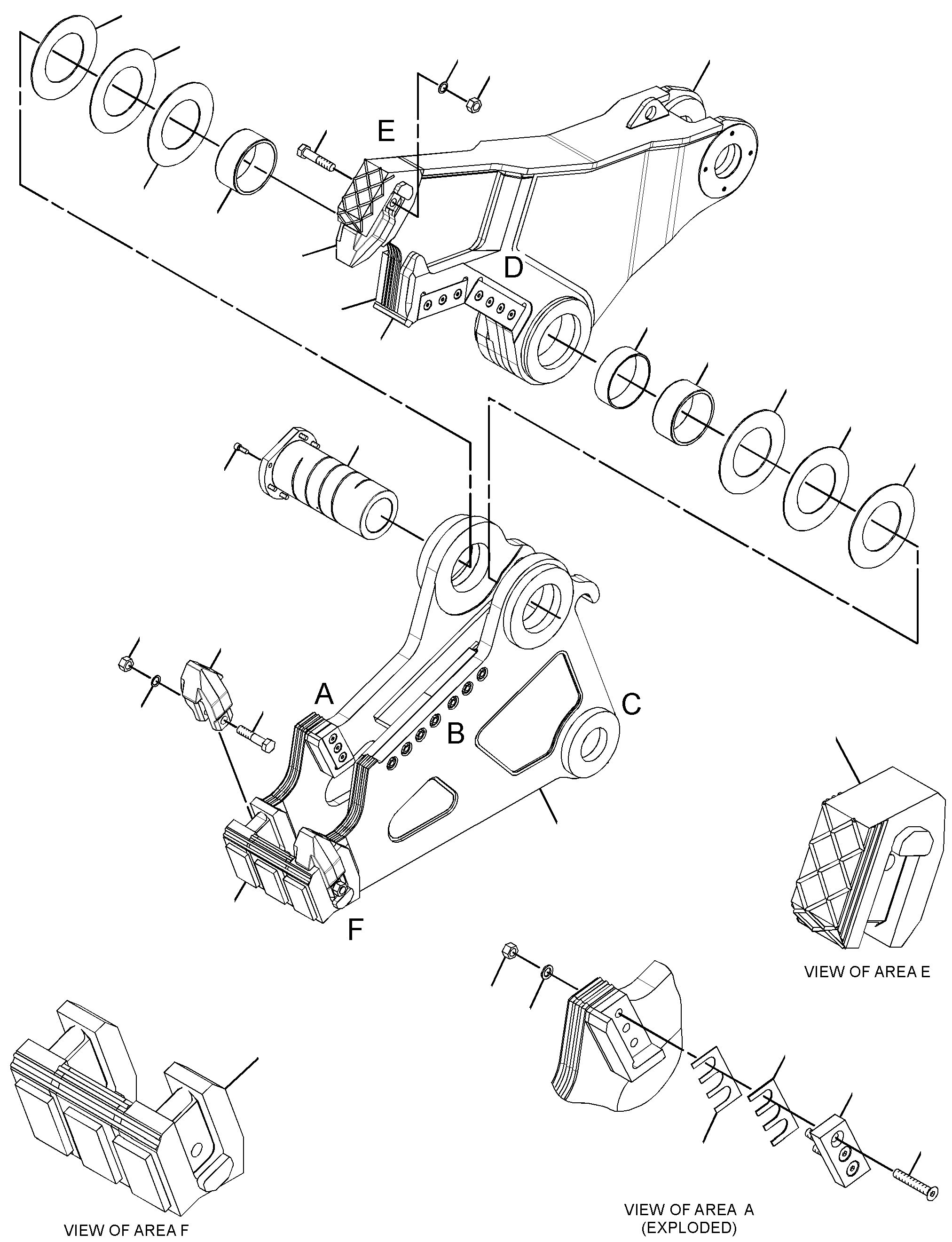

325-0812 JAW GP-COMBINATIONS/N JMZ1-UP

Group No: 325-0812
Part NumberPart NameQty
16903851 EDGE-CUTTING1
16903862 SHIM (1-MM THK)3
16903883 SHIM (1.5-MM THK)1
31313064 TOOTH3
17259035 EDGE-CUTTING2
17259046 SHIM (1-MM THK)6
17259057 SHIM (1.5-MM THK)2
17259318 EDGE-CUTTING2
17259329 SHIM (1.5-MM THK)2
172593310 SHIM (1-MM THK)6
173168111 PIN1
173168212 BUSHING2
173168413 SPACER (210X224X69-MM THK)1
173168614 SHIM (4.5-MM THK)2
173168715 SHIM (5-MM THK)2
173168816 SHIM (5.5-MM THK)2
325080217 JAW AS (LOWER)1
321987717A PLATE-WEAR3
325080718 JAW AS (UPPER)1
321991318A PLATE1
321992118B PLATE-WEAR1
144269819 SCREW-FLAT HEAD (M20X2.5X90-MM)7
144308720 SCREW-FLAT HEAD (M20X2.5X120-MM)10
169317721 LOCKWASHER3
7X257522 BOLT (M24X3X60-MM)2
7X258423 BOLT (M30X3.5X140-MM)3
8C872224 NUT (M30X3.5-THD)3
8T400125 NUT (M24X3-THD)2
8T412326 WASHER (22X35X3.5-MM THK)17
8T413127 NUT (M20X2.5-THD)17
8T494428 BOLT-SOCKET HEAD (M16X2X40-MM)6
347251129 TOOTH AS1
347251030 TOOTH AS1
