System And Components

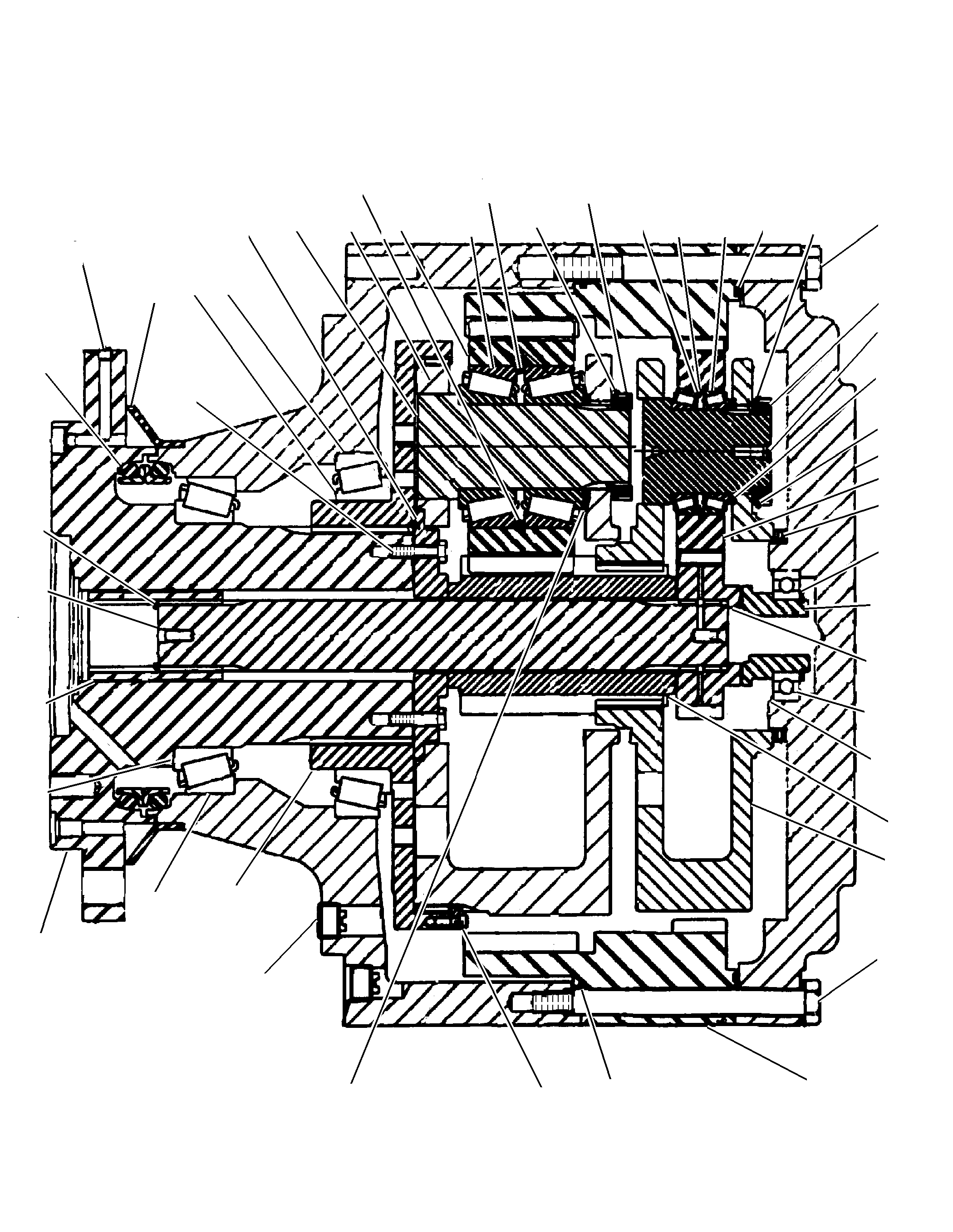

138-4419 PLANETARY GP-ROTORS/N 3TK113-UP
Group No: 138-4419
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W4098 | 1 SEAL GP-DUO-CONE | 1 | |
| 9F2247 | 2 PLUG-PIPE | 2 | |
| 1534853 | 3 SEAL-BOOT | 1 | |
| 2P1824 | 4 CONE-BEARING (TAPERED ROLLER) | 1 | |
| 1532755 | 5 CUP-BEARING | 1 | |
| 1532741 | 6 PLATE-RETAINER | 1 | |
| 1532740 | 7 CARRIER | 1 | |
| 1C3965 | 8 GEAR-PLANETARY | 3 | |
| 0673161 | 9 RING-RETAINING | 3 | |
| 1B3991 | 10 CONE-BEARING | 6 | |
| 1C3964 | 11 PIN | 6 | |
| 2H3778 | 12 LOCKNUT | 3 | |
| 1C4379 | 13 SPACER | 3 | |
| 0688093 | 14 RING-RETAINING | 3 | |
| 1119036 | 15 CUP-BEARING | 6 | |
| 1485718 | 16 SEAL-O-RING | 1 | |
| 3B4512 | 17 LOCKWASHER | 20 | |
| 1J8930 | 18 BOLT (3/4-10X7.5-IN) | 16 | |
| 1532735 | 19 COVER | 1 | |
| 1C3831 | 20 SHAFT-PLANETARY | 3 | |
| 1C3785 | 21 LOCKWASHER | 6 | |
| 1C3830 | 22 SPACER | 6 | |
| 0780000 | 23 WASHER | 2 | |
| 5E2810 | 24 BEARING | 1 | |
| 4K4284 | 25 RING-RETAINING | 1 | |
| 1532736 | 26 BEARING-CARRIER | 1 | |
| 1034965 | 27 GEAR-SUN | 1 | |
| 2D5658 | 28 BALL BEARING | 1 | |
| 1535528 | 29 RING-RETAINING | 1 | |
| 1034966 | 30 GEAR-SUN | 1 | |
| 1034967 | 31 CARRIER | 1 | |
| 1527967 | 32 BOLT | 2 | |
| 1035426 | 33 GEAR-RING | 1 | |
| 9N6762 | 34 GEAR-PLANETARY | 3 | |
| 1363942 | 35 SEAL-O-RING | 1 | |
| 4M5281 | 36 BOLT (1/4-20X0.75-IN) | 6 | |
| 1532737 | 37 PLATE-RETAINER | 3 | |
| 7L3283 | 38 CUP-BEARING | 6 | |
| 1C4382 | 39 SPACER | 3 | |
| 5E2803 | 40 PLUG | 3 | |
| 1532738 | 41 COUPLING | 1 | |
| 0817686 | 42 SHAFT-PLANETARY | 3 | |
| 2P1823 | 43 CUP-BEARING (TAPERED ROLLER) | 1 | |
| 1532742 | 44 SPINDLE | 1 | |
| 1532744 | 45 CONE-BEARING | 1 | |
| 5E9080 | 46 COUPLING | 1 | |
| 5E9071 | 47 PISTON | 1 | |
| 1034972 | 48 SHAFT-INPUT | 1 | |
| 1535900 | 49 BOLT | 12 | |
| 1532743 | 50 SHIM | 1 |
