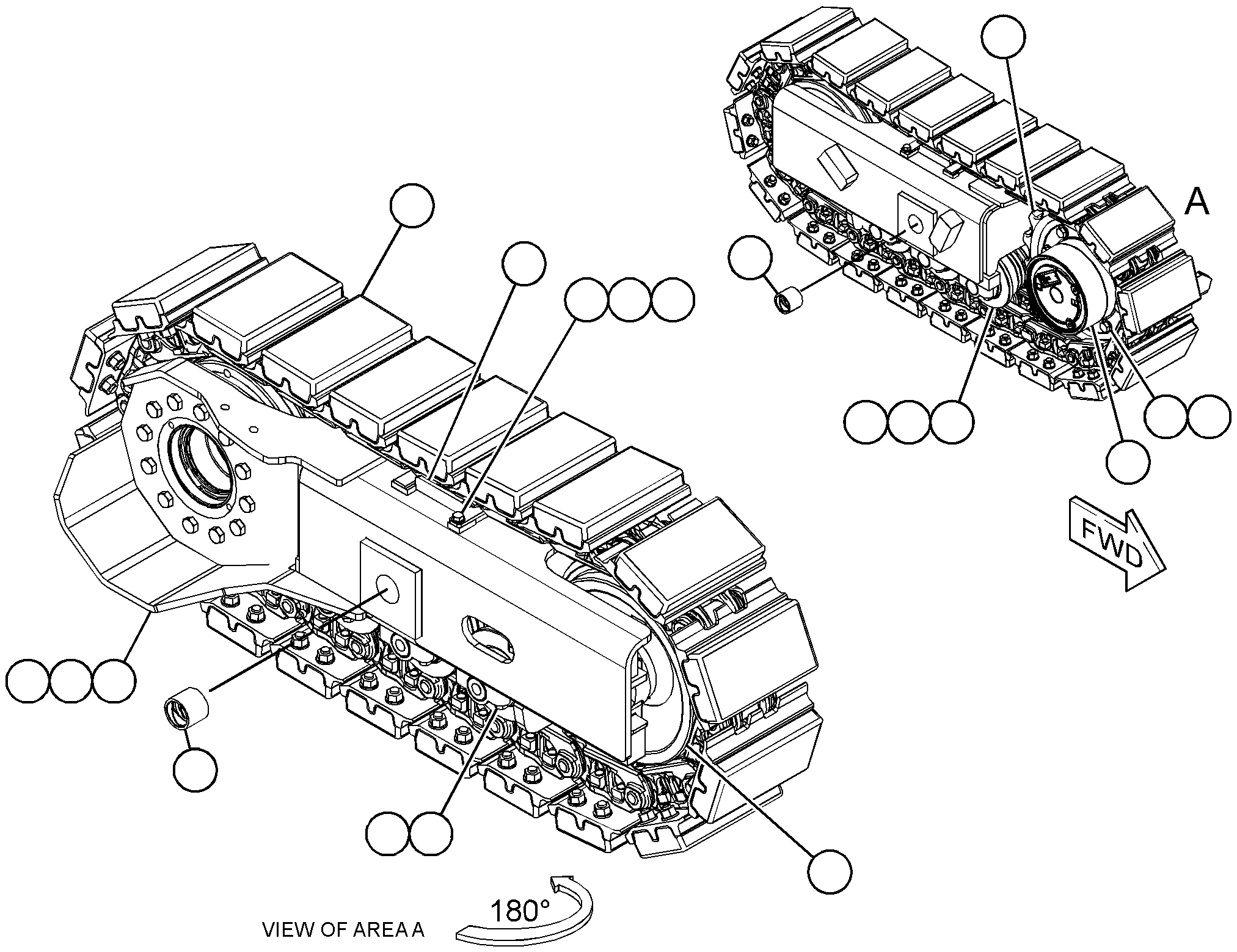

533-3236 FRAME GP-FDR & TRACK ROLLER -REAR, RHS/N NM91-UP

Group No: 533-3236
Part NumberPart NameQty
8T41911 BOLT (M10X1.5X16-MM)2
8T41932 BOLT (M16X2X50-MM)12
6V38233 BOLT (M12X1.75X60-MM)12
6V44294 BOLT (M16X2X40-MM)8
7X33925 WASHER-HARD (13.5X22.5X3-MM THK)12
8T41216 WASHER-HARD (11X21X2.5-MM THK)2
8T41227 WASHER-HARD (17X32X3.5-MM THK)8
9X82578 WASHER (17.5X30X3.5-MM THK)12
46364899 DRIVE GP-FINAL1
471415610 SPROCKET-TRACK1
476098411 PAD-WEAR2
476098712 PLATE1
533323513 FRAME AS-BEARING1
479860613A BEARING-SLEEVE2
5333230FRAME AS-TRACK1
8T3490NUT-WELD (M10X1.5-THD)2
9R3983PLATE2
471801114 IDLER GP-FRONT1
475265715 TRACK GP1
480414816 ROLLER GP-TRACK3
5686392KIT-UNDERCARRIAGE1
5686388KIT-UNDERCARRIAGE1
5695445KIT-UNDERCARRIAGE1
5695446KIT-UNDERCARRIAGE1
