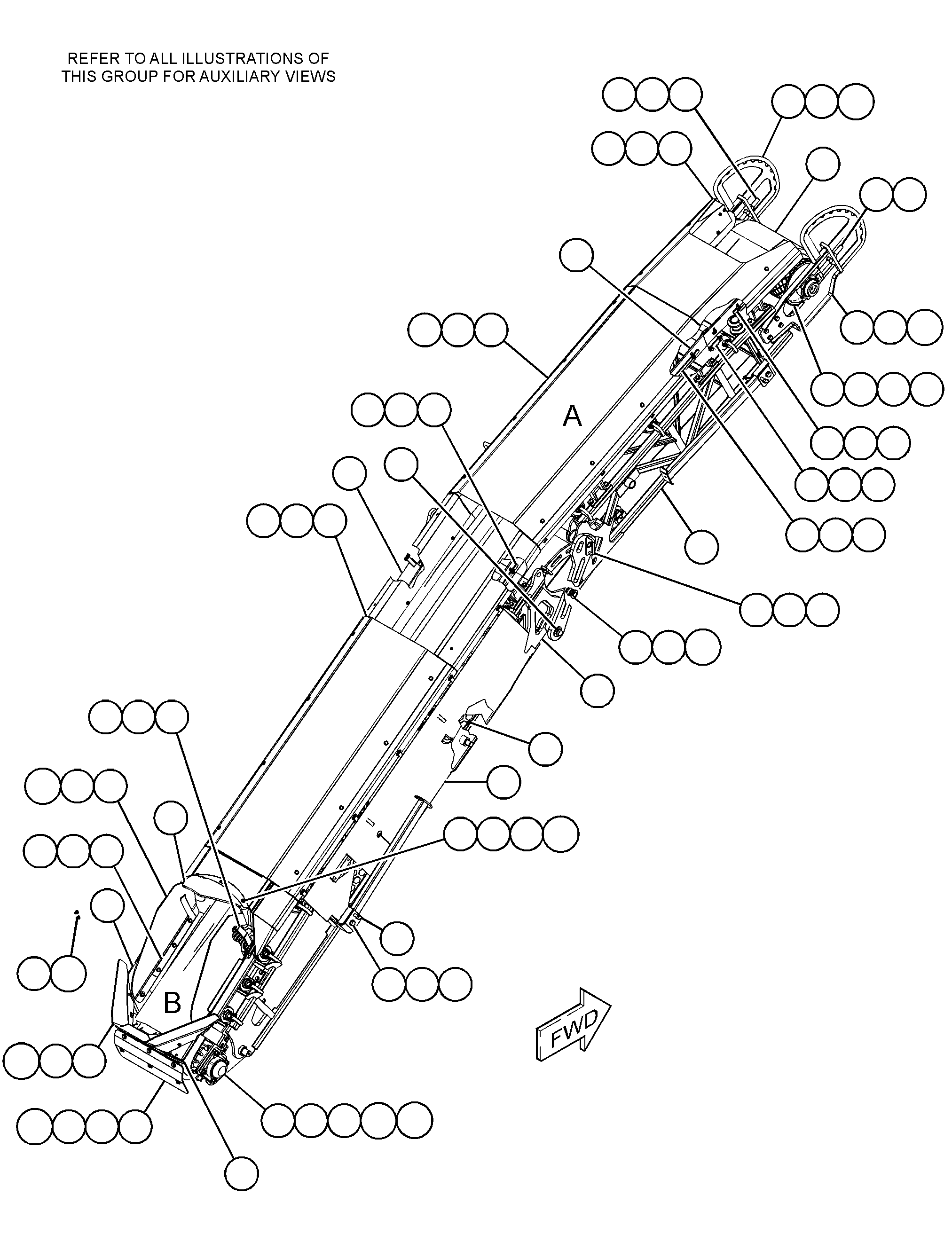

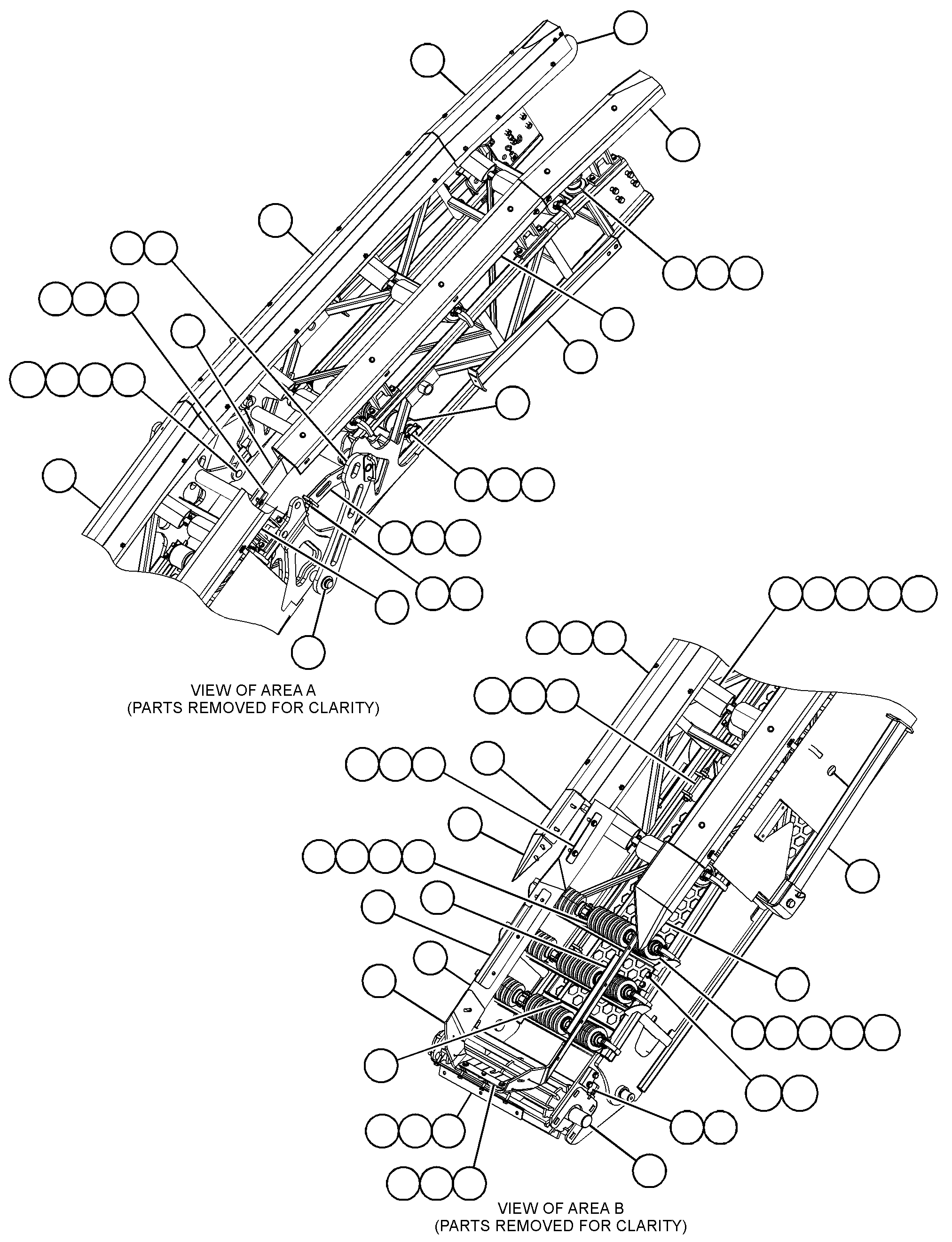

577-3004 CONVEYOR GP -MECHANICAL FOLDINGS/N J63200-UP
Group No: 577-3004
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5557665 | 1 FLASHING | 1 | |
| 5557667 | 2 FLASHING | 1 | |
| 8T4182 | 3 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4183 | 4 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4186 | 5 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4195 | 6 BOLT (M10X1.5X30-MM) | 39 | |
| 8T4196 | 7 BOLT (M10X1.5X35-MM) | 6 | |
| 8T5005 | 8 BOLT (M10X1.5X70-MM) | 12 | |
| 7X2563 | 9 BOLT (M20X2.5X60-MM) | 2 | |
| 8T4193 | 10 BOLT (M16X2X50-MM) | 8 | |
| 8T6912 | 11 BOLT (M8X1.25X50-MM) | 20 | |
| 8T7930 | 12 BOLT (M12X1.75X160-MM) | 4 | |
| 0950881 | 13 PIN-SPRING | 1 | |
| 0993649 | 14 BOLT (M8X1.25X40-MM) | 2 | |
| 1111777 | 15 BUMPER-RUBBER | 4 | |
| 1154360 | 16 RING-RETAINING | 2 | |
| 1313540 | 17 LOCKNUT (M8X1.25-THD) | 20 | |
| 1904375 | 18 WASHER (26X40X2-MM THK) | 4 | |
| 1W0104 | 19 DOWEL-HOLLOW | 20 | |
| 2872499 | 20 NUT (M24X2-THD) | 4 | |
| 3445674 | 21 NUT (M8X1.25-THD) | 2 | |
| 3445675 | 22 NUT (M10X1.5-THD) | 5 | |
| 3682348 | 23 PIN-LOCK | 4 | |
| 3818188 | 24 PLATE | 6 | |
| 3862406 | 25 PULLEY AS | 1 | |
| 3913145 | 26 PLATE | 1 | |
| 3923875 | 27 LOCKPIN | 2 | |
| 3995659 | 28 STUD (M24X3X276-MM) | 2 | |
| 3J1907 | 29 SEAL-O-RING | 2 | |
| 4640409 | 30 LINK AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 4640410 | 31 BELT-CONVEYOR | 1 | |
| 4664190 | 32 PIN-LINKAGE | 2 | |
| 4792012 | 33 SPACER (40X55X25-MM THK) | 2 | |
| 4938988 | 34 PLATE | 2 | |
| 4940556 | 35 STOP AS | 2 | |
| 4946957 | 36 PLATE | 2 | |
| 4946958 | 37 PLATE | 4 | |
| 4946959 | 38 PLATE | 2 | |
| 5084212 | 39 PLATE-MOUNT | 1 | |
| 5205958 | 40 PLATE AS | 2 | |
| 5205959 | 41 PLATE AS | 1 | |
| 5205960 | 42 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 8 | |
| 5205961 | 43 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 5205962 | 44 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 5205963 | 45 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 5205964 | 46 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 5205965 | 47 FLASHING | 2 | |
| 5205966 | 48 FLASHING | 2 | |
| 5207375 | 49 COVER | 2 | |
| 5207376 | 50 COVER | 1 | |
| 5226689 | 51 SHEET AS | 1 | |
| 5226690 | 52 SHEET AS | 1 | |
| 5226691 | 53 PULLEY AS | 1 | |
| 5285018 | 54 IDLER-RETURN | 3 | |
| 5336164 | 55 HOPPER AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 27 | |
| 5336179 | 56 FLASHING | 1 | |
| 5336180 | 57 PLATE | 1 | |
| 5336181 | 58 RUBBER | 1 | |
| 5336183 | 59 FLASHING | 2 | |
| 5336185 | 60 PLATE | 1 | |
| 5336187 | 61 PLATE AS | 1 | |
| 5336188 | 62 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 3 | |
| 5336189 | 63 FLASHING | 1 | |
| 5358947 | 64 BOLT-CARRIAGE (M16X2X55-MM) | 8 | |
| 5721725 | 65 BEARING AS | 2 | |
| 3B8489 | FITTING-GREASE (1/8-27 PTF) | 1 | |
| 8T4171 | BOLT (M6X1X12-MM) | 3 | |
| 5721726 | 66 BEARING AS | 1 | |
| 3B8486 | FITTING-GREASE (1/8-27 PTF) | 1 | |
| 8T4171 | BOLT (M6X1X12-MM) | 6 | |
| 5388740 | 67 FRAME AS-CONVEYOR | 1 | |
| 3864205 | 67A BEARING | 2 | |
| 5388744 | 68 GUARD GP-CONVEYOR | 2 | |
| 3113217 | PAWL | 2 | |
| 3522979 | LATCH AS | 2 | |
| 1H3244 | LOCKWASHER | 4 | |
| 5C2890 | NUT (M6X1-THD) | 4 | |
| 1608499 | NUT (M12X1.5-THD) | 2 | |
| 3260612 | WASHER-TAB | 2 | |
| 5388745 | PROTECTION AS | 1 | |
| 5411678 | 69 ROLLER-GUIDE | 2 | |
| 5411679 | 70 ROLLER | 7 | |
| 5411680 | 71 ROLLER | 6 | |
| 5411681 | 72 ROLLER | 3 | |
| 5414641 | 73 SUPPORT AS | 2 | |
| 5414643 | 74 SUPPORT AS | 2 | |
| 5773003 | 75 FRAME AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 7T1099 | LINK | 21 | |
| 3558941 | NUT-WELD (M16X2-THD) | 8 | |
| 5430015 | 76 PLATE | 1 | |
| 5430016 | 77 PLATE | 1 | |
| 5430657 | 78 PLATE | 1 | |
| 5486909 | 79 PLATE AS (RH) | 1 | |
| 5486910 | 80 PLATE AS (LH) | 1 | |
| 5521656 | 81 PLATE | 1 | |
| 5521658 | 82 PLATE | 1 | |
| 5521661 | 83 PLATE | 2 | |
| 5557666 | 84 FLASHING | 2 | |
| 5621888 | 85 PIN AS | 2 | |
| 5621898 | 86 LINK | 2 | |
| 6V7688 | 87 LOCKNUT (M20X2.5-THD) | 4 | |
| 6V8144 | 88 RING-RETAINING | 2 | |
| 7X0537 | 89 WASHER-HARD (40.5X67X6-MM THK) | 4 | |
| 7X0597 | 90 WASHER-HARD (31X56X4-MM THK) | 2 | |
| 7X7729 | 91 WASHER (11X25X3-MM THK) | 100 | |
| 8T0360 | 92 BOLT (M20X2.5X90-MM) | 4 | |
| 8T0389 | 93 LOCKNUT (M10X1.5-THD) | 12 | |
| 8T3282 | 94 WASHER-HARD (22X35X3.5-MM THK) | 8 | |
| 8T4001 | 95 NUT (M24X3-THD) | 5 | |
| 8T4121 | 96 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 8T4131 | 97 NUT (M20X2.5-THD) | 2 | |
| 8T4132 | 98 NUT (M16X2-THD) | 8 | |
| 8T4136 | 99 BOLT (M10X1.5X25-MM) | 43 | |
| 8T4139 | 100 BOLT (M12X1.75X30-MM) | 36 | |
| 8T4222 | 101 WASHER-PLATED (11X32X2.5-MM THK) | 17 | |
| 8T4223 | 102 WASHER-HARD (13.5X25.5X3-MM THK) | 48 | |
| 8T4224 | 103 WASHER-HARD (8.8X16X2-MM THK) | 40 | |
| 8T8549 | 104 LOCKNUT (M12X1.75-THD) | 4 | |
| 9S4191 | 105 PLUG (9/16-18-THD) | 2 | |
| 9X8257 | 106 WASHER (17.5X30X3.5-MM THK) | 16 | |
| 5721728 | 107 PLATE | 2 |
