System And Components

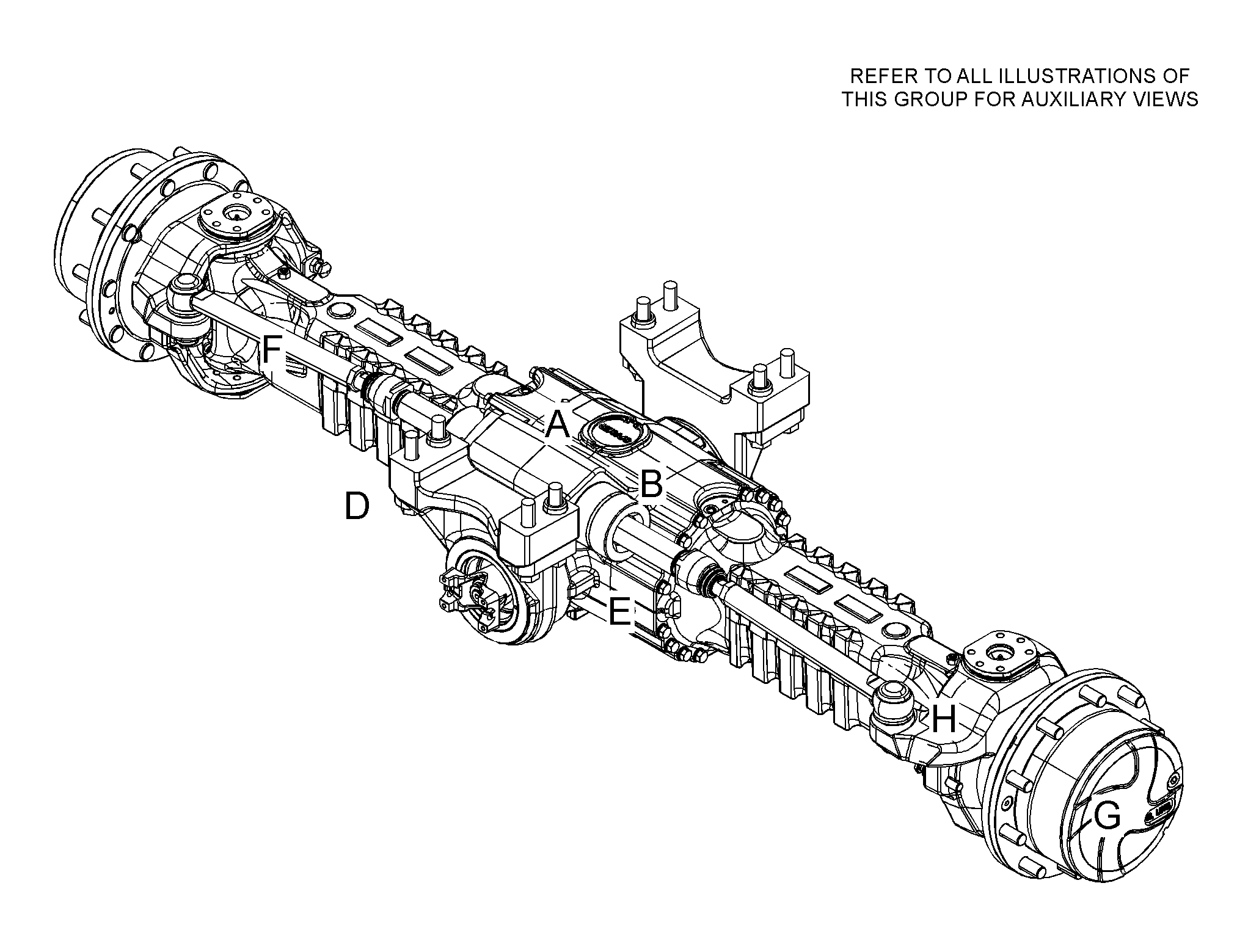

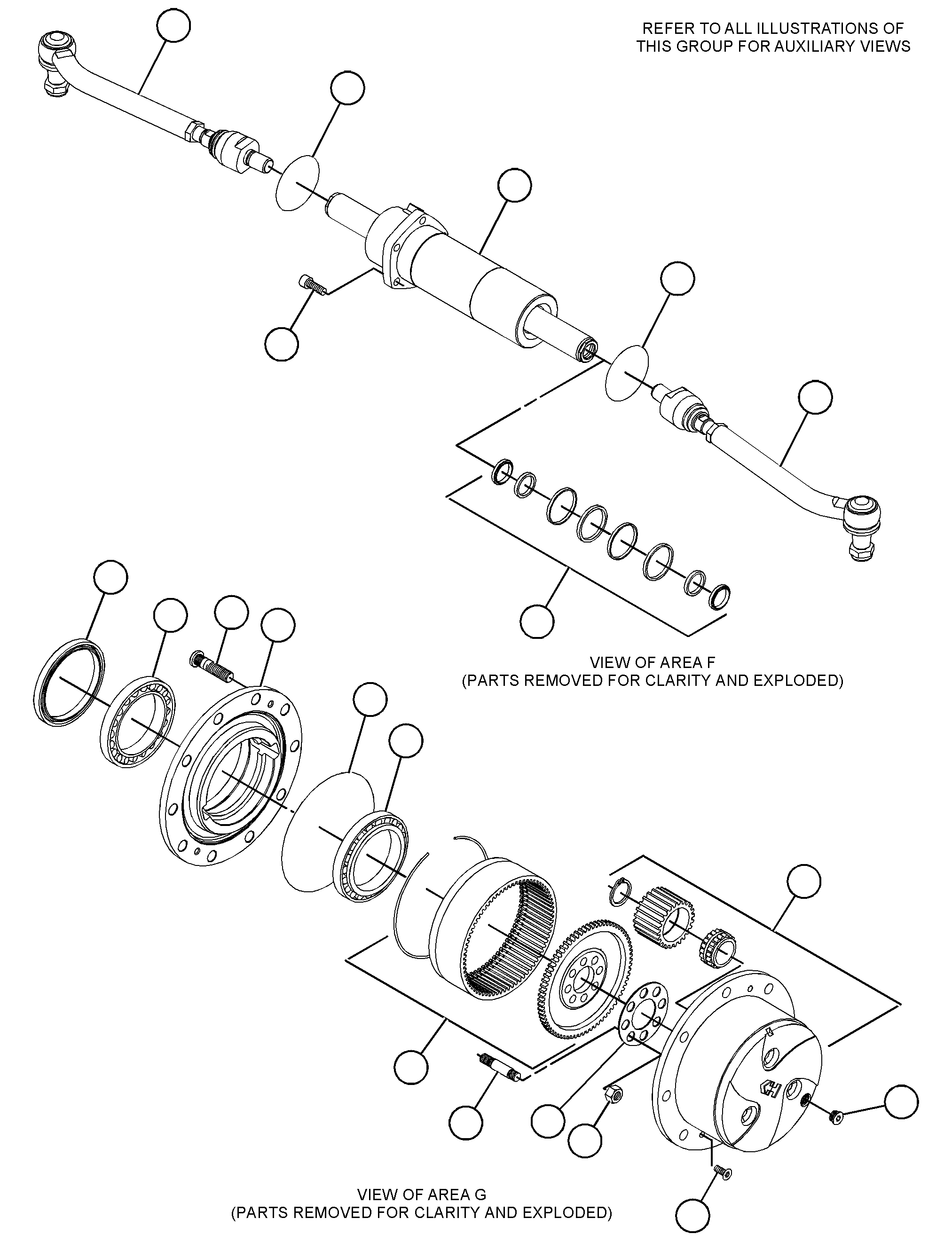

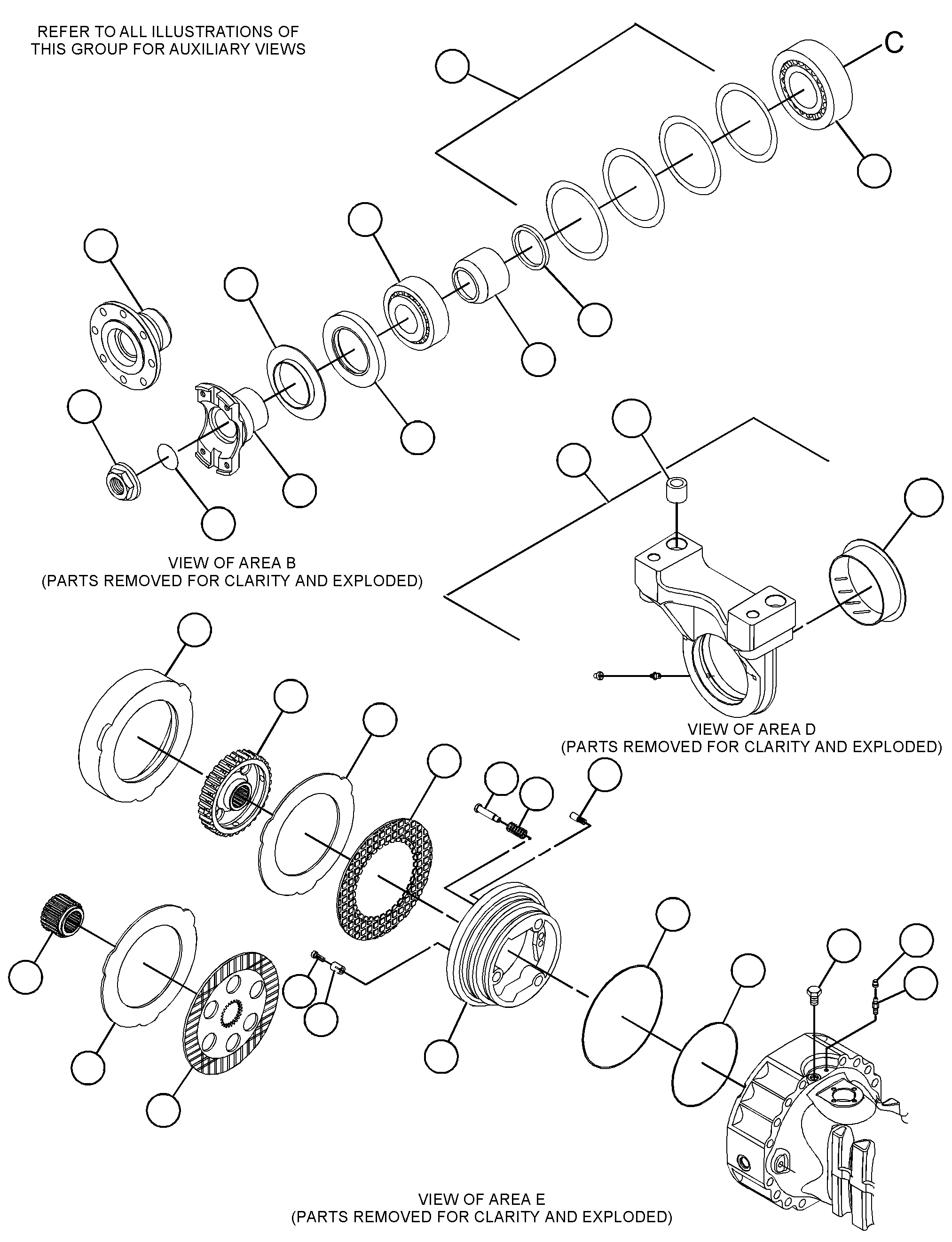

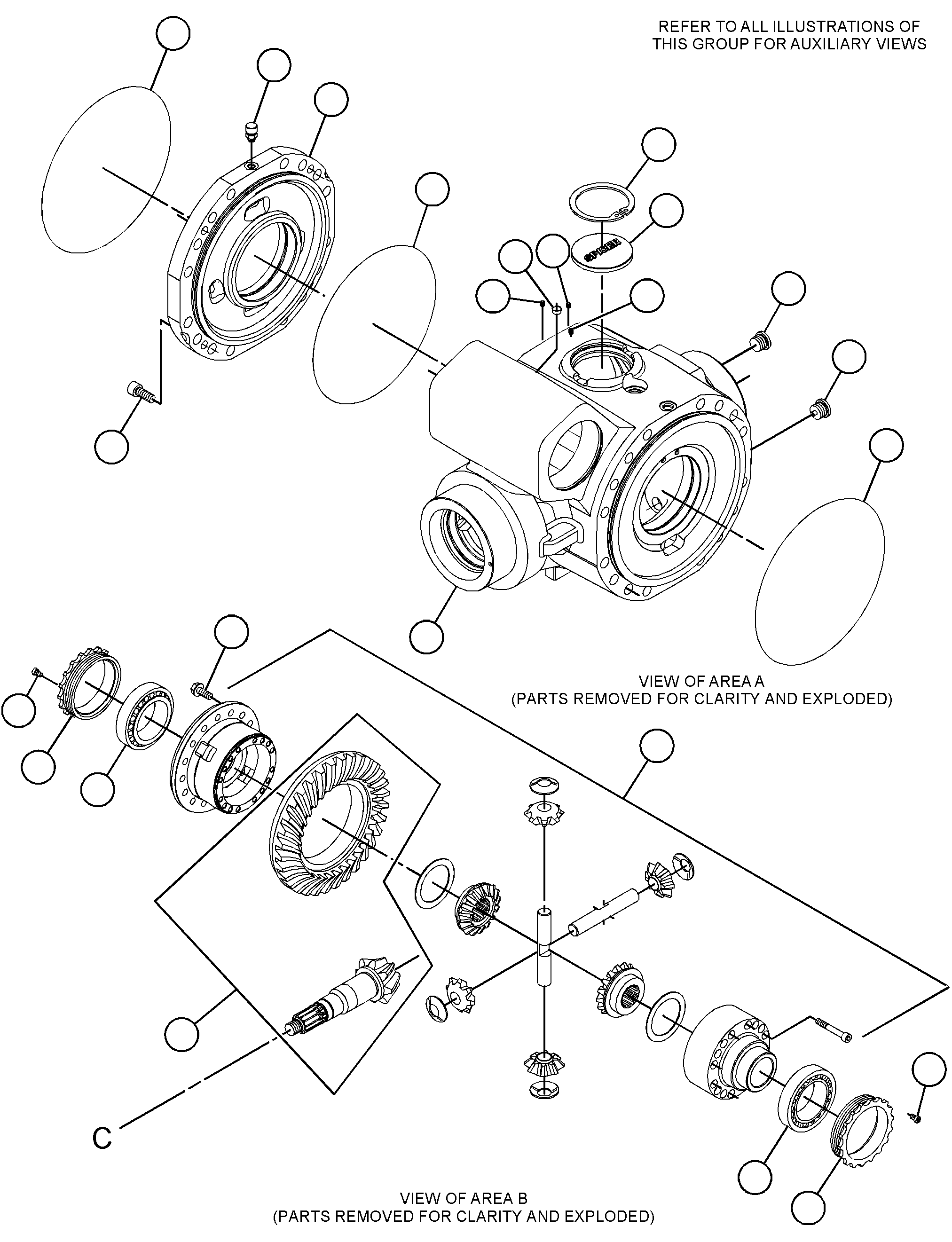

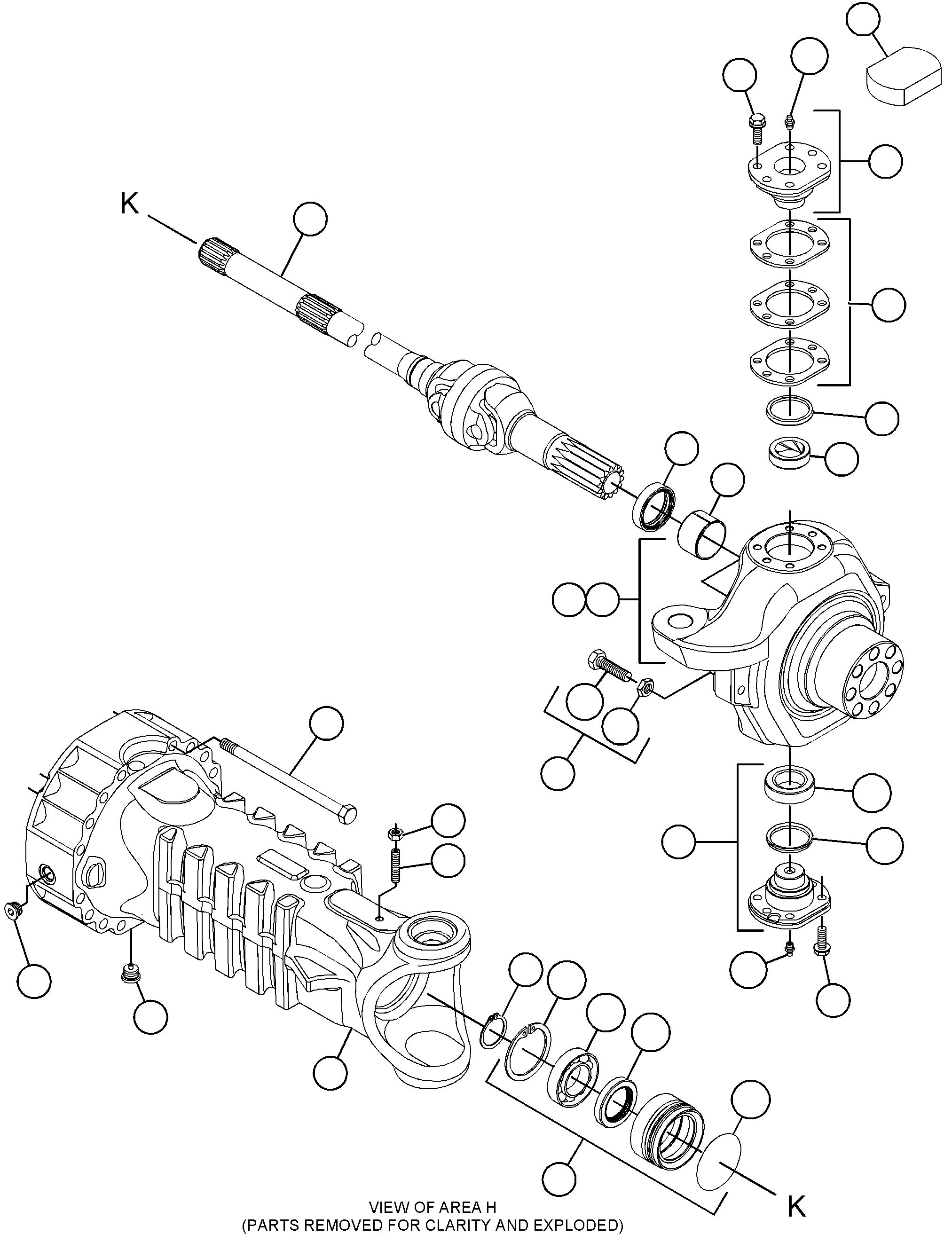

485-9603 AXLE GP-REARS/N MDD1-UP; SXM1-UP; DHW1-UP
Group No: 485-9603
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2997134 | 1 VENT | 1 | |
| 2990941 | 2 COVER | 1 | |
| 2987857 | 3 SEAL-O-RING | 1 | |
| 2990821 | 4 CLIP | 3 | |
| 3853597 | 5 PLUG | 1 | |
| 4992184 | 6 PLUG | 3 | |
| 5541654 | 7 PLUG-MAGNETIC | 3 | |
| 4763987 | 8 HOUSING | 1 | |
| 3056028 | 9 BOLT | 4 | |
| 2981855 | 10 SEAL-O-RING | 2 | |
| 3055428 | 11 PLUG | 1 | |
| 4586143 | 12 BOLT (M5X0.8X10-MM) | 3 | |
| 2987861 | 13 NUT | 1 | |
| 2997162 | 14 PLATE | 1 | |
| 2990826 | 15 BEARING | 1 | |
| 2987863 | 16 SHIM | 1 | |
| 2987864 | SHIM | 1 | |
| 2987865 | SHIM | 1 | |
| 2987866 | SHIM | 1 | |
| 4763988 | 20 SET-BEVEL GEAR | 1 | |
| 2990825 | 21 BEARING | 1 | |
| 3921596 | 22 KIT-SHIM PACK (INCLUDES 14-SHIMS) | 1 | |
| 3712503 | 23 SPACER | 1 | |
| 4707965 | 24 SEAL | 1 | |
| 2997163 | 25 FLANGE | 1 | |
| 4755891 | 26 SEAL-O-RING | 1 | |
| 8U4984 | 27 BEARING-ROLLER | 2 | |
| 2981872 | 28 NUT-RING | 2 | |
| 3043232 | 29 BOLT | 2 | |
| 2981865 | 30 BOLT | 16 | |
| 4731858 | 31 KIT-DIFFERENTIAL | 1 | |
| 5694196 | 32 CASE-AXLE | 2 | |
| 3043230 | 33 BOLT | 2 | |
| 2981853 | 34 NUT | 2 | |
| 3498587 | 35 BOLT | 32 | |
| 2990827 | 36 CLIP | 2 | |
| 2990236 | 41 BEARING GP-AXLE | 2 | |
| 2981877 | 41A SEAL-O-RING | 1 | |
| 2990235 | 41B BEARING | 1 | |
| 2990520 | 41C SEAL | 1 | |
| 2990821 | 41D CLIP | 1 | |
| 4771513 | 42 UNIVERSAL JOINT | 2 | |
| 4763025 | 43 SEAL | 2 | |
| 2990227 | 44 BUSHING | 2 | |
| 4586851 | 45 BOLT | 24 | |
| 2990228 | 47 PIN | 2 | |
| 2981860 | 48 SHIM (0.2-MM THK) | 2 | |
| 2981861 | SHIM (0.2-MM THK) | 2 | |
| 2981862 | SHIM (0.5-MM THK) | 2 | |
| 3038572 | 51 SEAL-DUST | 2 | |
| 3038570 | 52 RACE-BEARING | 2 | |
| 3038571 | 54 PIN AS | 2 | |
| 2981857 | 54A FITTING-GREASE | 1 | |
| 2990223 | 54B BEARING | 1 | |
| 3038572 | 54C SEAL-DUST | 1 | |
| 4771735 | 59 SEAL | 2 | |
| 2990828 | 60 BEARING | 4 | |
| 2997168 | 61 HUB | 2 | |
| 2997169 | 62 PLATE-LOCK | 2 | |
| 3853599 | 63 PLUG AS | 2 | |
| 2988300 | 64 BOLT | 4 | |
| 2988295 | 65 NUT | 16 | |
| 2988296 | 66 STUD | 16 | |
| 2988297 | 67 SEAL-O-RING | 2 | |
| 2987274 | 68 STUD | 20 | |
| 3055430 | 69 KIT-GEAR | 2 | |
| 2990246 | CLIP | 4 | |
| 2990247 | GEAR-PLANETARY | 4 | |
| 2990248 | 69A BEARING | 4 | |
| 3052085 | CARRIER | 1 | |
| 4773249 | 70 CASE AS-STEERING | 1 | |
| 2990227 | 70A BUSHING | 1 | |
| 4772590 | 71 CASE AS-STEERING | 1 | |
| 2990227 | 71A BUSHING | 1 | |
| 3055426 | 72 KIT-BOLT | 4 | |
| 2981863 | 72A BOLT | 1 | |
| 2987868 | 72B NUT | 1 | |
| 3991141 | 73 SUPPORT AS | 2 | |
| 2990243 | CLIP | 1 | |
| 2990245 | SUPPORT | 1 | |
| 3991139 | GEAR-RING | 1 | |
| 2997137 | 74 COVER | 2 | |
| 4979640 | 75 SEAL | 2 | |
| 4979641 | 76 SEAL | 2 | |
| 3991159 | 77 PISTON | 2 | |
| 2990241 | 78 SPRING | 6 | |
| 3498601 | 79 BOLT | 6 | |
| 2990240 | 80 SPRING | 6 | |
| 3991143 | 81 BOLT | 6 | |
| 5026130 | 82 DISC-BRAKE | 6 | |
| 2990812 | 83 DISC-BRAKE | 6 | |
| 2990811 | 84 BUSHING | 2 | |
| 3498602 | 85 SPACER | 2 | |
| 2987873 | 86 BOLT | 2 | |
| 2997103 | 87 PLUG | 2 | |
| 2981878 | 88 KIT-FASTENER | 2 | |
| 3502524 | 89 BOLT-SPECIAL | 2 | |
| 3052050 | 90 CYLINDER GP-STEERING | 1 | |
| 2987871 | 91 SEAL-O-RING | 2 | |
| 4935897 | 92 TIE ROD AS | 2 | |
| 3577672 | NUT-TIE ROD | 1 | |
| 2987872 | 93 BOLT | 5 | |
| 3044561 | 94 KIT-SEAL | 1 | |
| 2990802 | 95 SUPPORT AS | 2 | |
| 2990221 | 95A BUSHING-THRUST | 1 | |
| 2990800 | 95B BUSHING | 2 | |
| 2997103 | PLUG | 1 | |
| 2981857 | FITTING-GREASE | 1 |
