System And Components

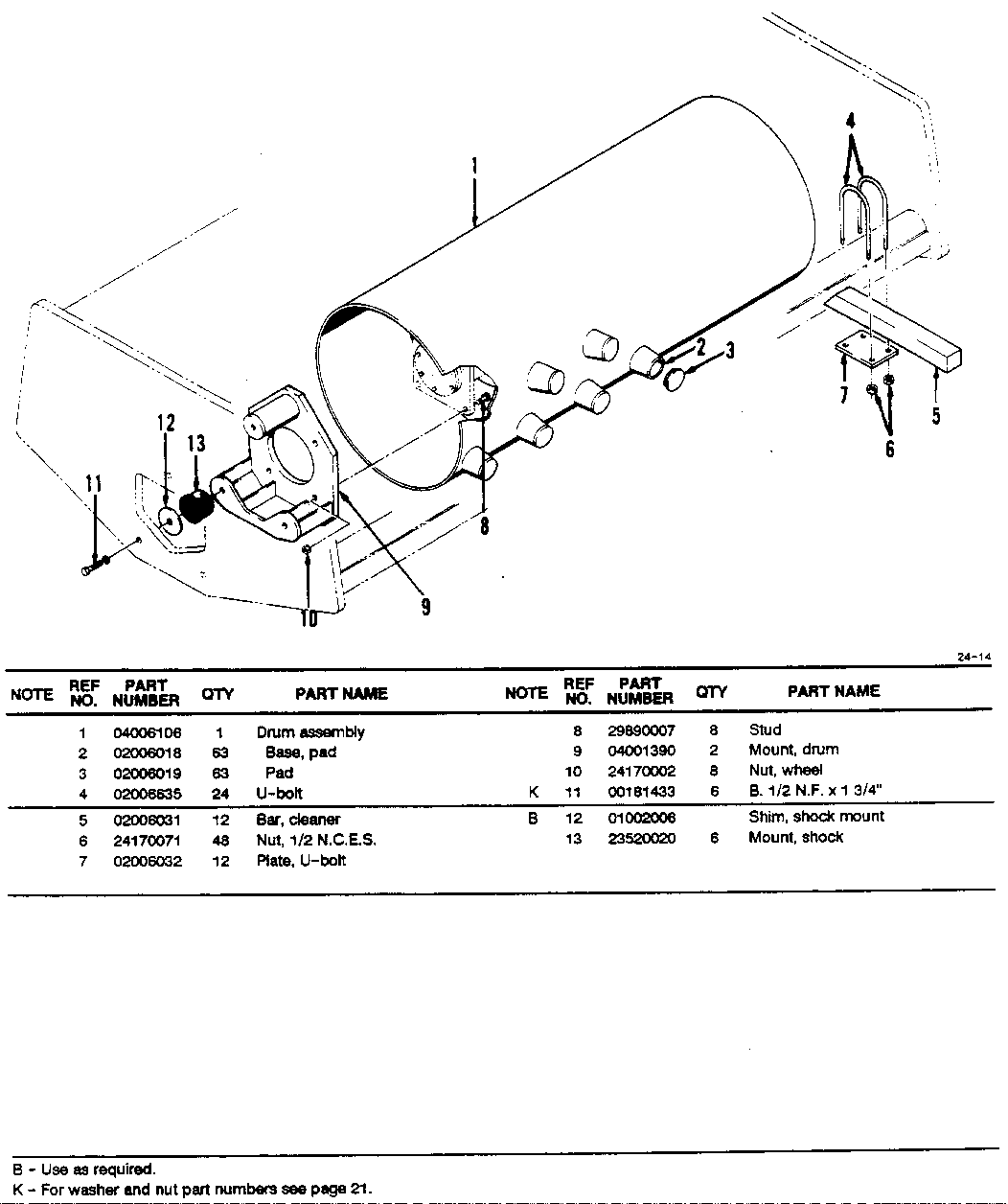

PADDED DRUM ASSEMBLY
Group No: PADDED
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 04006106 | 1 DRUM ASSEMBLY | 1 | |
| 02006018 | 2 BASE, PAD | 63 | |
| 02006019 | 3 PAD | 63 | |
| 02006635 | 4 U-BOLT | 24 | |
| 02006031 | 5 BAR, CLEANER | 12 | |
| 24170071 | 6 NUT, 1/2 N.C.E.S. | 48 | |
| 02006032 | 7 PLATE, U-BOLT | 12 | |
| 29890007 | 8 STUD | 8 | |
| 04001390 | 9 MOUNT, DRUM | 2 | |
| 24170002 | 10 NUT, WHEEL | 8 | |
| 00181433 | 11 B. 1/2 N.F. X 1 3/4" | 6 | |
| 01002006 | 12 SHIM, SHOCK MOUNT | ||
| 23520020 | 13 MOUNT, SHOCK | 6 |
