System And Components

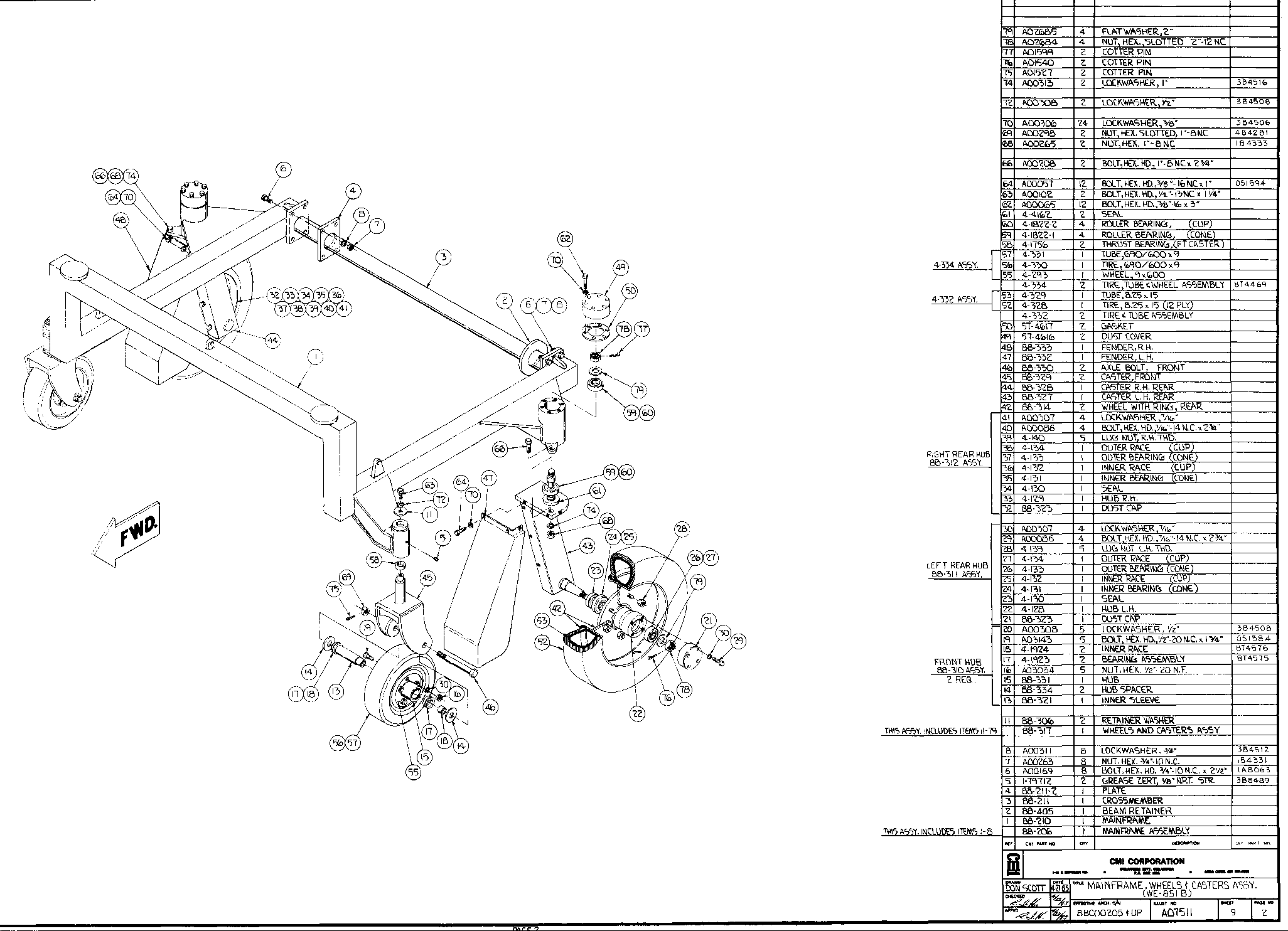

88206 MAINFRAME, WHEELS & CASTERS ASSY.8BC00205 & UP
Group No: 88206
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 88206 | MAINFRAME ASSEMBLY | 1 | |
| 88210 | 1 MAINFRAME | 1 | |
| 88405 | 2 BEAM RETAINER | 1 | |
| 88211 | 3 CROSSMEMBER | 1 | |
| 882112 | 4 PLATE | 1 | |
| 3B8489 | 5 GREASE ZERT, 1/8" N.P.T. STR. | 2 | |
| 1A8063 | 6 BOLT, HEX. HD. 3/4"-10 N.C. X 2 1/2" | 8 | |
| 1B4331 | 7 NUT, HEX. 3/4"-10 N.C. | 8 | |
| 3B4512 | 8 LOCKWASHER, 3/4" | 8 | |
| 88317 | WHEELS AND CASTERS ASSY. | 1 | |
| 88306 | 11 RETAINER WASHER | 2 | |
| 88310 | FRONT HUB ASSY. 2 REQ. | ||
| 88321 | 13 INNER SLEEVE | 1 | |
| 88334 | 14 HUB SPACER | 2 | |
| 88331 | 15 HUB | 1 | |
| A03034 | 16 NUT, HEX. 1/2"-20 N.F. | 5 | |
| 8T4575 | 17 BEARING ASSEMBLY | 2 | |
| 8T4576 | 18 INNER RACE | 2 | |
| 0S1584 | 19 BOLT, HEX. HD., 1/2"-20 N.C. X 1 3/4" | 5 | |
| 3B4508 | 20 LOCKWASHER, 1/2" | 5 | |
| 88311 | LEFT REAR HUB ASSY. | ||
| 88323 | 21 DUST CAP | 1 | |
| 4128 | 22 HUB L.H. | 1 | |
| 4130 | 23 SEAL | 1 | |
| 4131 | 24 INNER BEARING (CONE) | 1 | |
| 4132 | 25 INNER RACE (CUP) | 1 | |
| 4133 | 26 OUTER BEARING (CONE) | 1 | |
| 4134 | 27 OUTER RACE (CUP) | 1 | |
| 4139 | 28 LUG NUT L.H. THD. | 5 | |
| A00086 | 29 BOLT, HEX. HD., 7/16"-14 N.C. X 2 3/4" | 4 | |
| A00307 | 30 LOCKWASHER, 7/16" | 4 | |
| 88312 | RIGHT REAR HUB ASSY. | ||
| 88323 | 32 DUST CAP | 1 | |
| 4129 | 33 HUB R.H. | 1 | |
| 4130 | 34 SEAL | 1 | |
| 4131 | 35 INNER BEARING (CONE) | 1 | |
| 4132 | 36 INNER RACE (CUP) | 1 | |
| 4133 | 37 OUTER BEARING (CONE) | 1 | |
| 4134 | 38 OUTER RACE (CUP) | 1 | |
| 4140 | 39 LUG NUT, R.H. THD. | 5 | |
| A00086 | 40 BOLT, HEX. HD., 7/16"-14 N.C. X 2 3/4" | 4 | |
| A00307 | 41 LOCKWASHER, 7/16" | 4 | |
| 88314 | 42 WHEEL WITH RING, REAR | 2 | |
| 88327 | 43 CASTER L.H. REAR | 1 | |
| 88328 | 44 CASTER L.H. REAR | 1 | |
| 88329 | 45 CASTER, FRONT | 2 | |
| 88330 | 46 AXLE BOLT, FRONT | 2 | |
| 88332 | 47 FENDER, L.H. | 1 | |
| 88333 | 48 FENDER, R.H. | 1 | |
| 574616 | 49 DUST COVER | 2 | |
| 574617 | 50 GASKET | 2 | |
| 4332 | TIRE & TUBE ASSEMBLY | 2 | |
| 4328 | 52 TIRE, 8.25 X 15 (12 PLY) | 1 | |
| 4329 | 53 TUBE, 8.25 X 15 | 1 | |
| 8T4469 | TIRE, TUBE & WHEEL ASSEMBLY | 2 | |
| 4293 | 55 WHEEL, 9 X 600 | 1 | |
| 4330 | 56 TIRE, 690/600 X 9 | 1 | |
| 4331 | 57 TUBE, 690/600 X 9 | 1 | |
| 41756 | 58 THRUST BEARING, (FT CASTER) | 2 | |
| 418221 | 59 ROLLER BEARING, (CONE) | 4 | |
| 418222 | 60 ROLLER BEARING, (CUP) | 4 | |
| 44162 | 61 SEAL | 2 | |
| A00065 | 62 BOLT, HEX. HD., 3/8"-16 X 3" | 12 | |
| A00102 | 63 BOLT, HEX. HD., 1/2"-13 NC X 1 1/4" | 2 | |
| 0S1594 | 64 BOLT, HEX. HD., 3/8"-16 NC X 1" | 12 | |
| A00208 | 66 BOLT, HEX. HD., 1"-8 NC X 2 3/4" | 2 | |
| 1B4333 | 68 NUT, HEX. 1"-8 NC | 2 | |
| 4B4281 | 69 NUT, HEX. SLOTTED, 1"-8 NC | 2 | |
| 3B4506 | 70 LOCKWASHER, 3/8" | 24 | |
| 3B4508 | 72 LOCKWASHER, 1/2" | 2 | |
| 3B4516 | 74 LOCKWASHER, 1" | 2 | |
| A01527 | 75 COTTER PIN | 2 | |
| A01540 | 76 COTTER PIN | 2 | |
| A01599 | 77 COTTER PIN | 2 | |
| A02684 | 78 NUT, HEX., SLOTTED 2"-12 NC | 4 | |
| A02685 | 79 FLATWASHER, 2" | 4 |
