System And Components

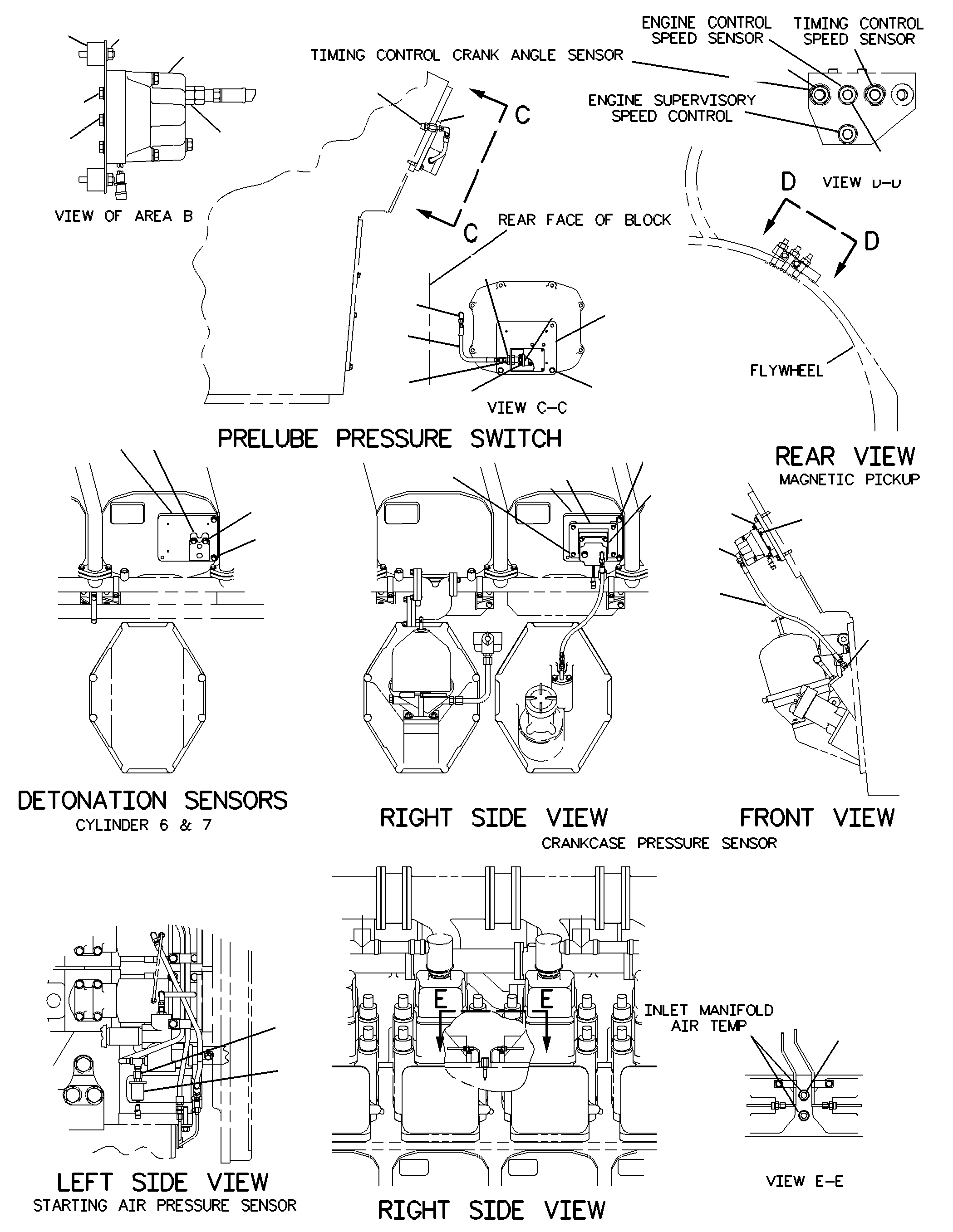

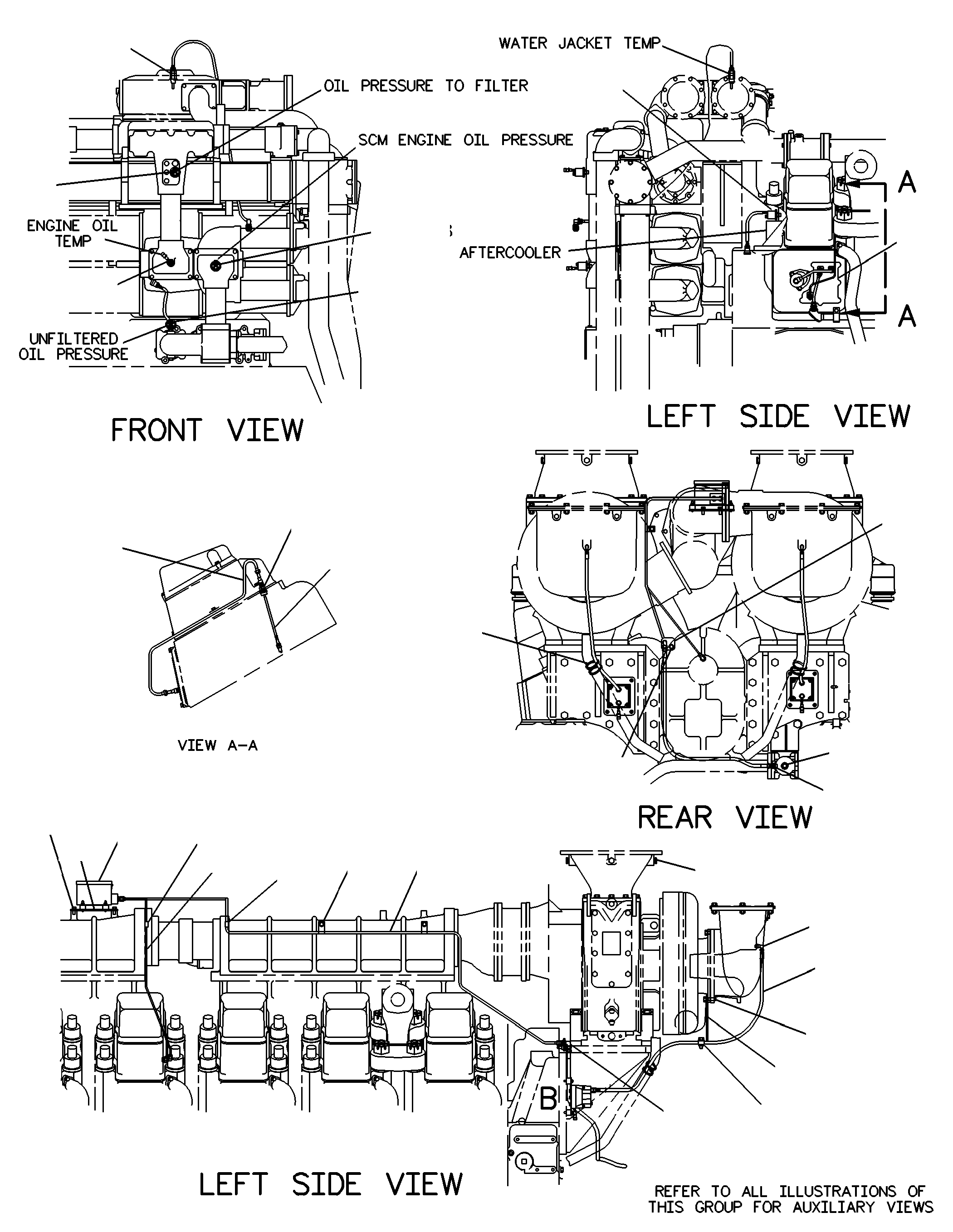

4P-9972 SENSOR & MOUNTING GP (CHG -00)REPLACED BY 100-6794
Group No: 4P-9972
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4P5707 | 1 SENSOR GP | 1 | |
| 9X6633 | 2 ADAPTER-O-RING | 1 | |
| 8L2786 | 3 SEAL-O-RING | 2 | |
| 7E0454 | 4 SENSOR GP-PRESSURE | 3 | |
| 7X1602 | 5 SENSOR AS-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1386 | SLEEVE | 1 | |
| 6V5049 | 6 SEAL-O-RING | 5 | |
| 6V5048 | 7 SEAL-O-RING | 1 | |
| 6V8647 | 8 CONNECTOR | 1 | |
| 8T0788 | 9 ELBOW | 1 | |
| 8T6663 | 10 ADAPTER-PORT | 1 | |
| 3J7354 | 11 SEAL-O-RING | 1 | |
| 7X1043 | 12 SENSOR GP-TEMPERATURE | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 7X6354 | 13 CONTROL GP-ENGINE MONITORING | 12 | |
| 3D2824 | 14 SEAL-O-RING | 12 | |
| 7E2948 | 15 WIRE AS-SENSOR | 12 | |
| 3E6116 | 16 CONTROL GP-ENGINE ELECTRONIC | 12 | |
| 0689941 | 17 WIRE-TIE | 4 | |
| 0S1591 | 18 BOLT (3/8-16X1.5-IN) | 1 | |
| 5M2894 | 19 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 7W9094 | 20 SPACER (11X20X9-MM THK) | 1 | |
| 4P2087 | 21 PLATE | 1 | |
| 7D8784 | 22 HOSE AS | 1 | |
| 2R6806 | 23 CONNECTOR | 4 | |
| 9W0532 | 24 SENSOR GP-TEMPERATURE | 1 | |
| 0S1594 | 25 BOLT (3/8-16X1-IN) | 4 | |
| 3E0166 | 26 CONTROL GP-ENGINE MONITORING | 1 | |
| 2B2404 | 27 CLIP | 1 | |
| 0S1590 | 28 BOLT (3/8-16X2-IN) | 4 | |
| 7M2220 | 29 CLIP | 3 | |
| 4P2085 | 30 TUBE AS | 1 | |
| 4P2086 | 31 TUBE AS | 1 | |
| 0307946 | 32 ELBOW | 1 | |
| 3P1932 | 33 ADAPTER | 1 | |
| 3N8278 | 34 ADAPTER-SENSOR | 2 | |
| 7C0244 | 35 THERMOCOUPLE | 2 | |
| 7J4026 | 36 ELBOW | 2 | |
| 5T4375 | 37 HOSE AS | 2 | |
| 0S1587 | 38 BOLT (1/2-13X1.75-IN) | 2 | |
| 5P8245 | 39 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 2W8739 | 40 BRACKET | 2 | |
| 5K3294 | 41 CLIP | 2 | |
| 0S1595 | 42 BOLT (1/2-13X1.25-IN) | 2 | |
| 1F7958 | 43 NUT-FULL (1/2-13-THD) | 2 | |
| 2P7215 | 44 ELBOW | 1 | |
| 2P1279 | 45 LOCKNUT (9/16-18-THD) | 1 | |
| 7E3160 | 46 PLATE-MOUNTING | 1 | |
| 3N1968 | 47 MOUNT-FLEXIBLE | 12 | |
| 9S8750 | 48 NUT-FULL (1/4-20-THD) | 12 | |
| 5P0537 | 49 WASHER-HARD (7.2X14.5X2-MM THK) | 21 | |
| 9X0422 | 50 CONTROL GP-ENGINE MONITORING | 2 | |
| 2A0762 | 51 BOLT (1/4-20X0.625-IN) | 9 | |
| 9Y9970 | 52 PLATE | 3 | |
| 3J7352 | 53 CONNECTOR | 3 | |
| 3J7354 | 54 SEAL-O-RING | 4 | |
| 9M4584 | 55 CONNECTOR | 1 | |
| 6V4589 | 56 SEAL-O-RING | 1 | |
| 5P5006 | 57 REDUCER-FLARED | 1 | |
| 7K9197 | 58 ELBOW | 1 | |
| 2W7249 | 59 HOSE AS | 1 | |
| 9M7357 | 60 COUPLING AS | 1 | |
| 7J8744 | 61 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 7C0727 | 62 PLATE | 4 | |
| 4S6399 | 63 CONNECTOR | 1 | |
| 4B1229 | 64 SCREW (10-24X12.7-MM) | 4 | |
| 6V7699 | 65 WASHER-HARD (5.5X13X1.6-MM THK) | 4 | |
| 3N1400 | 66 SWITCH AS-PRESSURE | 1 | |
| 0S1590 | 67 BOLT (3/8-16X2-IN) | 12 | |
| 5M2894 | 68 WASHER-HARD (10.2X18.5X2.5-MM THK) | 13 | |
| 9X4836 | 69 SENSOR GP-DETONATION | 2 | |
| 0307946 | 70 ELBOW | 1 | |
| 7C9897 | 71 HOSE AS | 1 | |
| 9X0432 | 72 CONTROL GP-ENGINE MONITORING | 1 | |
| 8L4171 | 73 SENSOR GP-SPEED (ENGINE) | 3 | |
| 5P8247 | 74 WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 6T4361 | 75 SENSOR GP-SPEED | 1 | |
| 6V9601 | 76 ADAPTER | 1 | |
| 7E0452 | 77 SENSOR GP-PRESSURE | 1 | |
| 9W0532 | 78 SENSOR GP-TEMPERATURE | 2 | |
| 8L2786 | 79 SEAL-O-RING | 2 |
