System And Components

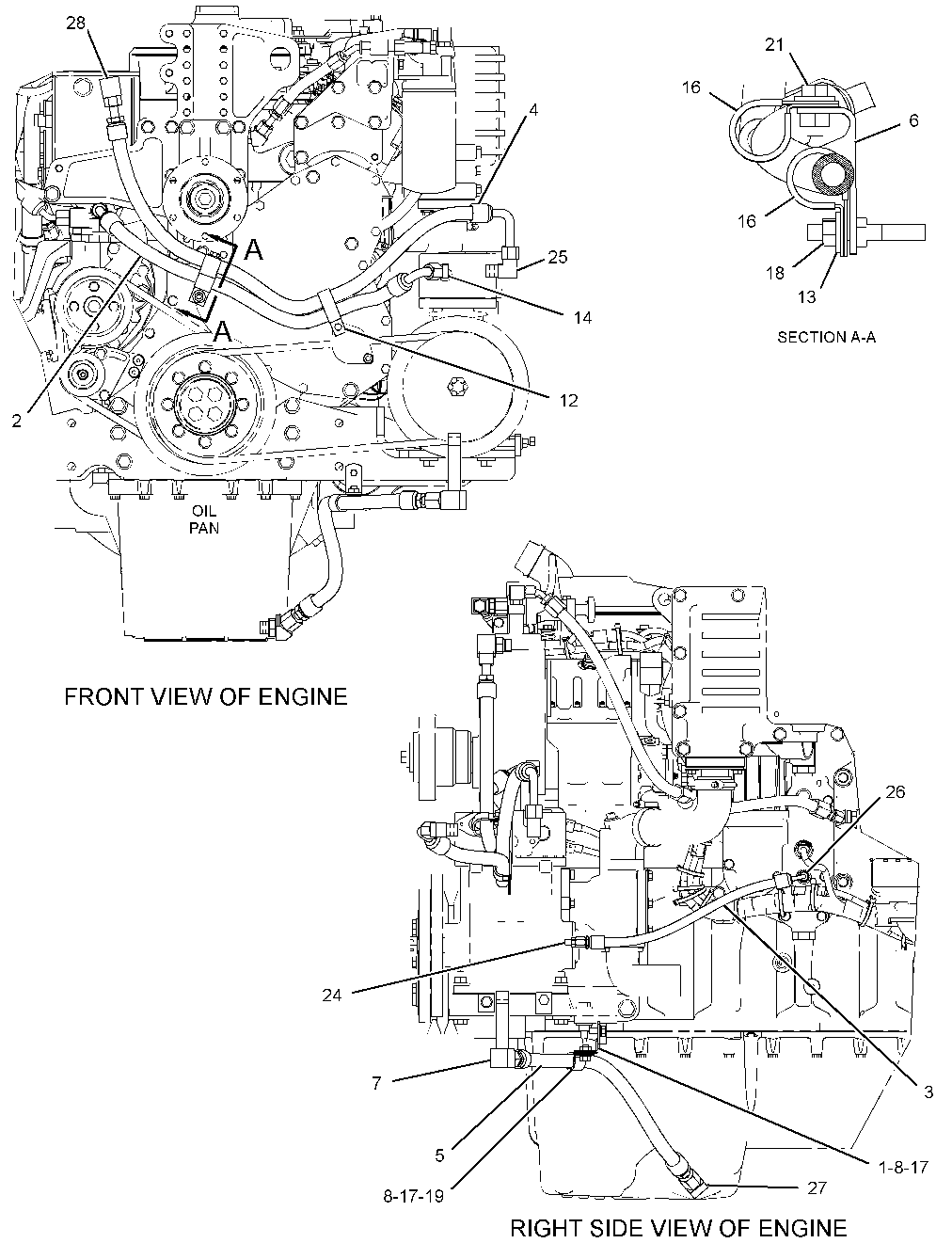

303-2315 LINES GP-AIR COMPRESSORFOR USE WITH 310-1967, FRONT SUMP PAN
Group No: 303-2315
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2088102 | 1 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 7T2035 | ANGLE | 1 | |
| 3032344 | 2 HOSE AS | 1 | |
| 3032362 | 3 HOSE AS | 1 | |
| 3035864 | 4 HOSE AS | 1 | |
| 3035865 | 5 HOSE AS | 1 | |
| 3325695 | 6 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 0316742 | 7 ELBOW | 1 | |
| 0S0509 | 8 BOLT (3/8-16X0.75-IN) | 2 | |
| 3E4321 | 12 CLIP (LOOP) | 1 | |
| 3E4352 | 13 WASHER-HARD (8.8X20.5X2.5-MM THK) | 2 | |
| 3E7449 | 14 ELBOW | 1 | |
| 4S1962 | 16 CLIP (LOOP) | 2 | |
| 5M2894 | 17 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 5P7970 | 18 NUT (M8X1.25-THD) | 1 | |
| 6D4244 | 19 CLIP (LOOP) | 1 | |
| 6V5217 | 21 BOLT (M8X1.25X20-MM) | 1 | |
| 8L6557 | 24 CONNECTOR | 1 | |
| 3893737 | 25 ELBOW AS | 1 | |
| 2T1922 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3603667 | 26 ADAPTER AS | 1 | |
| 2P1314 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3574615 | 27 ELBOW AS | 1 | |
| 1412375 | ELBOW | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196225 | 28 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 |
