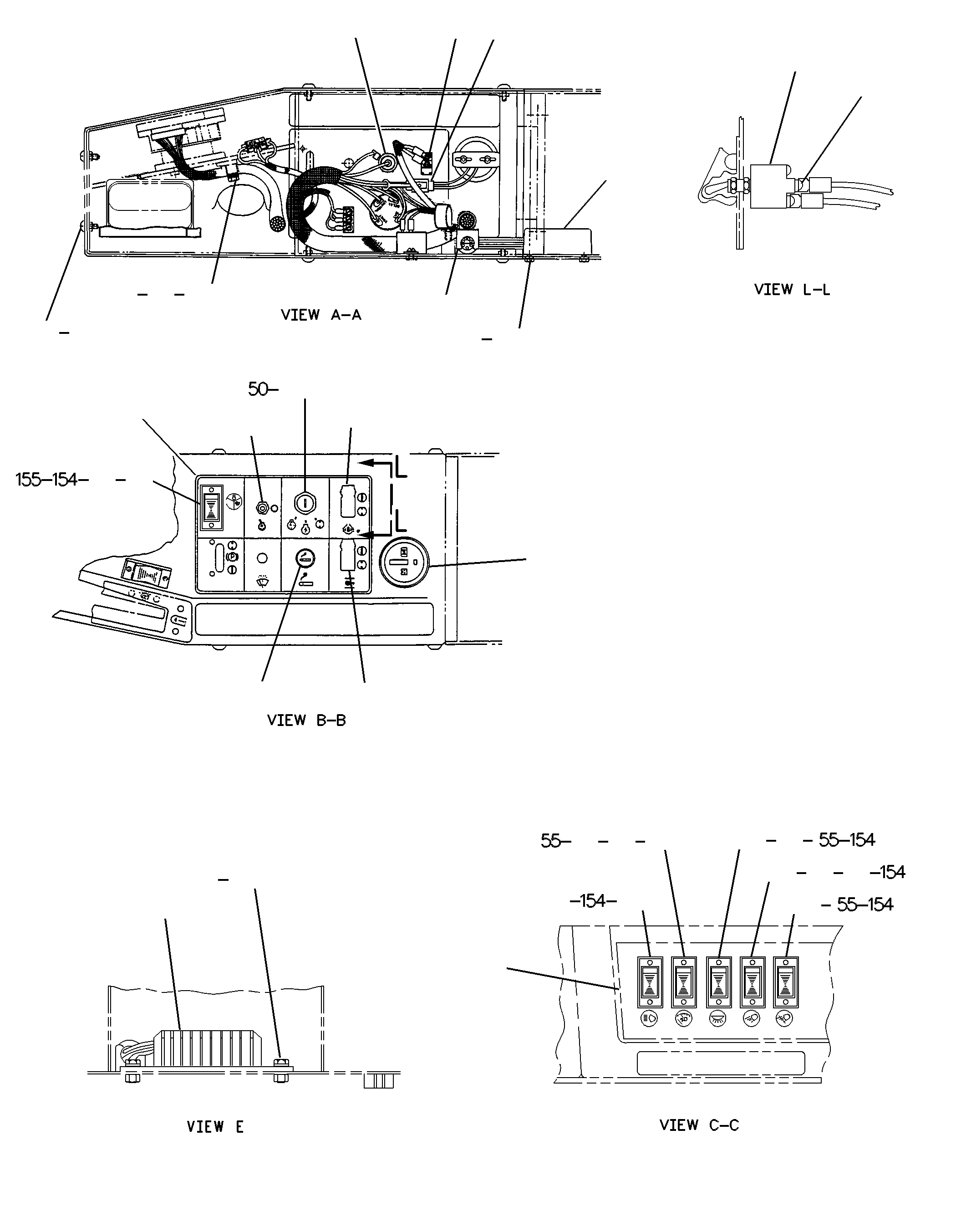

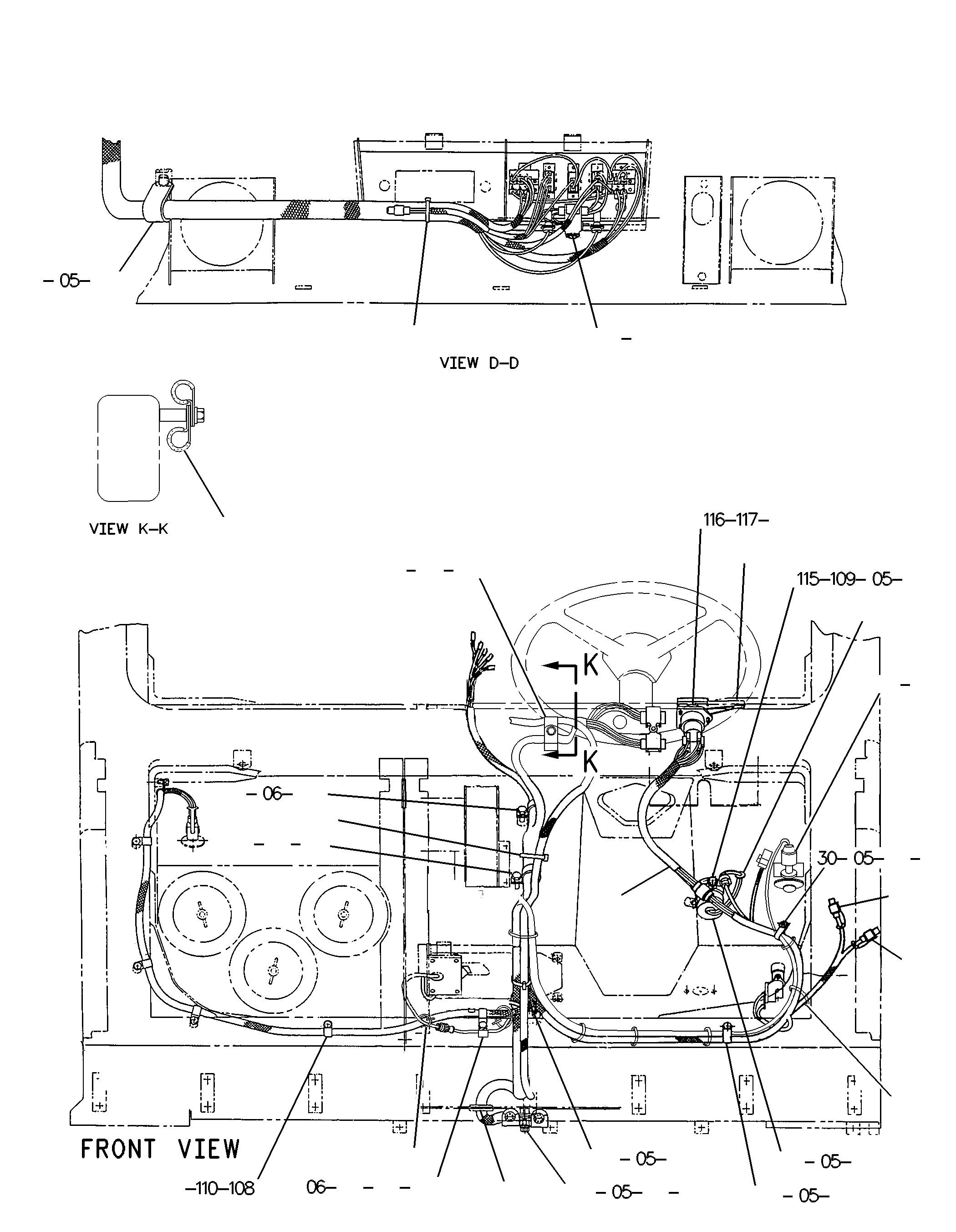

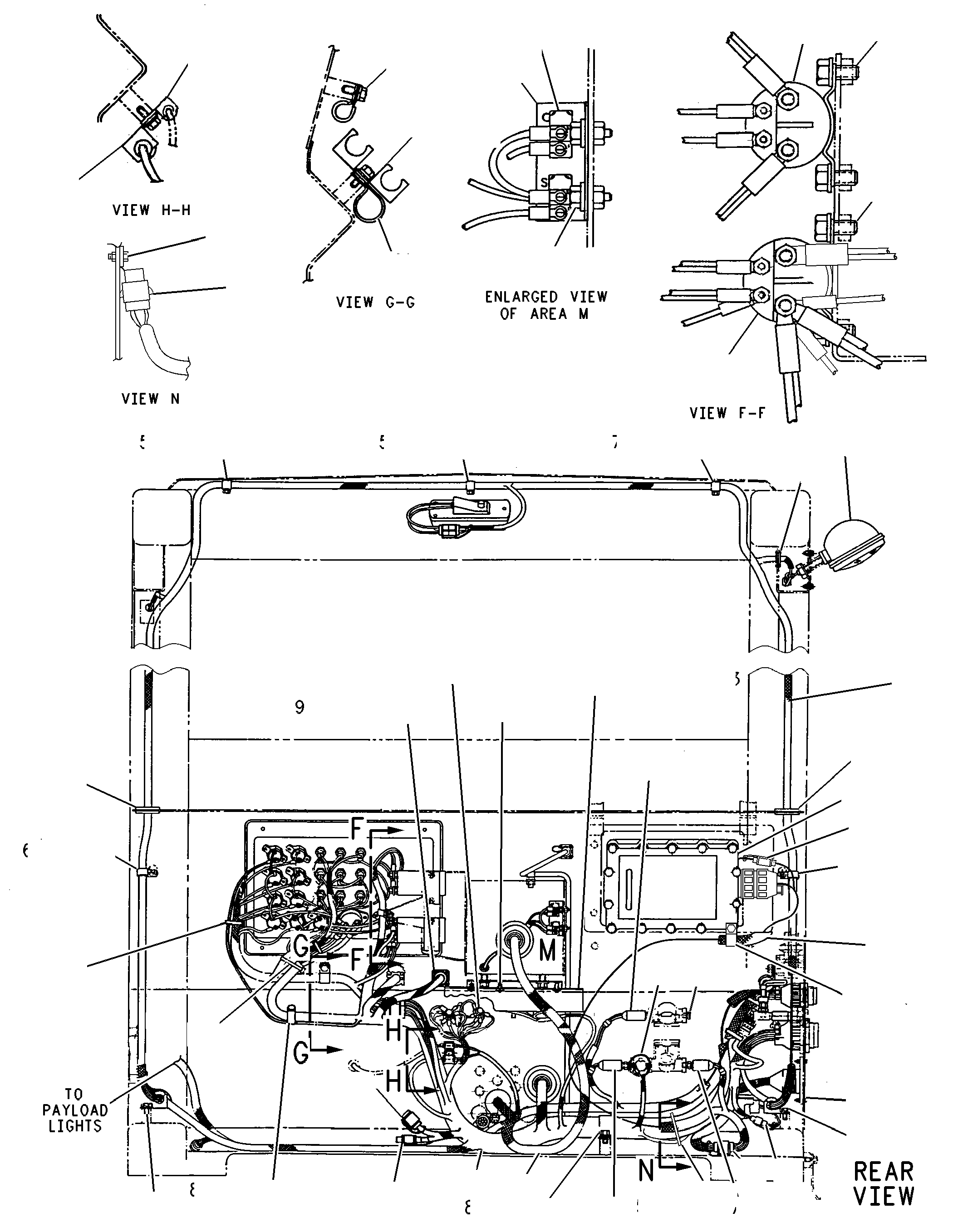

115-6473 WIRING GP-CAB -VIMSS/N 6HK700-UP

Group No: 115-6473
Part NumberPart NameQty
8M27701 CLIP (LOOP)2
5M30622 BOLT (3/8-16X0.75-IN)3
8T48963 WASHER-HARD (10.2X18.5X2.5-MM THK)3
3T30484 CLIP AS2
7N97375 HOUSING-RECEPTACLE (14-GA TO 18-GA)1
9G36956 PLUG-SEAL1
11564827 PANEL GP-CIRCUIT BREAKER (VIMS)1
9X20428 SCREW-TRUSS HEAD (M6X1X12-MM)4
4B12389 SCREW-MACHINE (10-32X15.88-MM)3
2G113610 GROMMET1
3T304711 CLIP AS1
3S866512 CLIP (LOOP)2
108035813 FLASHER AS (24-VOLT)1
8L652114 BOLT (10-32X0.5-IN)2
2H185515 SWITCH AS-FOOT (HEADLIGHTS)1
9B7233LOCKWASHER3
6V8362SCREW-MACHINE (8-32X0.31-IN)3
4B132016 SCREW-MACHINE (1/4-20X0.625-IN)2
8T420517 WASHER-HARD (7.2X14.5X2-MM THK)13
141574618 SENSOR GP-PRESSURE (BRAKE AIR)1
116783319 PANEL AS1
7N841920 TERMINAL-BLADE3
5P582421 HOLDER1
5P545422 ASHTRAY1
5V299823 PLATE1
9D406824 SWITCH-PUSH BUTTON (DOME LIGHT)1
7N587625 LAMP (24-VOLT, 0.2-AMPERE)(OVERHEAD CONSOLE)2
3T343726 RESISTOR AS-DIMMER1
3T3272CLIP1
5P6008TUBE-HEAT SHRINK (6.35-MM DIA)(.1M)
3T3270WIRE AS (16-GA)1
5S734927 BOLT (1/4-20X0.5-IN)1
3T005028 CLIP1
5P564429 TRIM (.2M)
3T304530 CLIP AS1
4M528131 BOLT (1/4-20X0.75-IN)2
3S209332 STRAP-CABLE5
8T422433 WASHER-HARD (8.8X16X2-MM THK)4
115744534 HARNESS AS-PANEL1
6V818535 NUT (1/4-20-THD)4
3T304636 CLIP AS1
6T399137 SWITCH AS-ROCKER (BACK UP LIGHTS)1
3L8187LOCKWASHER3
6V8374SCREW-MACHINE (6-32X0.25-IN)3
6T632938 BEZEL1
6V892739 BOLT-SOCKET HEAD (6-32X0.5-IN)2
9G915040 CLIP1
9F812541 LOCKWASHER5
5P785442 CLIP (LOOP)1
6V818943 NUT (5/16-18-THD)2
7X639944 LAMP GP-DOME (CAB)1
5T443445 VALVE AS-SOLENOID (AUTO LUBE)1
5D5569CONNECTOR1
7N9737HOUSING-RECEPTACLE (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
8T539146 BOLT (5/16-18X0.5-IN)2
9X043547 CONNECTOR1
9G436048 CAP-CONNECTOR1
114665849 WASHER (6.5X17X1-MM THK)4
3J735450 SEAL-O-RING1
3E523951 RELAY AS (24-VOLT)1
5M306252 BOLT (3/8-16X0.75-IN)15
8T489653 WASHER-HARD (10.2X18.5X2.5-MM THK)24
3T304854 CLIP AS3
3T304755 CLIP AS2
1H333856 LOCKWASHER4
8T420557 WASHER-HARD (7.2X14.5X2-MM THK)5
9G915258 CLIP1
9G915459 CLIP1
5S734960 BOLT (1/4-20X0.5-IN)2
3T005061 CLIP4
165402662 SWITCH AS-MAGNETIC (24-VOLT)(BACK UP RELAY)1
6V8378NUT (10-32-THD)2
6V8186NUT-FULL (5/16-24-THD)2
4F2294NUT-JAM (5/16-24-THD)2
4M528163 BOLT (1/4-20X0.75-IN)4
4L645464 BOLT (3/8-16X1-IN)2
9M840665 CLIP (LOOP)4
5P626466 GROMMET2
117136967 HARNESS AS-LIGHTING (OVERHEAD CONSOLE)1
3T441168 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS)1
6V818869 NUT (1/2-13-THD)1
8T422370 WASHER-HARD (13.5X25.5X3-MM THK)1
5P844071 GROMMET1
3S866472 CLIP2
140362073 HARNESS AS-MONITOR (VIMS)1
5S737974 BOLT (3/8-16X0.875-IN)6
3E203475 SWITCH AS-PRESSURE (AETA)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
129455676 HARNESS AS-CAB (VIMS)1
3S209377 STRAP-CABLE6
3E203378 SWITCH AS-PRESSURE (SECONDARY BRAKE)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
9D372179 SWITCH-TOGGLE (SINGLE POLE)(SERVICE SET/CLEAR)2
3T304680 CLIP AS2
4B122981 SCREW (10-24X12.7-MM)8
117884482 PLATE AS1
4B427483 WASHER (5.5X13X1.2-MM THK)8
6V818784 NUT (1/4-28-THD)4
5M621385 PLUG-PIPE (1/4-18-THD)1
9M497286 CLIP (LOOP)2
2M934687 SWITCH AS-PRESSURE (STOP LAMP)1
8F1434LOCKWASHER2
6V8378NUT (10-32-THD)2
7D409288 CLIP1
5P839489 SCREW-MACHINE (8-32X0.75-IN)8
4B204390 NUT (8-32-THD)8
4B486391 WASHER (4.7X11X1.2-MM THK)8
8C635492 CAP-RECEPTACLE (ET CONNECTOR)1
3E864693 CONVERTER AS-ELECTRICAL (24-VOLT TO 12-VOLT, 25-AMPERE)1
129399894 HARNESS AS-CAB (AETA)1
128086995 CONTROL GP-TRACTION ELECTRONIC (AETA)1
3T1265FILM-IDENTIFICATION (AETA)1
6D303396 SCREW-SOCKET HEAD (4-40X0.5-IN)4
6V949797 WASHER-HARD (3.2X6X0.5-MM THK)4
6B454098 NUT (4-40-THD)4
8X963899 PLATE1
1654026100 SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)1
6V8378NUT (10-32-THD)2
6V8186NUT-FULL (5/16-24-THD)2
4F2294NUT-JAM (5/16-24-THD)2
3E2034101 SWITCH AS-PRESSURE (SERVICE BRAKE RETARDER)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7K1181102 STRAP-CABLE1
6D4246103 CLIP (LOOP)1
8M2770104 CLIP (LOOP)6
5M3062105 BOLT (3/8-16X0.75-IN)11
8T4896106 WASHER-HARD (10.2X18.5X2.5-MM THK)12
3T3048107 CLIP AS2
8T4205108 WASHER-HARD (7.2X14.5X2-MM THK)5
9G9154109 CLIP2
5S7349110 BOLT (1/4-20X0.5-IN)5
3T0050111 CLIP1
3S8664112 CLIP2
3S2093113 STRAP-CABLE10
5P8167114 BOLT (3/8-16X0.625-IN)1
9G9150115 CLIP2
1733064116 SWITCH GP-ROTARY (TURN SIGNAL, HAZARD)1
9B7233LOCKWASHER1
5L7200SCREW (8-32X0.375-IN)1
8D7712117 FASTENER3
9F8125118 LOCKWASHER3
9G9813119 ALARM GP (24-VOLT)(ACTION)1
8W2066120 LEVER-TURN SIGNAL1
3E2035121 SWITCH AS-PRESSURE (RETARDER LAMP)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
3B6768122 BUSHING-REDUCER1
6G9462123 HARNESS AS-WIRING (TURN SIGNAL)1
9M4972124 CLIP (LOOP)1
1V6688125 GROMMET1
7D7233126 CLIP (LOOP)1
8M2773127 CLIP (LOOP)1
9G1307128 GROMMET1
4D7794129 CLIP1
4K8864130 CLIP (LOOP)2
4S4455131 CLIP1
8M2770132 CLIP (LOOP)1
5M3062133 BOLT (3/8-16X0.75-IN)3
8T4896134 WASHER-HARD (10.2X18.5X2.5-MM THK)3
6T6066135 SWITCH AS-ROCKER (THROTTLE BYPASS)1
3L8187LOCKWASHER2
6V8374SCREW-MACHINE (6-32X0.25-IN)2
9X2042136 SCREW-TRUSS HEAD (M6X1X12-MM)6
7N8419137 TERMINAL-BLADE12
9G9287138 CONTROL GP-ENGINE ELECTRONIC (ENGINE SHUTDOWN)1
9G3670HOUSING-PLUG1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)4
9G3695PLUG-SEAL1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)2
1S9593STRAP-CABLE3
4D1836139 SWITCH-TOGGLE (AETA TEST)1
3T5438140 DISTRIBUTOR GP-ELECTRONIC (TRANSMISSION SPEED)1
4M0061141 BOLT (5/16-18X0.75-IN)2
8T4224142 WASHER-HARD (8.8X16X2-MM THK)2
1450846143 KNOB AS-LIGHTER1
9D3721144 SWITCH-TOGGLE (SINGLE POLE)(BRAKE RETRACT)1
9G2264145 CLIP-CONNECTOR1
9W1495146 KIT-SERVICE METER1
8T0701FILM-SERVICE METER1
9W1411WIRE AS1
6T6969147 GUARD-SWITCH2
1450847148 HOUSING AS1
9B7233LOCKWASHER1
6V8376SCREW-MACHINE (8-32X0.25-IN)1
9G7641149 SWITCH GP-START (ENGINE, KEY)(ENGINE)(KEY)1
7T1874150 TERMINAL-BLADE2
8C9812151 SWITCH AS-TOGGLE (START AID)1
6T3633RING-LOCKING1
3L8187LOCKWASHER3
6T3632LOCKWASHER1
6T3631NUT-HEX (15/32-32-THD)2
6V8374SCREW-MACHINE (6-32X0.25-IN)3
1063758152 FILM-INSTRUCTION (CONSOLE)1
6T3991153 SWITCH AS-ROCKER (LADDER ACCESS LIGHTS)1
3L8187LOCKWASHER3
6V8374SCREW-MACHINE (6-32X0.25-IN)3
6T6329154 BEZEL6
6V8927155 BOLT-SOCKET HEAD (6-32X0.5-IN)12
6T3990156 SWITCH AS-ROCKER (INTERIOR LIGHT)1
3L8187LOCKWASHER2
6V8374SCREW-MACHINE (6-32X0.25-IN)2
8T2966157 FILM-INSTRUMENT PANEL1
1379500158 SWITCH AS-ROCKER (FOG LIGHTS)2
1146658159 WASHER (6.5X17X1-MM THK)6
9G9154160 CLIP1
6T3991161 SWITCH AS-ROCKER (PANEL LIGHTS)1
3L8187LOCKWASHER3
6V8374SCREW-MACHINE (6-32X0.25-IN)3
6T3989162 SWITCH AS-ROCKER (HEADLIGHTS)1
3L8187LOCKWASHER8
6V8374SCREW-MACHINE (6-32X0.25-IN)8
