System And Components

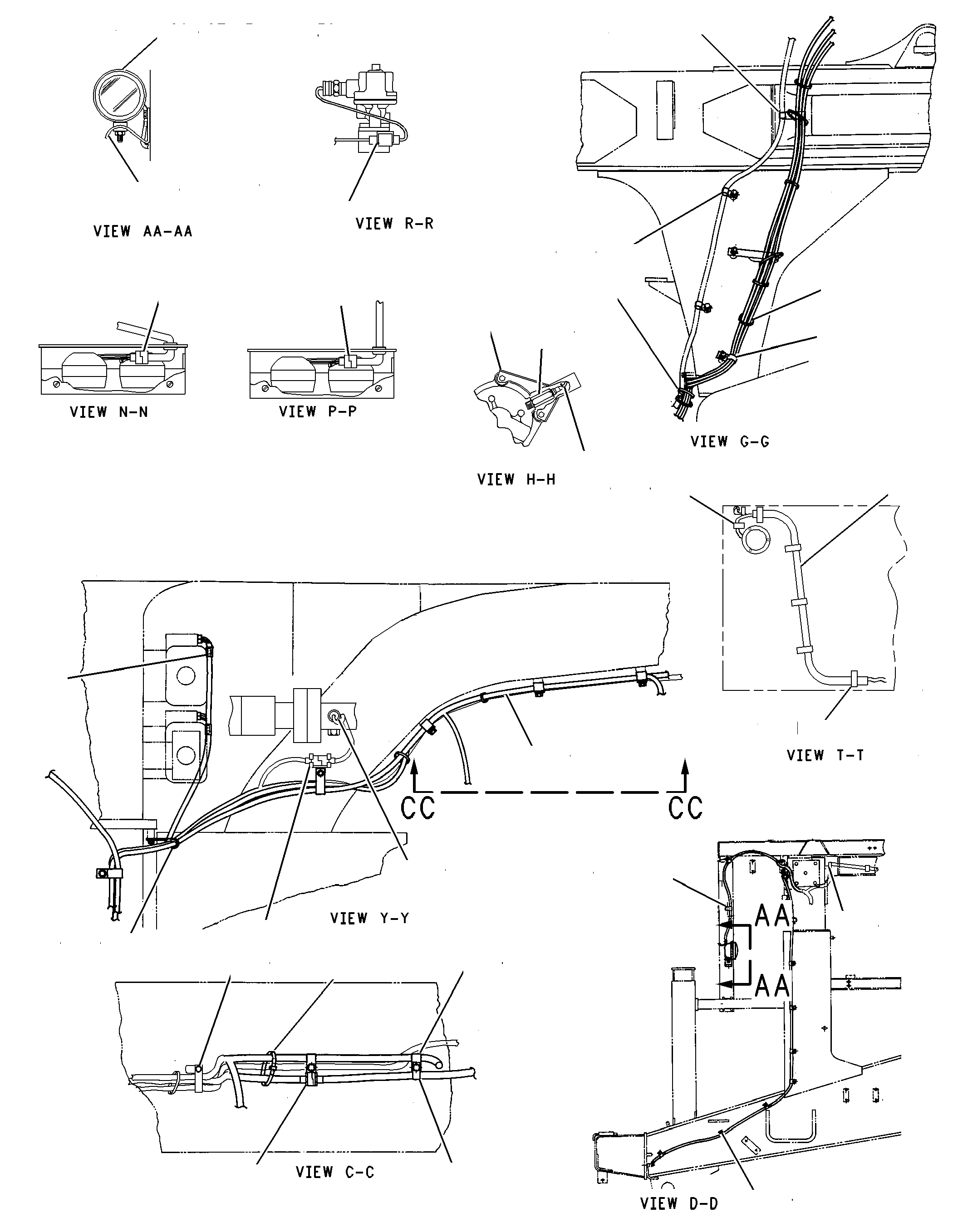

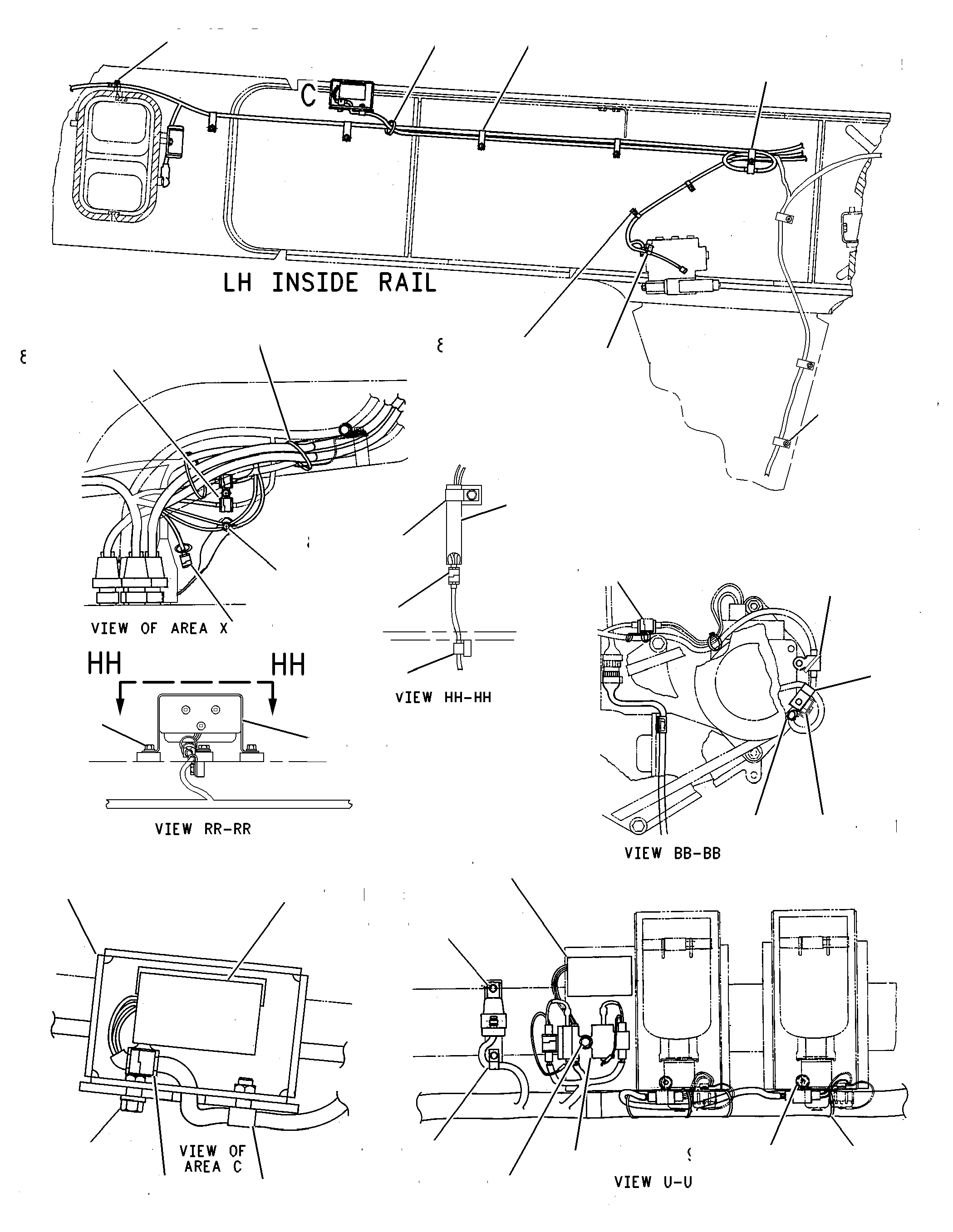

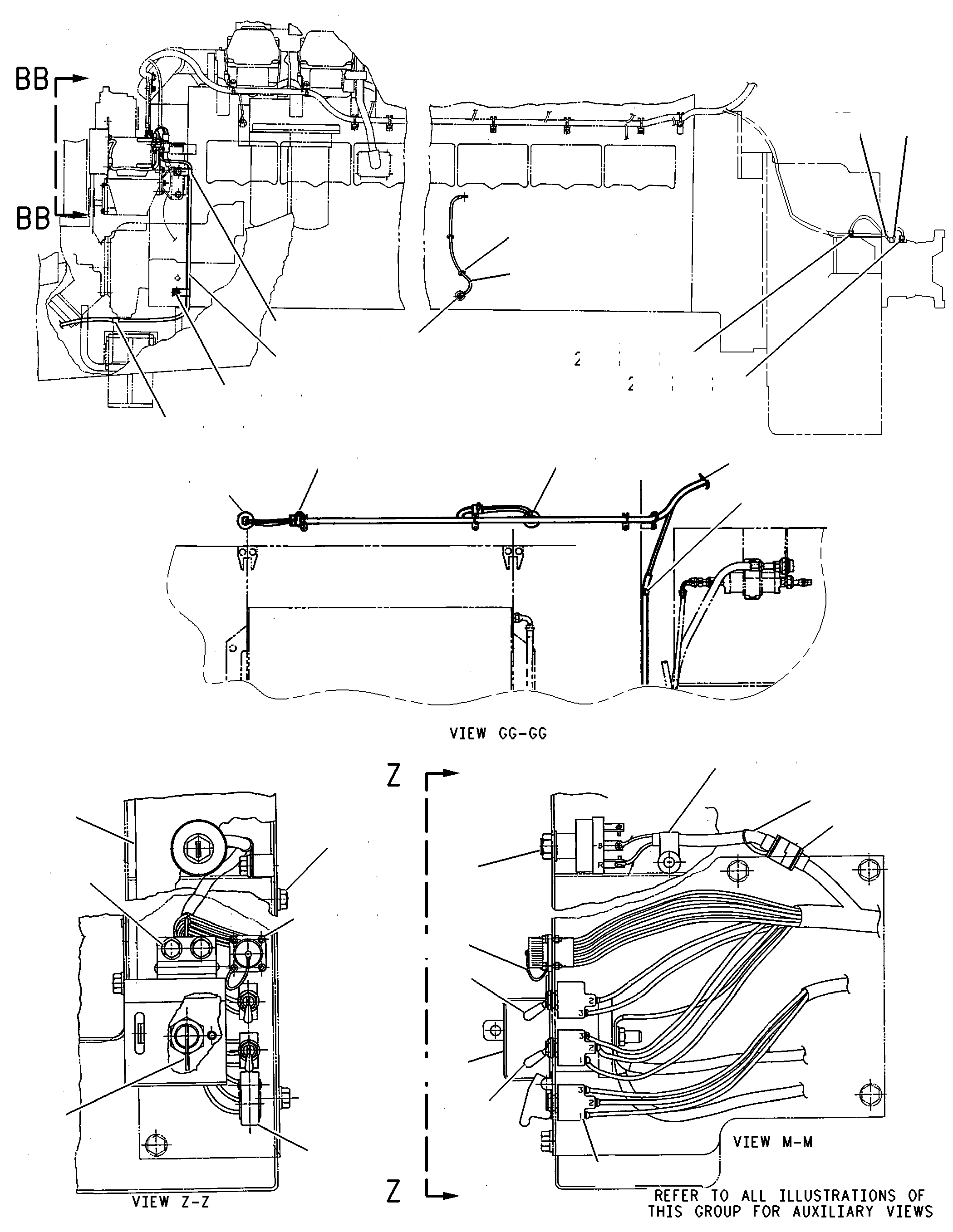

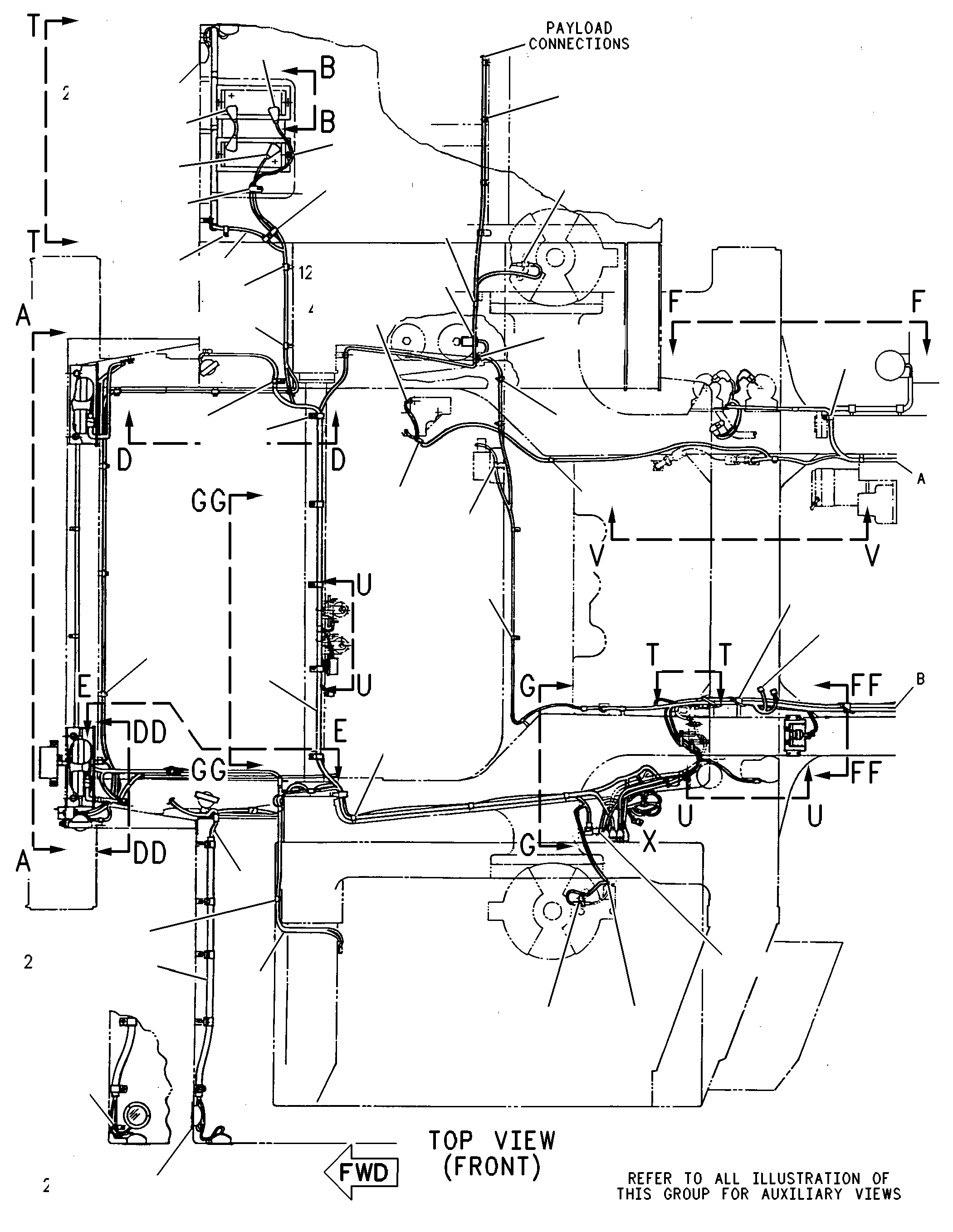

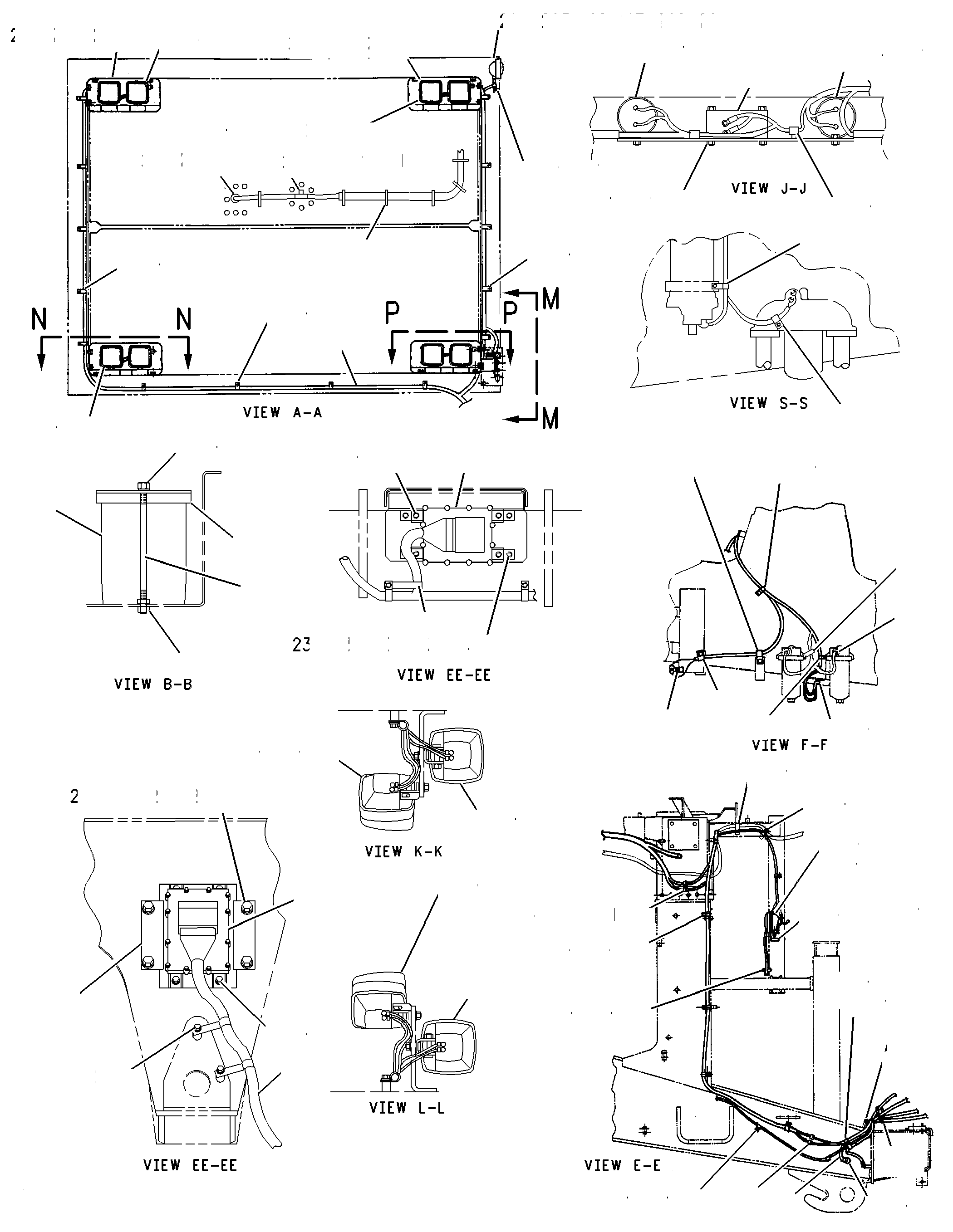

115-6477 BATTERY & WIRING GP -CHASSIS/VIMSS/N 7EK277-370
Group No: 115-6477
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4896 | 1 WASHER-HARD (10.2X18.5X2.5-MM THK) | 49 | |
| 3S8665 | 2 CLIP (LOOP) | 2 | |
| 5S7379 | 3 BOLT (3/8-16X0.875-IN) | 19 | |
| 4D7794 | 4 CLIP | 5 | |
| 5M3062 | 5 BOLT (3/8-16X0.75-IN) | 22 | |
| 9G9154 | 6 CLIP | 1 | |
| 9G9150 | 7 CLIP | 4 | |
| 9G9152 | 8 CLIP | 3 | |
| 8M2770 | 9 CLIP (LOOP) | 1 | |
| 9M8406 | 10 CLIP (LOOP) | 4 | |
| 5K3294 | 11 CLIP | 1 | |
| 5P0562 | 12 LOCKWIRE | ||
| 1157503 | 13 HARNESS AS (BATTERY CABLE) | 1 | |
| 5P9085 | 14 CLIP (LOOP) | 1 | |
| 5P8167 | 15 BOLT (3/8-16X0.625-IN) | 2 | |
| 4S4456 | 16 CLIP | 10 | |
| 1175883 | 17 CABLE AS | 1 | |
| 1167160 | 18 CABLE AS-BATTERY | 1 | |
| 5T9414 | 19 HARNESS AS (TURN SIGNAL, RH) | 1 | |
| 5P1506 | 20 HOSE | ||
| 7D4092 | 21 CLIP | 5 | |
| 1157466 | 22 HARNESS AS (LADDER, LH) | 1 | |
| 5T9413 | 23 HARNESS AS (TURN SIGNAL)(LH) | 1 | |
| 3S2093 | 24 STRAP-CABLE | 4 | |
| 1003055 | 25 SENSOR GP-TEMPERATURE (FRONT BRAKE OIL) | 2 | |
| 3J1907 | 26 SEAL-O-RING | 3 | |
| 3T3048 | 27 CLIP AS | 2 | |
| 3T3967 | 28 LAMP GP-SIGNAL (PARKING, TURN)(AMBER) | 4 | |
| 7S4346 | 29 SCREW-MACHINE (10-32X0.5-IN) | 12 | |
| 9F5599 | 30 LOCKWASHER | 24 | |
| 4B2049 | 31 NUT (10-32-THD) | 12 | |
| 4D1544 | 32 CLIP (1.5 X 1.5 IN) | 4 | |
| 3E6461 | 33 SWITCH AS-PRESSURE (STEERING PUMP OIL)(HIGH) | 1 | |
| 5P1075 | 34 WASHER-HARD (10.2X22.5X3-MM THK) | 5 | |
| 5P9299 | 35 CLIP (LOOP) | 7 | |
| 4L6454 | 36 BOLT (3/8-16X1-IN) | 1 | |
| 3J7354 | 37 SEAL-O-RING | 1 | |
| 5P9617 | 38 ADAPTER | 1 | |
| 0338248 | 39 CLIP (LOOP) | 4 | |
| 9M4995 | 40 CLIP | 2 | |
| 9X3495 | 41 CLIP AS | 2 | |
| 3M7212 | 42 TERMINAL-BATTERY | 1 | |
| 7K1181 | 43 STRAP-CABLE | 2 | |
| 4K6177 | 44 CLIP | 1 | |
| 5P9297 | 45 CLIP (LOOP) | 1 | |
| 1028856 | 46 HARNESS AS (REAR LIGHTS) | 1 | |
| 7K1181 | 47 STRAP-CABLE | 2 | |
| 8T4896 | 48 WASHER-HARD (10.2X18.5X2.5-MM THK) | 34 | |
| 8W1087 | 49 TUBE | 2 | |
| 3S8665 | 50 CLIP (LOOP) | 4 | |
| 5S7379 | 51 BOLT (3/8-16X0.875-IN) | 7 | |
| 4D7794 | 52 CLIP | 5 | |
| 5M3062 | 53 BOLT (3/8-16X0.75-IN) | 11 | |
| 9G9154 | 54 CLIP | 2 | |
| 9G9152 | 55 CLIP | 3 | |
| 4S4455 | 56 CLIP | 2 | |
| 8M2770 | 57 CLIP (LOOP) | 8 | |
| 9M8406 | 58 CLIP (LOOP) | 6 | |
| 7N3718 | 59 CLIP | 1 | |
| 5K3294 | 60 CLIP | 2 | |
| 5P0562 | 61 LOCKWIRE | ||
| 1157473 | 62 HARNESS AS (AETA, CHASSIS) | 1 | |
| 1157468 | 63 HARNESS AS (AETA, SENSORS) | 1 | |
| 3T3046 | 64 CLIP AS | 1 | |
| 7X1670 | 65 CONTROL GP-ELECTRONIC | 1 | |
| 1003055 | 66 SENSOR GP-TEMPERATURE (REAR BRAKE OIL)(LH) | 1 | |
| 3J1907 | 67 SEAL-O-RING | 3 | |
| 3E7809 | 68 SWITCH AS-PRESSURE (STEERING PUMP OIL)(LOW) | 1 | |
| 4D8123 | 69 CLIP (LOOP) | 1 | |
| 1159175 | 70 HARNESS AS (REAR PAYLOAD) | 1 | |
| 6D2834 | 71 CLIP | 1 | |
| 5P1075 | 72 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 4L6454 | 73 BOLT (3/8-16X1-IN) | 5 | |
| 5S7383 | 74 BOLT (3/8-16X1.75-IN) | 2 | |
| 9X3495 | 75 CLIP AS | 2 | |
| 1157499 | 76 HARNESS AS-MONITOR (VIMS) | 1 | |
| 1114610 | 77 HARNESS AS-MONITOR (VIMS, CAT DATA LINK JUMPER) | 1 | |
| 8T2502 | 78 BOLT (3/8-16X1.125-IN) | 3 | |
| 1179077 | 79 PLATE | 1 | |
| 1134339 | 80 SPACER (10.5X18X21-MM THK) | 2 | |
| 6V8801 | 81 NUT (3/8-16-THD) | 2 | |
| 1003055 | 82 SENSOR GP-TEMPERATURE (DIFFERENTIAL OIL) | 1 | |
| 7K1181 | 83 STRAP-CABLE | 2 | |
| 8T4896 | 84 WASHER-HARD (10.2X18.5X2.5-MM THK) | 17 | |
| 5S7379 | 85 BOLT (3/8-16X0.875-IN) | 8 | |
| 4D7794 | 86 CLIP | 5 | |
| 5M3062 | 87 BOLT (3/8-16X0.75-IN) | 7 | |
| 9G9154 | 88 CLIP | 1 | |
| 2R1939 | 89 CLIP (LOOP) | 2 | |
| 9G9150 | 90 CLIP | 3 | |
| 4M7146 | 91 STRAP AS-GROUND | 1 | |
| 9G9152 | 92 CLIP | 3 | |
| 8M2770 | 93 CLIP (LOOP) | 2 | |
| 6V8189 | 94 NUT (5/16-18-THD) | 1 | |
| 8T4191 | 95 BOLT (M10X1.5X16-MM) | 2 | |
| 5P8167 | 96 BOLT (3/8-16X0.625-IN) | 2 | |
| 8T4121 | 97 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T9043 | 98 BOLT (5/16-18X0.875-IN) | 2 | |
| 9X9584 | 99 RESISTOR AS | 2 | |
| 8T4136 | 100 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4224 | 101 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T8911 | 102 BOLT (5/16-18X2-IN) | 2 | |
| 9X3207 | 103 TIMER GP | 1 | |
| 3S2093 | 104 STRAP-CABLE | 9 | |
| 4M0061 | 105 BOLT (5/16-18X0.75-IN) | 1 | |
| 2V3216 | 106 CLIP (LOOP) | 1 | |
| 9X8256 | 107 WASHER (6.6X12X2-MM THK) | 2 | |
| 8T4171 | 108 BOLT (M6X1X12-MM) | 2 | |
| 3E5239 | 109 RELAY AS (24-VOLT) | 1 | |
| 3T3048 | 110 CLIP AS | 1 | |
| 3V6909 | 111 BLOCK | 1 | |
| 3T0050 | 112 CLIP | 1 | |
| 4K6177 | 113 CLIP | 3 | |
| 6K2319 | 114 CLIP | 1 | |
| 3E0461 | 115 CONTROL GP-ELECTRONIC (BODY POSITIONER) | 1 | |
| 6V3265 | 116 CLIP | 1 | |
| 4V4760 | 117 COVER | 1 | |
| 1179079 | 118 PLATE AS | 1 | |
| 1072282 | 119 LAMP GP-SIGNAL (24-VOLT)(BLUE) | 1 | |
| 5C2890 | 120 NUT (M6X1-THD) | 3 | |
| 8T4205 | 121 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 7C4354 | 122 CLIP | 1 | |
| 5P5116 | 123 HOSE | ||
| 1058827 | 124 SUPPRESSOR GP-ELECTRONIC (A/C) | 1 | |
| 4L6454 | 125 BOLT (3/8-16X1-IN) | 3 | |
| 3D7854 | 126 SPACER | 1 | |
| 6D2256 | 127 SPACER | 1 | |
| 7K1181 | 128 STRAP-CABLE | 6 | |
| 6D4636 | 129 CLIP (LOOP) | 3 | |
| 6V8188 | 130 NUT (1/2-13-THD) | 2 | |
| 3J4818 | 131 LOCKWASHER | 1 | |
| 8T4896 | 132 WASHER-HARD (10.2X18.5X2.5-MM THK) | 21 | |
| 4D1326 | 133 LOCKWASHER | 2 | |
| 5S7379 | 134 BOLT (3/8-16X0.875-IN) | 12 | |
| 4D7794 | 135 CLIP | 8 | |
| 5M3062 | 136 BOLT (3/8-16X0.75-IN) | 7 | |
| 9G9154 | 137 CLIP | 1 | |
| 9G9150 | 138 CLIP | 4 | |
| 8M2770 | 139 CLIP (LOOP) | 1 | |
| 1029096 | 140 HARNESS AS-TRANSMISSION (CHASSIS) | 1 | |
| 5P0562 | 141 LOCKWIRE | ||
| 5P9085 | 142 CLIP (LOOP) | 4 | |
| 8W2686 | 143 BRACKET | 1 | |
| 6N7989 | 144 LAMP GP-FLOOD (RH ENGINE LAMP) | 1 | |
| 4S4456 | 145 CLIP | 2 | |
| 5P1506 | 146 HOSE | ||
| 7D4092 | 147 CLIP | 6 | |
| 3E6955 | 148 SENSOR GP-SPEED (TC OUTPUT) | 1 | |
| 6T4409 | 149 GUARD AS | 1 | |
| 3K0360 | 150 SEAL-O-RING | 1 | |
| 3S2093 | 151 STRAP-CABLE | 2 | |
| 1003055 | 152 SENSOR GP-TEMPERATURE (REAR BRAKE OIL)(RH) | 1 | |
| 3J1907 | 153 SEAL-O-RING | 1 | |
| 5P1075 | 154 WASHER-HARD (10.2X22.5X3-MM THK) | 5 | |
| 4K6177 | 155 CLIP | 2 | |
| 3T3045 | 156 CLIP AS | 2 | |
| 4L6454 | 157 BOLT (3/8-16X1-IN) | 1 | |
| 2T3019 | 158 CLIP (LOOP) | 2 | |
| 9X3495 | 159 CLIP AS | 1 | |
| 4S6668 | 160 CLIP (LOOP)(TAB) | 1 | |
| 4D6466 | 161 CLIP | 2 | |
| 9X4381 | 162 LAMP GP-FLOOD (24-VOLT)(BACK UP) | 2 | |
| 3D7854 | 163 SPACER | 1 | |
| 6D2256 | 164 SPACER | 1 | |
| 7K1181 | 165 STRAP-CABLE | 11 | |
| 6V1119 | 166 LAMP GP-SIGNAL (24-VOLT)(AMBER) | 2 | |
| 6V8188 | 167 NUT (1/2-13-THD) | 11 | |
| 3J4818 | 168 LOCKWASHER | 2 | |
| 1081289 | 169 LAMP GP-SIGNAL (STOP, TAIL)(RED) | 2 | |
| 3T1815 | 170 ALARM GP | 1 | |
| 8T9379 | 171 BOLT (3/8-16X4.25-IN) | 2 | |
| 8T4896 | 172 WASHER-HARD (10.2X18.5X2.5-MM THK) | 29 | |
| 4D1326 | 173 LOCKWASHER | 2 | |
| 6V8801 | 174 NUT (3/8-16-THD) | 3 | |
| 3S8665 | 175 CLIP (LOOP) | 2 | |
| 5S7379 | 176 BOLT (3/8-16X0.875-IN) | 10 | |
| 4D7794 | 177 CLIP | 3 | |
| 5M3062 | 178 BOLT (3/8-16X0.75-IN) | 9 | |
| 9G9154 | 179 CLIP | 1 | |
| 1157501 | 180 HARNESS AS-MONITOR (VIMS) | 1 | |
| 9G9150 | 181 CLIP | 1 | |
| 9G9152 | 182 CLIP | 3 | |
| 9B7237 | 183 BOLT (3/8-16X1.25-IN) | 1 | |
| 4S4455 | 184 CLIP | 1 | |
| 8T4133 | 185 NUT (M10X1.5-THD) | 4 | |
| 8M2770 | 186 CLIP (LOOP) | 3 | |
| 7N3718 | 187 CLIP | 2 | |
| 6D4246 | 188 CLIP (LOOP) | 5 | |
| 5P9085 | 189 CLIP (LOOP) | 1 | |
| 8W2686 | 190 BRACKET | 1 | |
| 5P8167 | 191 BOLT (3/8-16X0.625-IN) | 9 | |
| 6N7989 | 192 LAMP GP-FLOOD (LH ENGINE LAMP) | 1 | |
| 8T4121 | 193 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 1167156 | 194 CABLE AS | 1 | |
| 3T5760 | 195 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 9D6635 | 196 HOLD-DOWN AS-BATTERY | 2 | |
| 4D8951 | 197 ROD | 4 | |
| 8T4223 | 198 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 3T3046 | 199 CLIP AS | 2 | |
| 1157458 | 200 HARNESS AS | 1 | |
| 3T4411 | 201 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 7D1649 | 202 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 7N9737 | 203 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | 204 PLUG-SEAL | 1 | |
| 7I4628 | 205 BRACKET AS | 4 | |
| 7V6063 | 206 BOLT AS | 16 | |
| 8K1433 | 207 GROMMET | 4 | |
| 9X7165 | 208 LAMP GP-HEAD (24-VOLT, LOW BEAM) | 6 | |
| 9X7166 | 209 LAMP GP-HEAD (HIGH BEAM) | 2 | |
| 8T8911 | 210 BOLT (5/16-18X2-IN) | 8 | |
| 3E9860 | 211 LOCKNUT (5/16-18-THD) | 8 | |
| 3S2093 | 212 STRAP-CABLE | 2 | |
| 1003055 | 213 SENSOR GP-TEMPERATURE (TRANSMISSION OIL) | 1 | |
| 3J1907 | 214 SEAL-O-RING | 1 | |
| 4M0061 | 215 BOLT (5/16-18X0.75-IN) | 8 | |
| 7N4447 | 216 SWITCH AS-PRESSURE (TC INLET FILTER) | 1 | |
| 4D8123 | 217 CLIP (LOOP) | 3 | |
| 8E1550 | 218 BRACKET AS | 8 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 8E0368 | BRACKET | 1 | |
| 9X7781 | 219 SWITCH GP-BYPASS (XMSN LUBE SUPPLY & CHARGE FIL) | 2 | |
| 5P1075 | 220 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 3T3045 | 221 CLIP AS | 2 | |
| 7I5382 | 222 HARNESS AS | 2 | |
| 7I5124 | 223 HARNESS AS-FRONT LIGHTING | 2 | |
| 9M4995 | 224 CLIP | 1 | |
| 9X3495 | 225 CLIP AS | 1 | |
| 6V1228 | 226 CLIP | 3 | |
| 3T3047 | 227 CLIP AS | 1 | |
| 9N0869 | 228 WASHER-HARD (8.8X25.5X2-MM THK) | 4 | |
| 8T9658 | 229 SPACER (8.2X12.7X25.4-MM THK) | 4 | |
| 8C6561 | 230 BOLT (5/16-18X1.375-IN) | 4 | |
| 8T9655 | 231 MOUNT-ISOLATION | 8 | |
| 6V6649 | 232 MODULE GP-VIDS/VIMS INTERFACE | 2 | |
| 1178648 | 233 PLATE AS | 1 | |
| 5P4116 | 234 WASHER-HARD (8.8X20.5X2-MM THK) | 8 | |
| 1178649 | 235 BAR | 1 | |
| 4M5282 | 236 BOLT (1/4-20X1.5-IN) | 4 | |
| 9X6165 | 237 WASHER (6.5X22X2.5-MM THK) | 4 | |
| 8C5608 | 238 SPACER (6.5X9.5X25.4-MM THK) | 4 | |
| 8C5607 | 239 MOUNT-ISOLATION | 8 | |
| 2P1279 | 240 LOCKNUT (9/16-18-THD) | 1 | |
| 1183909 | 241 SENSOR GP-TEMPERATURE (AMBIENT AIR) | 1 | |
| 7K1181 | 242 STRAP-CABLE | 10 | |
| 8T4896 | 243 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 4D7794 | 244 CLIP | 2 | |
| 5M3062 | 245 BOLT (3/8-16X0.75-IN) | 10 | |
| 8M2770 | 246 CLIP (LOOP) | 13 | |
| 7N3718 | 247 CLIP | 5 | |
| 5P0562 | 248 LOCKWIRE | ||
| 5P8167 | 249 BOLT (3/8-16X0.625-IN) | 1 | |
| 7N0718 | 250 SWITCH GP-DISCONNECT | 1 | |
| 1167156 | 251 CABLE AS | 1 | |
| 8T4223 | 252 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 4D1836 | 253 SWITCH-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 8D2676 | 254 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP) | 1 | |
| 3E6955 | 255 SENSOR GP-SPEED (TRANSMISSION INPUT) | 1 | |
| 3K0360 | 256 SEAL-O-RING | 2 | |
| 3S2093 | 257 STRAP-CABLE | 5 | |
| 1003055 | 258 SENSOR GP-TEMPERATURE (TC OIL) | 1 | |
| 3J1907 | 259 SEAL-O-RING | 1 | |
| 7I4821 | 260 HARNESS AS (ENGINE SHUTDOWN)(ENGINE SHUTDOWN) | 1 | |
| 8T9383 | 261 BOLT (1/2-13X0.75-IN) | 1 | |
| 6B4540 | 262 NUT (4-40-THD) | 4 | |
| 6D3033 | 263 SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 8D9537 | 264 CAP-DUST | 1 | |
| 3T3048 | 265 CLIP AS | 4 | |
| 3E5169 | 266 GUARD-SWITCH | 1 | |
| 2A7321 | 267 BOX AS | 1 | |
| 8F8551 | HINGE-BUTT | 1 | |
| 5P1075 | 268 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 6V9497 | 269 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 4D9517 | 270 CLIP | 1 | |
| 9X3495 | 271 CLIP AS | 2 | |
| 1106150 | 272 HARNESS AS-SWITCH | 1 | |
| 9G7641 | 273 SWITCH GP-START (ENGINE, KEY)(ENGINE)(KEY) | 1 | |
| 1113794 | 274 SENSOR GP-COOLANT LEVEL (JACKET WATER) | 1 | |
| 4P7581 | 275 CLIP (LADDER) | 1 | |
| 1S0994 | 276 CLIP (LOOP) | 2 | |
| 1106149 | 277 HARNESS AS (COOLANT LEVEL)(COOLANT LOSS)(VIMS) | 1 | |
| 1182082 | 278 COVER AS | 1 | |
| 8F9836 | BOSS (3/8-16-THD) | 1 | |
| 4D1836 | 279 SWITCH-TOGGLE (LADDER ACCESS LAMP) | 1 | |
| 1113794 | 280 SENSOR GP-COOLANT LEVEL (AFTERCOOLER) | 1 |
