System And Components

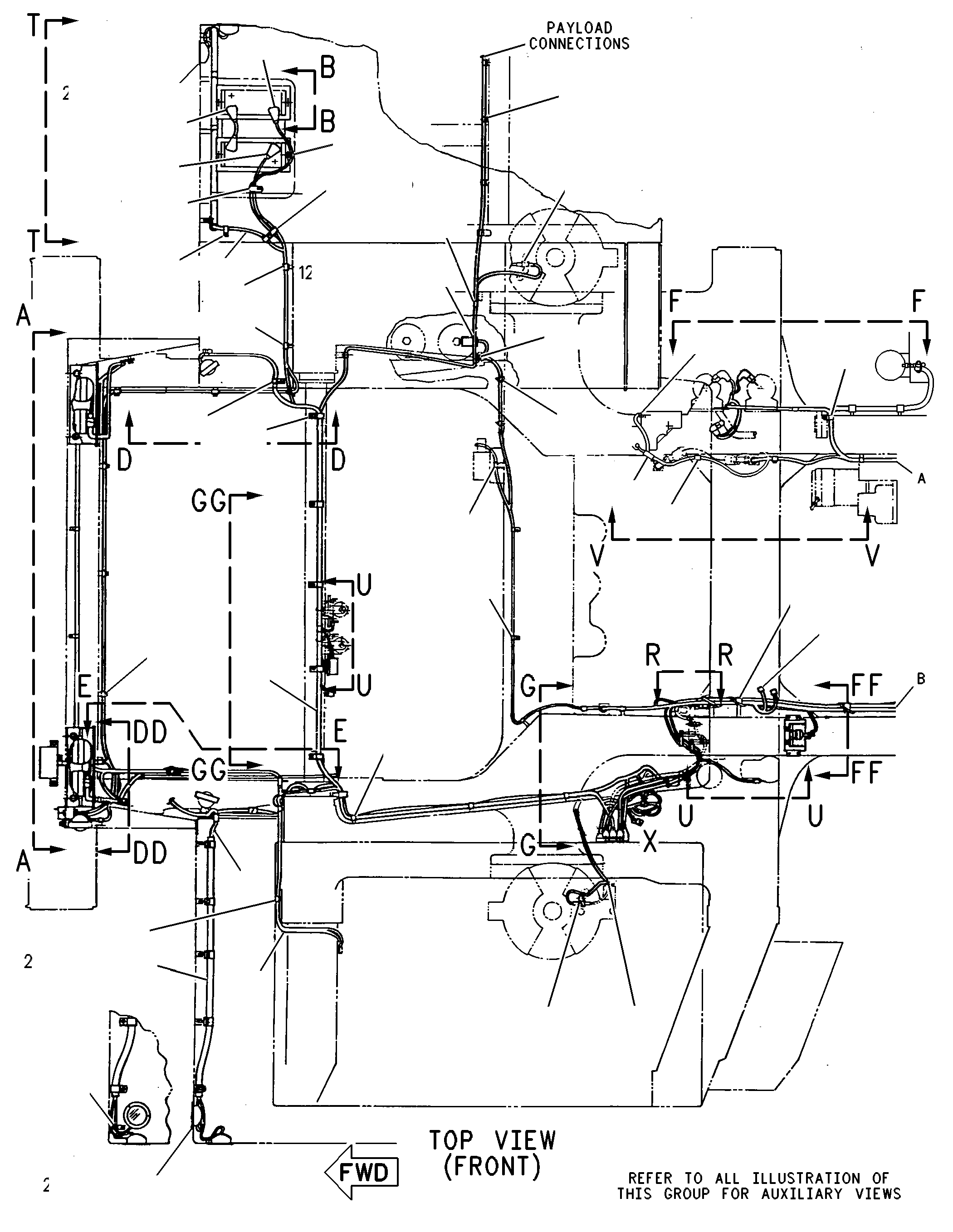

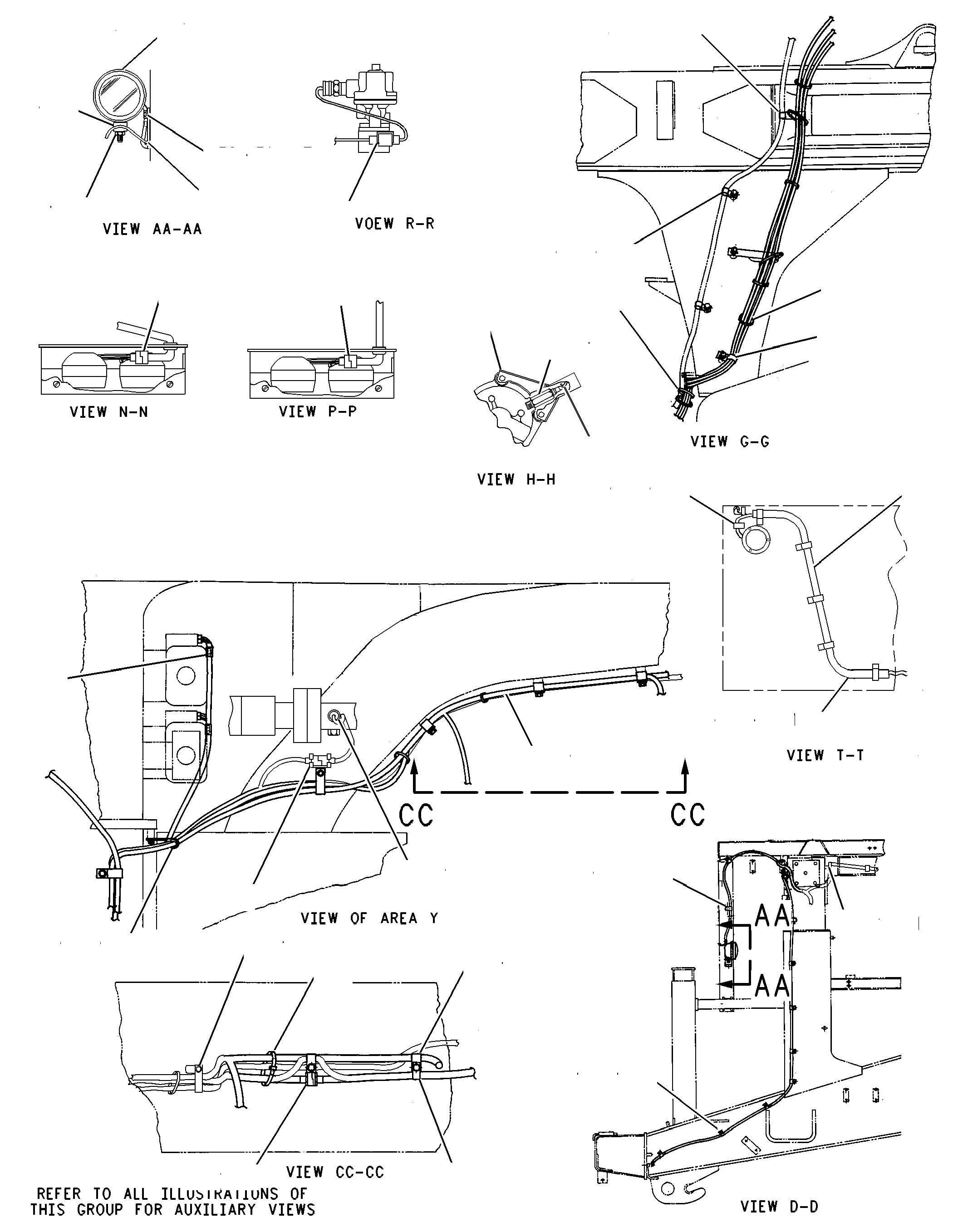

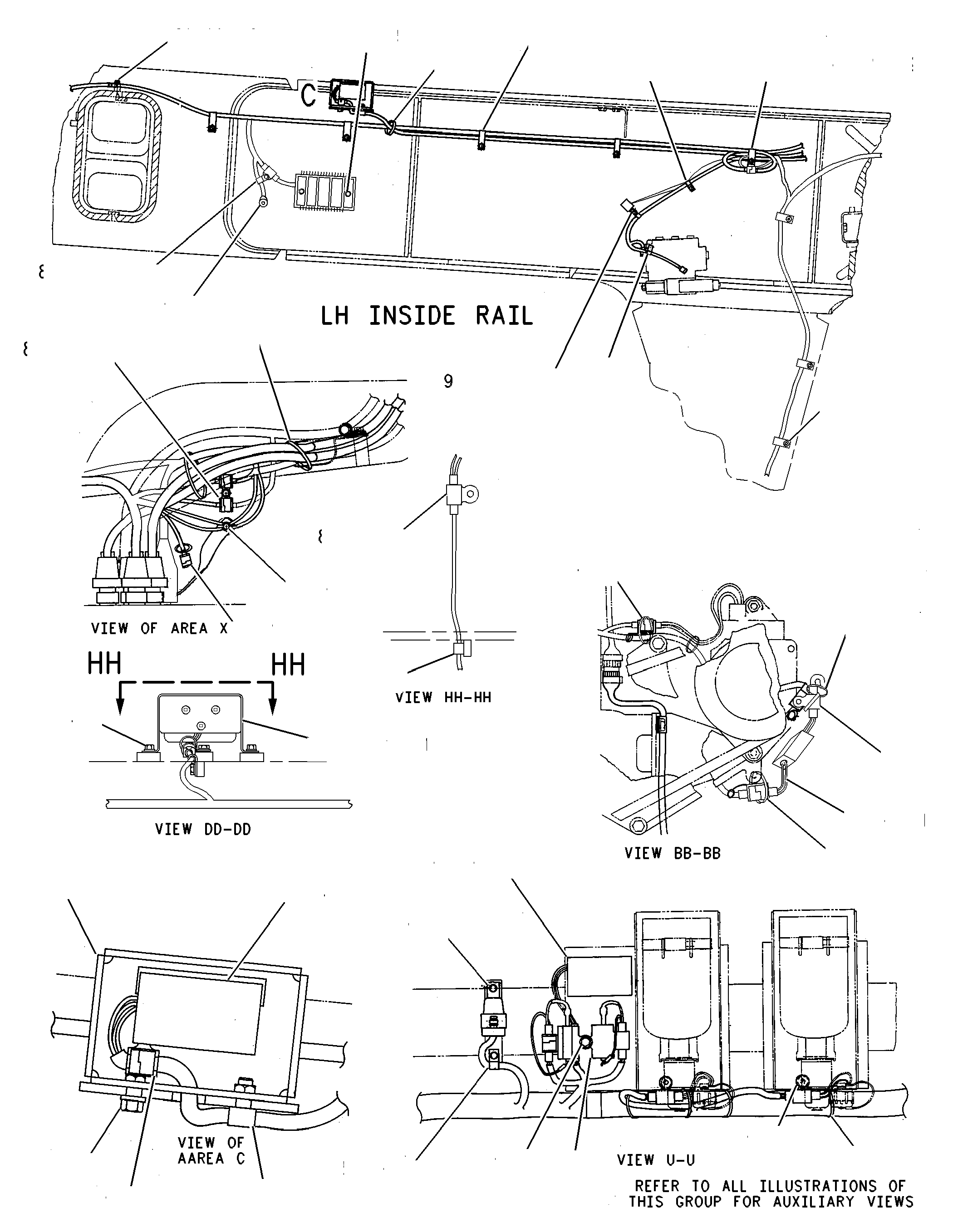

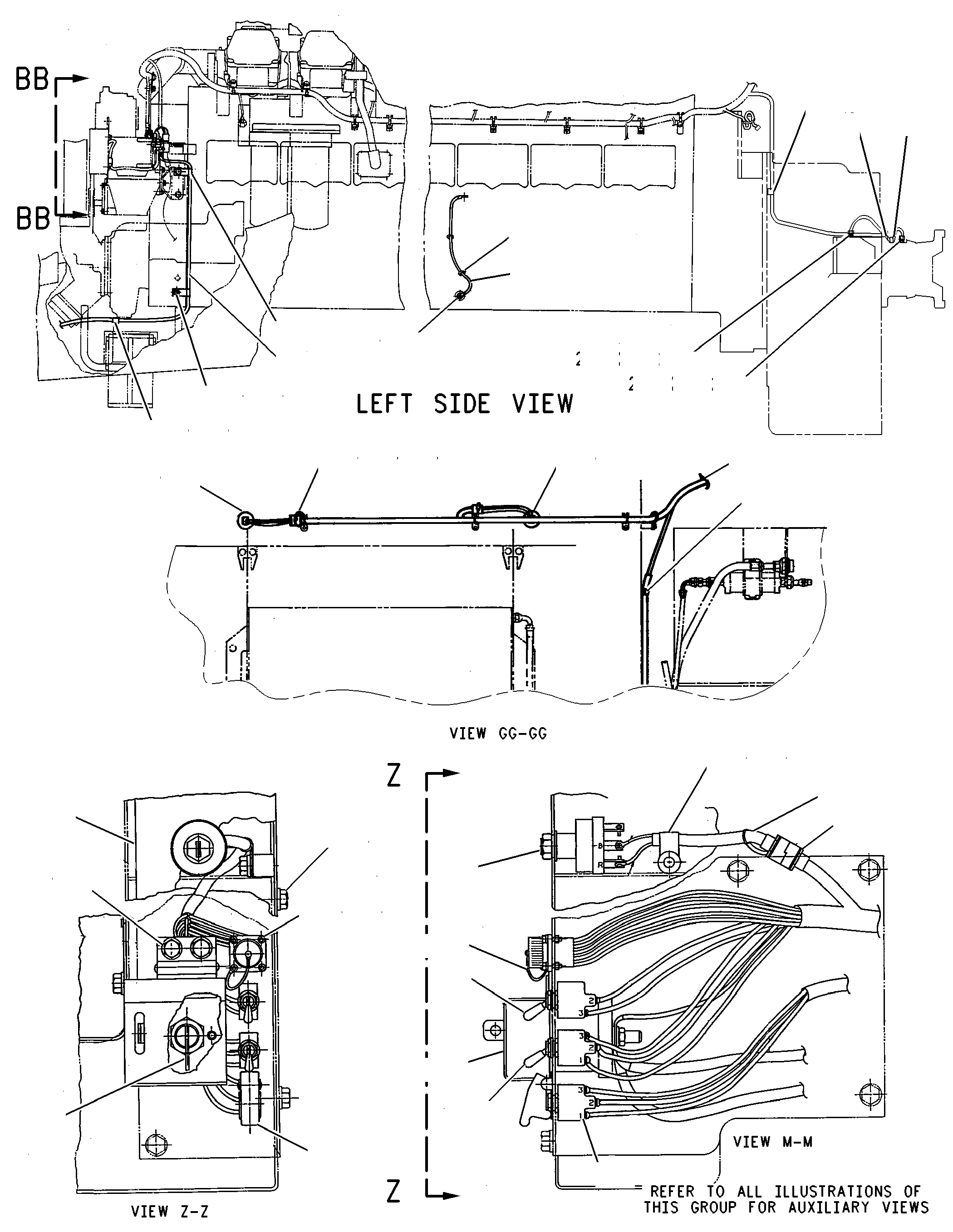

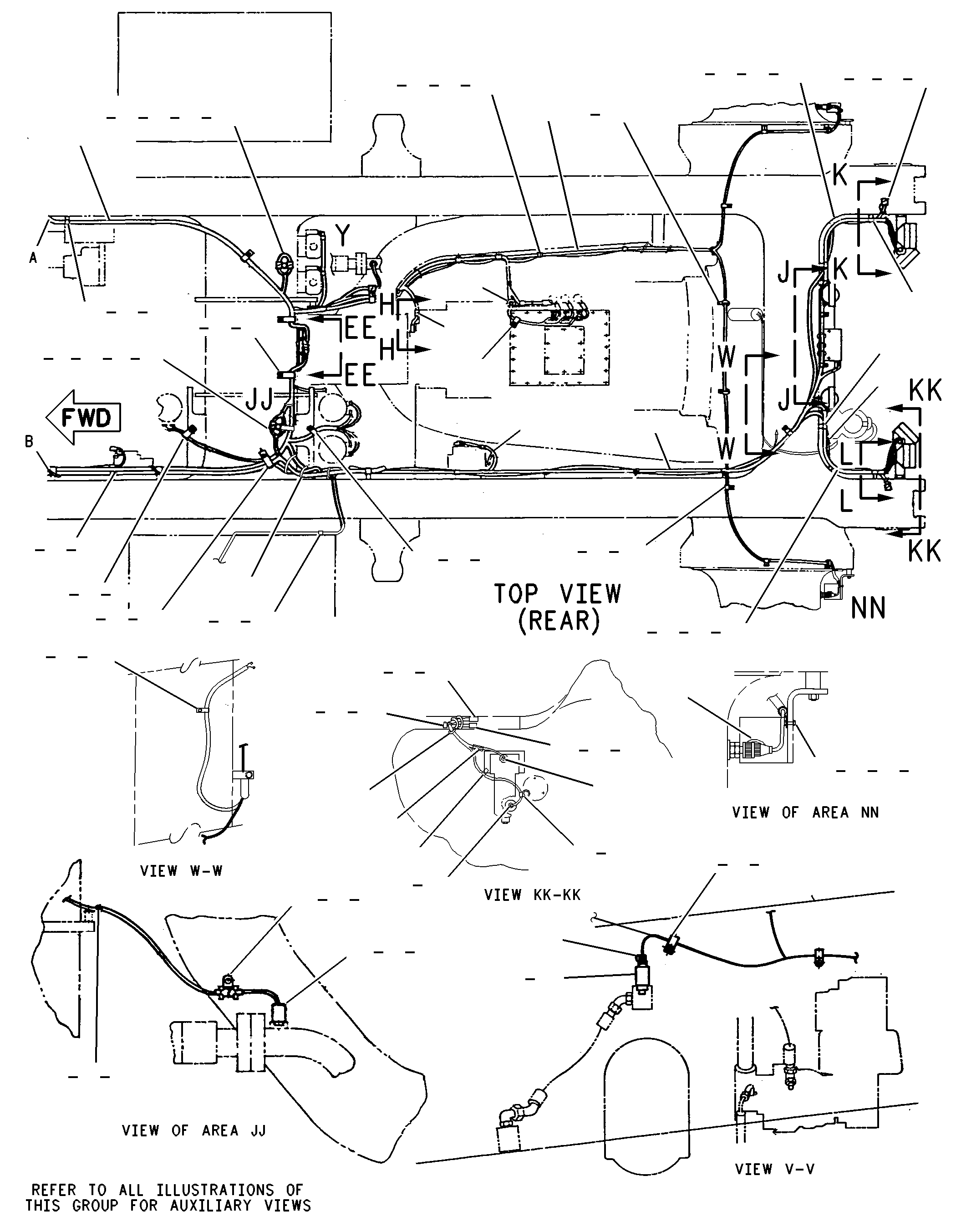

115-6477 BATTERY & WIRING GP -CHASSIS/VIMSS/N 7EK371-538
Group No: 115-6477
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4896 | 1 WASHER-HARD (10.2X18.5X2.5-MM THK) | 48 | |
| 3S8665 | 2 CLIP (LOOP) | 2 | |
| 5S7379 | 3 BOLT (3/8-16X0.875-IN) | 19 | |
| 4D7794 | 4 CLIP | 4 | |
| 5M3062 | 5 BOLT (3/8-16X0.75-IN) | 26 | |
| 7K1181 | 6 STRAP-CABLE | 2 | |
| 9G9150 | 7 CLIP | 4 | |
| 9G9152 | 8 CLIP | 2 | |
| 8M2770 | 9 CLIP (LOOP) | 3 | |
| 1S0994 | 10 CLIP (LOOP) | 4 | |
| 5K3294 | 11 CLIP | 2 | |
| 5P6029 | 12 LOCKWIRE | ||
| 1157503 | 13 HARNESS AS (BATTERY CABLE) | 1 | |
| 5P9085 | 14 CLIP (LOOP) | 1 | |
| 5P8167 | 15 BOLT (3/8-16X0.625-IN) | 2 | |
| 4S4456 | 16 CLIP | 9 | |
| 1175883 | 17 CABLE AS | 1 | |
| 1167160 | 18 CABLE AS-BATTERY | 1 | |
| 5T9414 | 19 HARNESS AS (TURN SIGNAL, RH) | 1 | |
| 5P1506 | 20 HOSE | ||
| 7D4092 | 21 CLIP | 5 | |
| 1157466 | 22 HARNESS AS (LADDER, LH) | 1 | |
| 5T9413 | 23 HARNESS AS (TURN SIGNAL)(LH) | 1 | |
| 3S2093 | 24 STRAP-CABLE | 4 | |
| 1003055 | 25 SENSOR GP-TEMPERATURE (FRONT BRAKE OIL) | 2 | |
| 3J1907 | 26 SEAL-O-RING | 3 | |
| 3T3047 | 27 CLIP AS | 2 | |
| 3T3967 | 28 LAMP GP-SIGNAL (PARKING, TURN)(AMBER) | 4 | |
| 7S4346 | 29 SCREW-MACHINE (10-32X0.5-IN) | 12 | |
| 9F5599 | 30 LOCKWASHER | 24 | |
| 4B2049 | 31 NUT (10-32-THD) | 12 | |
| 4D1544 | 32 CLIP | 4 | |
| 3E6461 | 33 SWITCH AS-PRESSURE (STEERING PUMP OIL)(HIGH) | 1 | |
| 5P1075 | 34 WASHER-HARD (10.2X22.5X3-MM THK) | 5 | |
| 5P9299 | 35 CLIP (LOOP) | 7 | |
| 5P9297 | 36 CLIP (LOOP) | 1 | |
| 3J7354 | 37 SEAL-O-RING | 1 | |
| 5P9617 | 38 ADAPTER | 1 | |
| 0338248 | 39 CLIP (LOOP) | 4 | |
| 9M4995 | 40 CLIP | 2 | |
| 9X3495 | 41 CLIP AS | 2 | |
| 3M7212 | 42 TERMINAL-BATTERY | 1 | |
| 1306931 | 43 HARNESS AS (REAR LIGHTS) | 1 | |
| 7K1181 | 44 STRAP-CABLE | 17 | |
| 8T4896 | 45 WASHER-HARD (10.2X18.5X2.5-MM THK) | 30 | |
| 8W1087 | 46 TUBE | 2 | |
| 3S8665 | 47 CLIP (LOOP) | 4 | |
| 5S7379 | 48 BOLT (3/8-16X0.875-IN) | 9 | |
| 4D7794 | 49 CLIP | 7 | |
| 5M3062 | 50 BOLT (3/8-16X0.75-IN) | 17 | |
| 9G9154 | 51 CLIP | 2 | |
| 9G9152 | 52 CLIP | 4 | |
| 4S4455 | 53 CLIP | 3 | |
| 8M2770 | 54 CLIP (LOOP) | 4 | |
| 9M8406 | 55 CLIP (LOOP) | 14 | |
| 7N3718 | 56 CLIP | 2 | |
| 5K3294 | 57 CLIP | 2 | |
| 5P6029 | 58 LOCKWIRE | ||
| 1307313 | 59 HARNESS AS-CHASSIS (AETA, DIFFERENTIAL OIL FILTER) | 1 | |
| 1307314 | 60 HARNESS AS-SENSOR (AETA, DIFFERENTIAL OIL FILTER) | 1 | |
| 3S2093 | 61 STRAP-CABLE | 15 | |
| 5K8451 | 62 CLIP (LOOP) | 2 | |
| 1003055 | 63 SENSOR GP-TEMPERATURE (REAR BRAKE OIL)(LH) | 1 | |
| 3J1907 | 64 SEAL-O-RING | 3 | |
| 3E7809 | 65 SWITCH AS-PRESSURE (STEERING PUMP OIL)(LOW) | 1 | |
| 5P9297 | 66 CLIP (LOOP) | 1 | |
| 1159175 | 67 HARNESS AS (REAR PAYLOAD) | 1 | |
| 6D2834 | 68 CLIP | 1 | |
| 5P1075 | 69 WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 4L6454 | 70 BOLT (3/8-16X1-IN) | 5 | |
| 5S7383 | 71 BOLT (3/8-16X1.75-IN) | 2 | |
| 9X3495 | 72 CLIP AS | 1 | |
| 1306748 | 73 HARNESS AS-MONITOR (VIMS) | 1 | |
| 1114610 | 74 HARNESS AS-MONITOR (VIMS, CAT DATA LINK JUMPER) | 1 | |
| 1232993 | 75 SWITCH GP-LIQUID LEVEL (REAR AXLE OIL) | 1 | |
| 2M9780 | 76 SEAL-O-RING | 1 | |
| 1134339 | 77 SPACER (10.5X18X21-MM THK) | 2 | |
| 6V8801 | 78 NUT (3/8-16-THD) | 2 | |
| 9X7781 | 79 SWITCH GP-BYPASS (REAR AXLE OIL FILTER) | 1 | |
| 1S0994 | 80 CLIP (LOOP) | 6 | |
| 9U2277 | 81 CLIP AS | 1 | |
| 1129778 | 82 SENSOR GP-PRESSURE (DIFFERENTIAL OIL) | 1 | |
| 9X0262 | 83 ADAPTER | 1 | |
| 3J7354 | 84 SEAL-O-RING | 2 | |
| 1358833 | 85 WIRE AS (16-GA, BLACK) | 1 | |
| 0338248 | 86 CLIP (LOOP) | 1 | |
| 1003055 | 87 SENSOR GP-TEMPERATURE (DIFFERENTIAL OIL) | 1 | |
| 7K1181 | 88 STRAP-CABLE | 2 | |
| 8T4896 | 89 WASHER-HARD (10.2X18.5X2.5-MM THK) | 21 | |
| 5S7379 | 90 BOLT (3/8-16X0.875-IN) | 7 | |
| 4D7794 | 91 CLIP | 7 | |
| 5M3062 | 92 BOLT (3/8-16X0.75-IN) | 13 | |
| 9G9154 | 93 CLIP | 2 | |
| 3S8665 | 94 CLIP (LOOP) | 2 | |
| 9G9150 | 95 CLIP | 4 | |
| 4M7146 | 96 STRAP AS-GROUND | 1 | |
| 9G9152 | 97 CLIP | 3 | |
| 8M2770 | 98 CLIP (LOOP) | 1 | |
| 6V8189 | 99 NUT (5/16-18-THD) | 1 | |
| 8T4191 | 100 BOLT (M10X1.5X16-MM) | 2 | |
| 5P8167 | 101 BOLT (3/8-16X0.625-IN) | 2 | |
| 8T4121 | 102 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T9043 | 103 BOLT (5/16-18X0.875-IN) | 2 | |
| 9X9584 | 104 RESISTOR AS | 2 | |
| 8T4136 | 105 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4224 | 106 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 8T8911 | 107 BOLT (5/16-18X2-IN) | 2 | |
| 9X3207 | 108 TIMER GP | 1 | |
| 3S2093 | 109 STRAP-CABLE | 16 | |
| 4M0061 | 110 BOLT (5/16-18X0.75-IN) | 1 | |
| 2V3216 | 111 CLIP (LOOP) | 1 | |
| 9X8256 | 112 WASHER (6.6X12X2-MM THK) | 2 | |
| 8T4171 | 113 BOLT (M6X1X12-MM) | 2 | |
| 3E5239 | 114 RELAY AS (24-VOLT) | 1 | |
| 3T3048 | 115 CLIP AS | 3 | |
| 3V6909 | 116 BLOCK | 1 | |
| 3T0050 | 117 CLIP | 1 | |
| 4D6466 | 118 CLIP | 3 | |
| 7X1670 | 119 CONTROL GP-ELECTRONIC | 1 | |
| 7N8205 | HOUSING-PLUG | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 3E0461 | 120 CONTROL GP-ELECTRONIC (BODY POSITIONER) | 1 | |
| 9M8406 | 121 CLIP (LOOP) | 1 | |
| 4V4760 | 122 COVER | 1 | |
| 1179079 | 123 PLATE AS | 1 | |
| 1072282 | 124 LAMP GP-SIGNAL (24-VOLT)(BLUE) | 1 | |
| 5C2890 | 125 NUT (M6X1-THD) | 3 | |
| 8T4205 | 126 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 6D1641 | 127 CLIP (LOOP) | 1 | |
| 5P1075 | 128 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 1058827 | 129 SUPPRESSOR GP-ELECTRONIC (A/C) | 1 | |
| 4L6454 | 130 BOLT (3/8-16X1-IN) | 1 | |
| 3D7854 | 131 SPACER | 1 | |
| 6D2256 | 132 SPACER | 1 | |
| 7K1181 | 133 STRAP-CABLE | 11 | |
| 6D4636 | 134 CLIP (LOOP) | 3 | |
| 6V8188 | 135 NUT (1/2-13-THD) | 1 | |
| 3J4818 | 136 LOCKWASHER | 1 | |
| 8T4896 | 137 WASHER-HARD (10.2X18.5X2.5-MM THK) | 26 | |
| 4D1326 | 138 LOCKWASHER | 2 | |
| 5S7379 | 139 BOLT (3/8-16X0.875-IN) | 17 | |
| 5P9299 | 140 CLIP (LOOP) | 8 | |
| 5M3062 | 141 BOLT (3/8-16X0.75-IN) | 9 | |
| 1153071 | 142 CLIP AS-CONNECTING (6-PIN) | 1 | |
| 9G9150 | 143 CLIP | 3 | |
| 9M8406 | 144 CLIP (LOOP) | 1 | |
| 1242943 | 145 HARNESS AS-TRANSMISSION (CHASSIS) | 1 | |
| 5P6029 | 146 LOCKWIRE | ||
| 5P9085 | 147 CLIP (LOOP) | 3 | |
| 8W2686 | 148 BRACKET | 1 | |
| 6N7989 | 149 LAMP GP-FLOOD (RH ENGINE LAMP) | 1 | |
| 4S4456 | 150 CLIP | 2 | |
| 5P1506 | 151 HOSE | ||
| 7D4092 | 152 CLIP | 6 | |
| 3E6955 | 153 SENSOR GP-SPEED (TC OUTPUT) | 1 | |
| 6T4409 | 154 GUARD AS | 1 | |
| 3K0360 | 155 SEAL-O-RING | 1 | |
| 3S2093 | 156 STRAP-CABLE | 1 | |
| 1003055 | 157 SENSOR GP-TEMPERATURE (REAR BRAKE OIL)(RH) | 1 | |
| 3J1907 | 158 SEAL-O-RING | 1 | |
| 5P1075 | 159 WASHER-HARD (10.2X22.5X3-MM THK) | 5 | |
| 8M2770 | 160 CLIP (LOOP) | 2 | |
| 3T3045 | 161 CLIP AS | 2 | |
| 4L6454 | 162 BOLT (3/8-16X1-IN) | 2 | |
| 2T3019 | 163 CLIP (LOOP) | 2 | |
| 9X3495 | 164 CLIP AS | 1 | |
| 4S6668 | 165 CLIP (LOOP) | 1 | |
| 4D6466 | 166 CLIP | 2 | |
| 1153072 | 167 CLIP AS-CONNECTING (8-PIN) | 1 | |
| 9X4381 | 168 LAMP GP-FLOOD (24-VOLT)(BACK-UP) | 2 | |
| 3D7854 | 169 SPACER | 1 | |
| 6D2256 | 170 SPACER | 1 | |
| 7K1181 | 171 STRAP-CABLE | 5 | |
| 6V1119 | 172 LAMP GP-SIGNAL (24-VOLT)(AMBER) | 2 | |
| 6V8188 | 173 NUT (1/2-13-THD) | 12 | |
| 3J4818 | 174 LOCKWASHER | 2 | |
| 1081289 | 175 LAMP GP-SIGNAL (STOP, TAIL)(RED) | 2 | |
| 1236449 | 176 ALARM GP (BACK UP) | 1 | |
| 8T9379 | 177 BOLT (3/8-16X4.25-IN) | 2 | |
| 8T4896 | 178 WASHER-HARD (10.2X18.5X2.5-MM THK) | 44 | |
| 4D1326 | 179 LOCKWASHER | 2 | |
| 6V8801 | 180 NUT (3/8-16-THD) | 3 | |
| 3S8665 | 181 CLIP (LOOP) | 2 | |
| 5S7379 | 182 BOLT (3/8-16X0.875-IN) | 10 | |
| 4D7794 | 183 CLIP | 3 | |
| 5M3062 | 184 BOLT (3/8-16X0.75-IN) | 24 | |
| 9G9154 | 185 CLIP | 1 | |
| 1307091 | 186 HARNESS AS-MONITOR (VIMS) | 1 | |
| 9G9150 | 187 CLIP | 2 | |
| 9G9152 | 188 CLIP | 1 | |
| 9B7237 | 189 BOLT (3/8-16X1.25-IN) | 1 | |
| 4S4455 | 190 CLIP | 1 | |
| 8T4133 | 191 NUT (M10X1.5-THD) | 4 | |
| 8M2770 | 192 CLIP (LOOP) | 12 | |
| 7N3718 | 193 CLIP | 3 | |
| 6D4246 | 194 CLIP (LOOP) | 5 | |
| 5P9085 | 195 CLIP (LOOP) | 1 | |
| 8W2686 | 196 BRACKET | 1 | |
| 5P8167 | 197 BOLT (3/8-16X0.625-IN) | 9 | |
| 6N7989 | 198 LAMP GP-FLOOD (LH ENGINE LAMP) | 1 | |
| 8T4121 | 199 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 1167156 | 200 CABLE AS | 1 | |
| 3T5760 | 201 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 9D6635 | 202 HOLD-DOWN AS-BATTERY | 2 | |
| 4D8951 | 203 ROD | 4 | |
| 8T4223 | 204 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 3T3046 | 205 CLIP AS | 2 | |
| 1157458 | 206 HARNESS AS | 1 | |
| 3T4411 | 207 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 7D1649 | 208 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 7N9737 | 209 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | 210 PLUG-SEAL | 1 | |
| 7I4628 | 211 BRACKET AS | 4 | |
| 7V6063 | 212 BOLT AS | 16 | |
| 8K1433 | 213 GROMMET | 4 | |
| 9X7165 | 214 LAMP GP-HEAD (24-VOLT, LOW BEAM) | 6 | |
| 9X7166 | 215 LAMP GP-HEAD (HIGH BEAM) | 2 | |
| 8T8911 | 216 BOLT (5/16-18X2-IN) | 8 | |
| 3E9860 | 217 LOCKNUT (5/16-18-THD) | 8 | |
| 3S2093 | 218 STRAP-CABLE | 3 | |
| 1003055 | 219 SENSOR GP-TEMPERATURE (TRANSMISSION OIL) | 1 | |
| 3J1907 | 220 SEAL-O-RING | 1 | |
| 4M0061 | 221 BOLT (5/16-18X0.75-IN) | 8 | |
| 1169933 | 222 SWITCH AS-PRESSURE (TC INLET FILTER) | 1 | |
| 4D8123 | 223 CLIP (LOOP) | 2 | |
| 8E1550 | 224 BRACKET AS | 8 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 8E0368 | BRACKET | 1 | |
| 9X7781 | 225 SWITCH GP-BYPASS (XMSN LUBE SUPPLY & CHARGE FIL) | 2 | |
| 5P1075 | 226 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 3T3045 | 227 CLIP AS | 2 | |
| 7I5382 | 228 HARNESS AS | 2 | |
| 7I5124 | 229 HARNESS AS-FRONT LIGHTING | 2 | |
| 9M4995 | 230 CLIP | 1 | |
| 9X3495 | 231 CLIP AS | 2 | |
| 6V1228 | 232 CLIP | 2 | |
| 3T3047 | 233 CLIP AS | 1 | |
| 9N0869 | 234 WASHER-HARD (8.8X25.5X2-MM THK) | 4 | |
| 8T9658 | 235 SPACER (8.2X12.7X25.4-MM THK) | 4 | |
| 8C6561 | 236 BOLT (5/16-18X1.375-IN) | 4 | |
| 8T9655 | 237 MOUNT-ISOLATION | 8 | |
| 6V6649 | 238 MODULE GP-VIDS/VIMS INTERFACE | 2 | |
| 1178648 | 239 PLATE AS | 1 | |
| 5P4116 | 240 WASHER-HARD (8.8X20.5X2-MM THK) | 8 | |
| 1178649 | 241 BAR | 2 | |
| 4M5282 | 242 BOLT (1/4-20X1.5-IN) | 4 | |
| 9X6165 | 243 WASHER (6.5X22X2.5-MM THK) | 4 | |
| 8C5608 | 244 SPACER (6.5X9.5X25.4-MM THK) | 4 | |
| 8C5607 | 245 MOUNT-ISOLATION | 8 | |
| 2P1279 | 246 LOCKNUT (9/16-18-THD) | 1 | |
| 1183909 | 247 SENSOR GP-TEMPERATURE (AMBIENT AIR) | 1 | |
| 9X8250 | 248 CLIP (LOOP) | 1 | |
| 7K1181 | 249 STRAP-CABLE | 7 | |
| 8T4896 | 250 WASHER-HARD (10.2X18.5X2.5-MM THK) | 14 | |
| 4D7794 | 251 CLIP | 1 | |
| 5M3062 | 252 BOLT (3/8-16X0.75-IN) | 14 | |
| 8M2770 | 253 CLIP (LOOP) | 1 | |
| 7N3718 | 254 CLIP | 3 | |
| 5P6029 | 255 LOCKWIRE | ||
| 5P8167 | 256 BOLT (3/8-16X0.625-IN) | 1 | |
| 7N0718 | 257 SWITCH GP-DISCONNECT | 1 | |
| 1167156 | 258 CABLE AS | 1 | |
| 8T4223 | 259 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 4D1836 | 260 SWITCH-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 8D2676 | 261 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP) | 1 | |
| 3E6955 | 262 SENSOR GP-SPEED (TRANSMISSION INPUT) | 1 | |
| 3K0360 | 263 SEAL-O-RING | 1 | |
| 3S2093 | 264 STRAP-CABLE | 2 | |
| 1003055 | 265 SENSOR GP-TEMPERATURE (TC OIL) | 1 | |
| 3J1907 | 266 SEAL-O-RING | 1 | |
| 7I4821 | 267 HARNESS AS (ENGINE SHUTDOWN)(ENGINE SHUTDOWN) | 1 | |
| 8T9383 | 268 BOLT (1/2-13X0.75-IN) | 1 | |
| 6B4540 | 269 NUT (4-40-THD) | 4 | |
| 6D3033 | 270 SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 8D9537 | 271 CAP-DUST | 1 | |
| 3T3048 | 272 CLIP AS | 1 | |
| 3E5169 | 273 GUARD-SWITCH | 1 | |
| 2A7321 | 274 BOX AS | 1 | |
| 8F8551 | HINGE-BUTT | 1 | |
| 5P1075 | 275 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 6V9497 | 276 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 5K3294 | 277 CLIP | 2 | |
| 9X3495 | 278 CLIP AS | 1 | |
| 1106150 | 279 HARNESS AS-SWITCH | 1 | |
| 9G7641 | 280 SWITCH GP-START (ENGINE, KEY)(ENGINE)(KEY) | 1 | |
| 1113794 | 281 SENSOR GP-COOLANT LEVEL (JACKET WATER) | 1 | |
| 4P7581 | 282 CLIP (LADDER) | 4 | |
| 1S0994 | 283 CLIP (LOOP) | 2 | |
| 1106149 | 284 HARNESS AS (COOLANT LEVEL)(COOLANT LOSS)(VIMS) | 1 | |
| 1182082 | 285 COVER AS | 1 | |
| 8F9836 | BOSS (3/8-16-THD) | 1 | |
| 4D1836 | 286 SWITCH-TOGGLE (LADDER ACCESS LAMP) | 1 | |
| 1113794 | 287 SENSOR GP-COOLANT LEVEL (AFTERCOOLER) | 1 |
