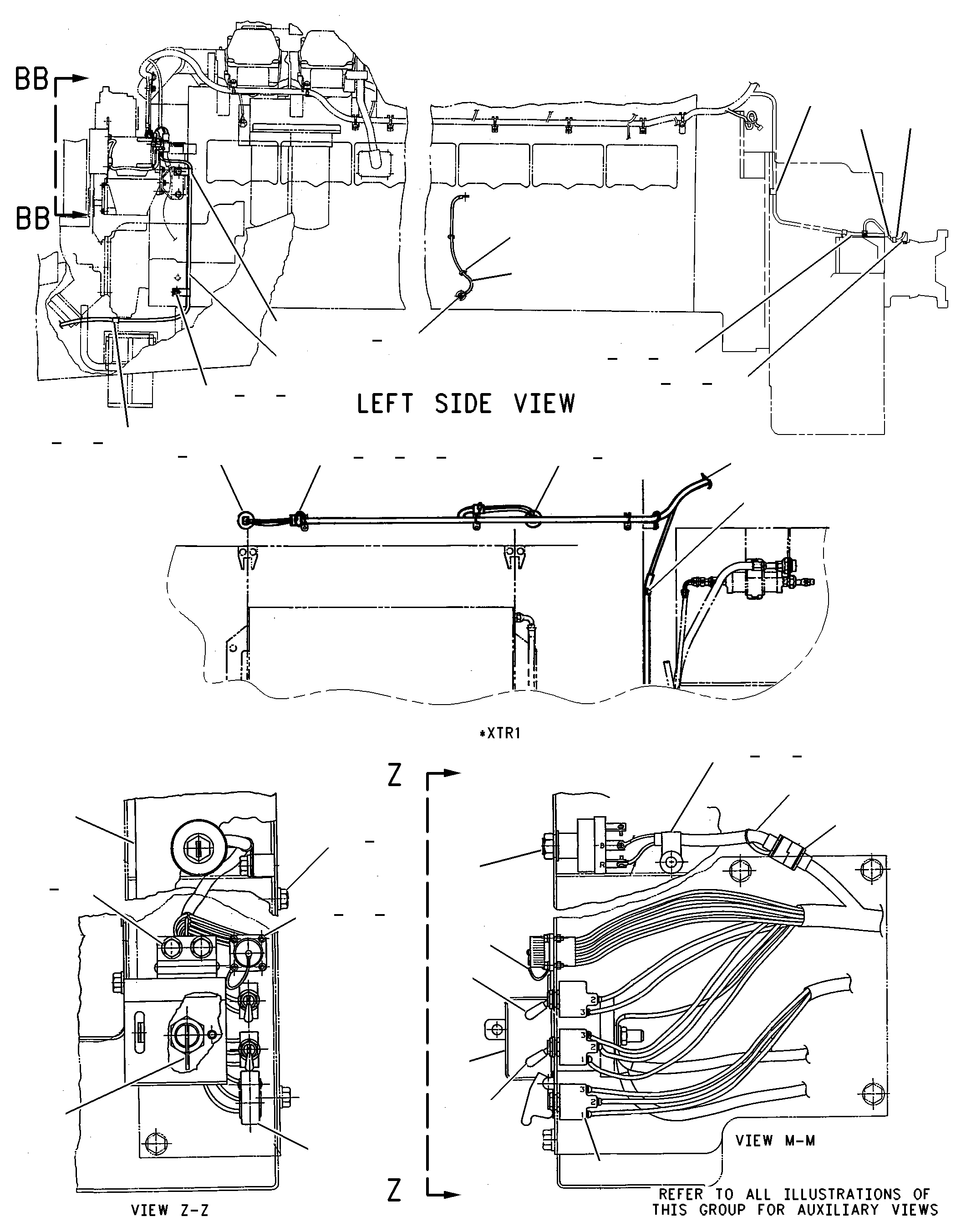

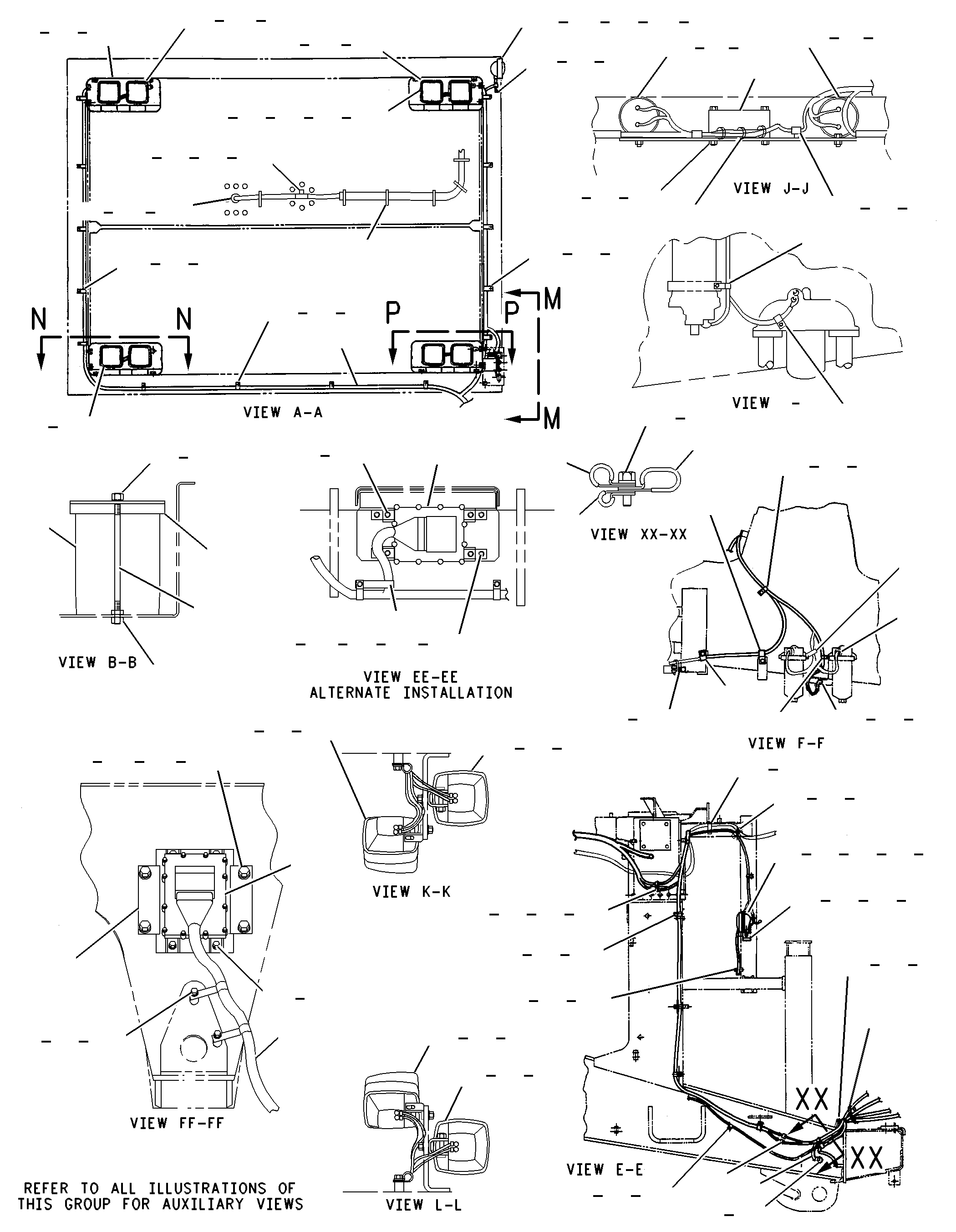

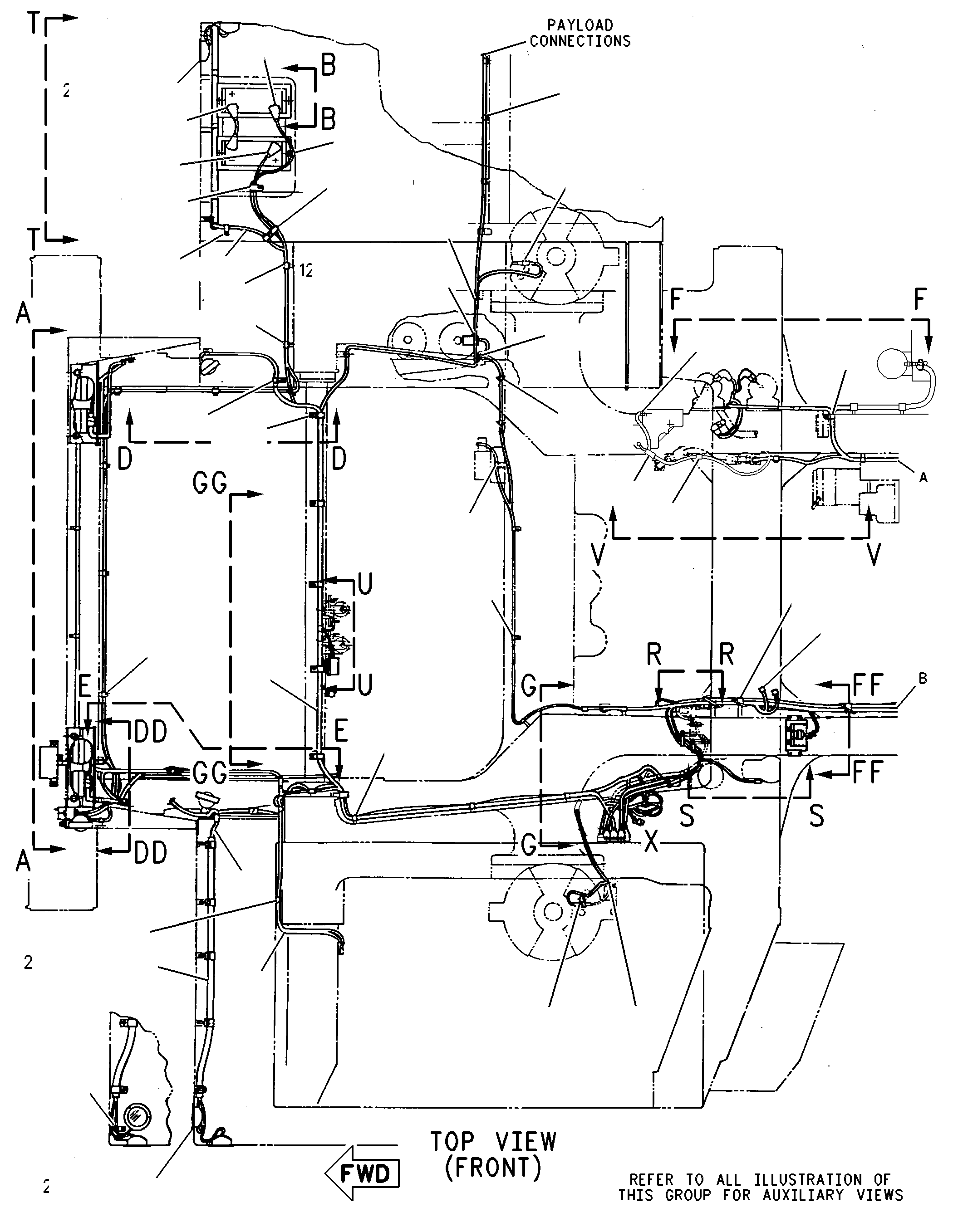

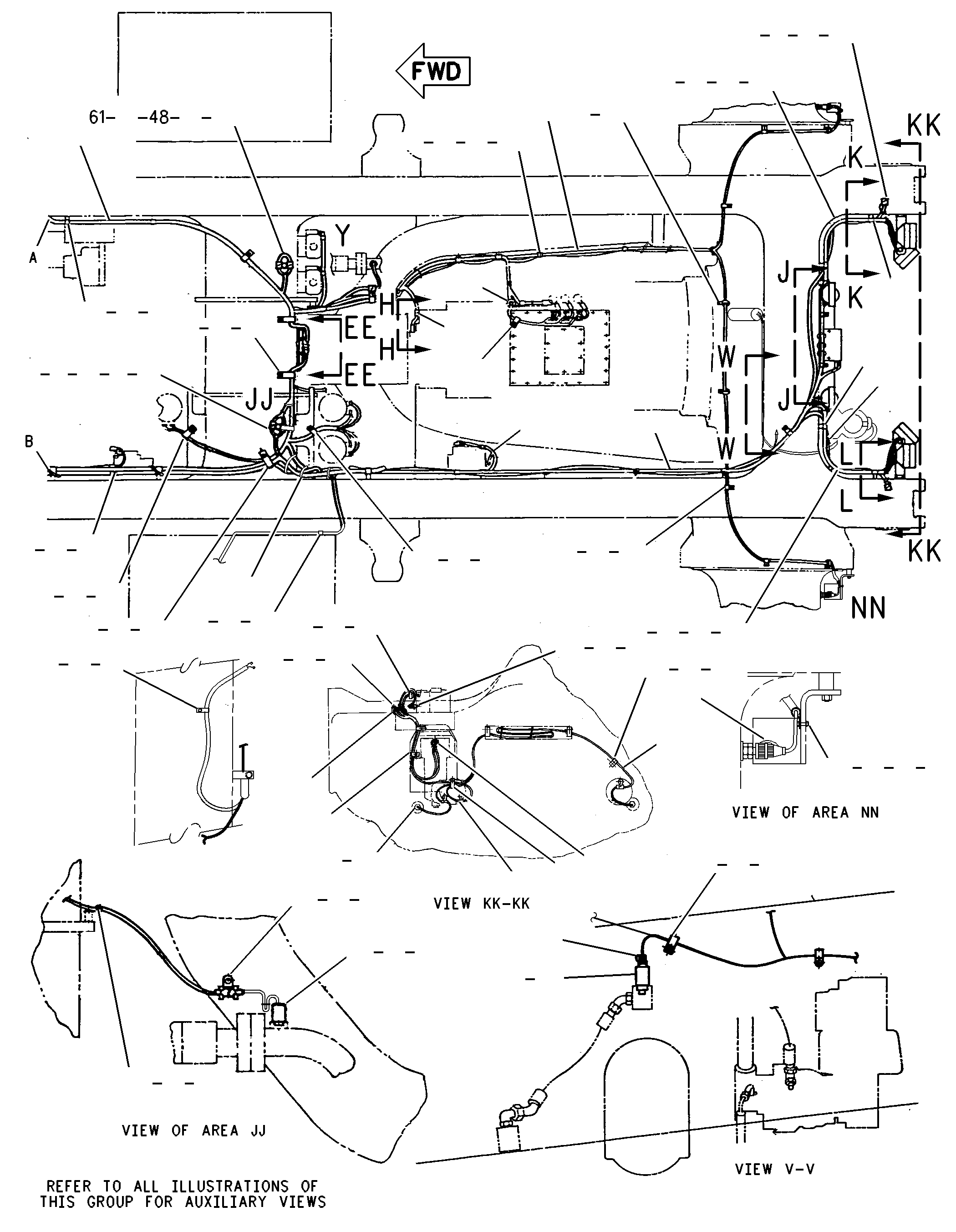

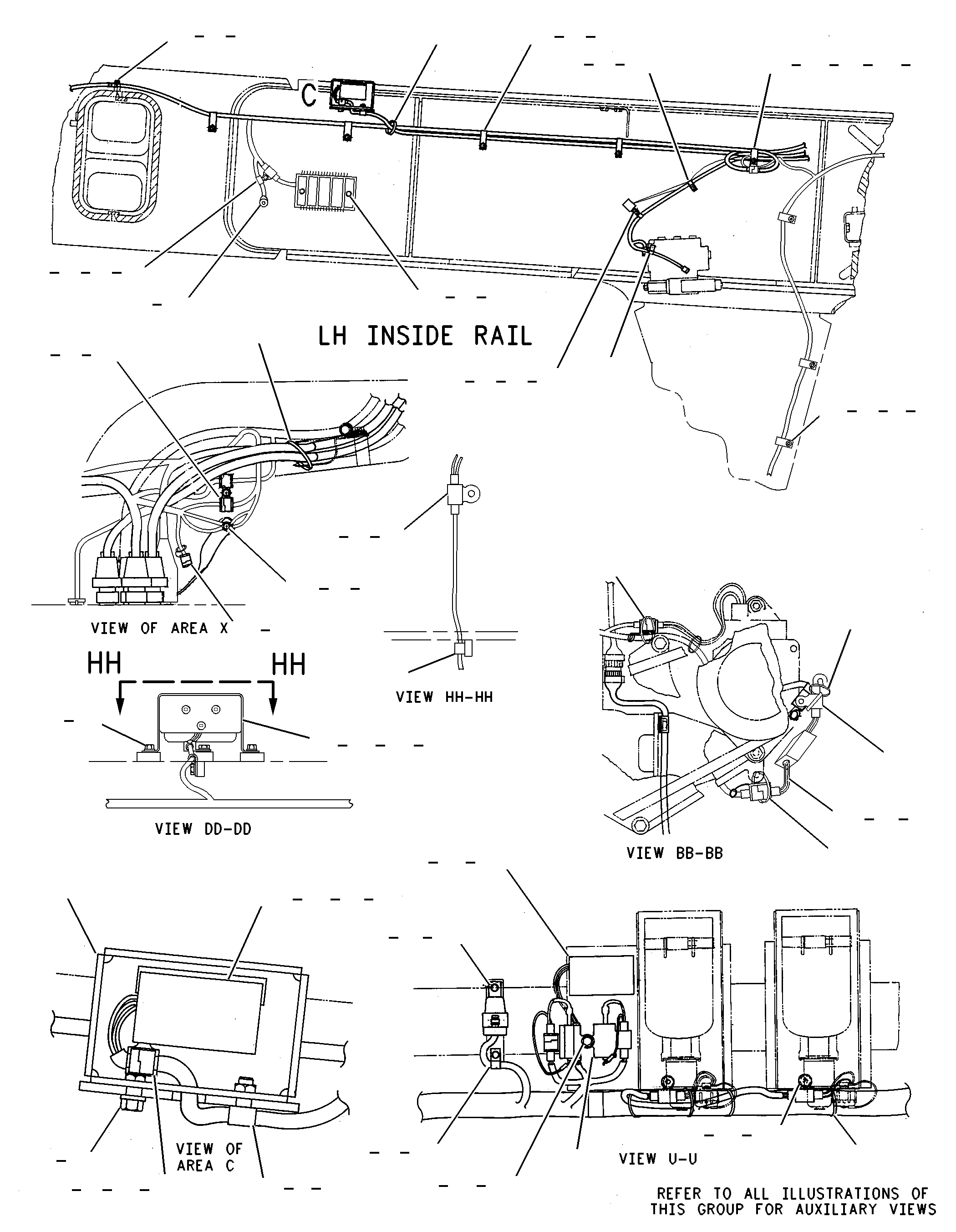

115-6477 BATTERY & WIRING GP -CHASSIS/VIMSS/N 7EK539-650

Group No: 115-6477
Part NumberPart NameQty
8T48961 WASHER-HARD (10.2X18.5X2.5-MM THK)48
3S86652 CLIP (LOOP)2
5S73793 BOLT (3/8-16X0.875-IN)43
4D77944 CLIP4
6D42445 CLIP (LOOP)5
7K11816 STRAP-CABLE2
9G91507 CLIP4
9G91528 CLIP2
8M27709 CLIP (LOOP)3
1S099410 CLIP (LOOP)4
5K329411 CLIP2
5P602912 LOCKWIRE
115750313 HARNESS AS (BATTERY CABLE)1
5P908514 CLIP (LOOP)1
5P816715 BOLT (3/8-16X0.625-IN)2
4S445616 CLIP4
117588317 CABLE AS1
116716018 CABLE AS-BATTERY1
5T941419 HARNESS AS (TURN SIGNAL, RH)1
5P150620 HOSE
7D409221 CLIP5
115746622 HARNESS AS (LADDER, LH)1
5T941323 HARNESS AS (TURN SIGNAL)(LH)1
3S209324 STRAP-CABLE4
100305525 SENSOR GP-TEMPERATURE (FRONT BRAKE OIL)2
3J190726 SEAL-O-RING3
3T304727 CLIP AS2
3T396728 LAMP GP-SIGNAL (PARKING, TURN)(AMBER)4
7S434629 SCREW-MACHINE (10-32X0.5-IN)12
9F559930 LOCKWASHER24
4B204931 NUT (10-32-THD)12
4D154432 CLIP4
3E646133 SWITCH AS-PRESSURE (STEERING PUMP OIL)(HIGH)1
5P107534 WASHER-HARD (10.2X22.5X3-MM THK)5
5P929935 CLIP (LOOP)7
5P929736 CLIP (LOOP)1
3J735437 SEAL-O-RING1
5P961738 ADAPTER1
033824839 CLIP (LOOP)4
9M499540 CLIP2
9X349541 CLIP AS2
3M721242 TERMINAL-BATTERY1
130693143 HARNESS AS (REAR LIGHTS)1
7K118144 STRAP-CABLE17
8T489645 WASHER-HARD (10.2X18.5X2.5-MM THK)31
8W108746 TUBE2
3S866547 CLIP (LOOP)4
5S737948 BOLT (3/8-16X0.875-IN)27
4D779449 CLIP7
5P908550 CLIP (LOOP)3
9G915451 CLIP2
9G915252 CLIP4
4S445553 CLIP3
8M277054 CLIP (LOOP)4
9M840655 CLIP (LOOP)14
9X858256 CLIP (LOOP)1
5K329457 CLIP2
5P602958 LOCKWIRE
130731359 HARNESS AS-CHASSIS (AETA, DIFFERENTIAL OIL FILTER)1
130731460 HARNESS AS-SENSOR (AETA, DIFFERENTIAL OIL FILTER)1
3S209361 STRAP-CABLE15
5K845162 CLIP (LOOP)2
100305563 SENSOR GP-TEMPERATURE (REAR BRAKE OIL)(LH)1
3J190764 SEAL-O-RING3
3E780965 SWITCH AS-PRESSURE (STEERING PUMP OIL)(LOW)1
7S424466 CLIP2
115917567 HARNESS AS (REAR PAYLOAD)1
6D283468 CLIP1
5P107569 WASHER-HARD (10.2X22.5X3-MM THK)2
4L645470 BOLT (3/8-16X1-IN)5
5S738371 BOLT (3/8-16X1.75-IN)2
9X349572 CLIP AS1
130674873 HARNESS AS-MONITOR (VIMS)1
111461074 HARNESS AS-MONITOR (VIMS, CAT DATA LINK JUMPER)1
123299375 SWITCH GP-LIQUID LEVEL (REAR AXLE OIL)2
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
2M978076 SEAL-O-RING2
113433977 SPACER (10.5X18X21-MM THK)2
6V880178 NUT (3/8-16-THD)2
9X778179 SWITCH GP-BYPASS (REAR AXLE OIL FILTER)1
1S099480 CLIP (LOOP)6
9U227781 CLIP AS3
112977882 SENSOR GP-PRESSURE (DIFFERENTIAL OIL)1
9X026283 ADAPTER1
3J735484 SEAL-O-RING2
134249285 HARNESS AS-MONITOR (DIFFERENTIAL OIL LEVEL)1
033824886 CLIP (LOOP)1
100305587 SENSOR GP-TEMPERATURE (REAR AXLE OIL)1
7K118188 STRAP-CABLE2
8T489689 WASHER-HARD (10.2X18.5X2.5-MM THK)21
5S737990 BOLT (3/8-16X0.875-IN)18
4D779491 CLIP7
5M306292 BOLT (3/8-16X0.75-IN)2
9G915493 CLIP2
3S866594 CLIP (LOOP)2
9G915095 CLIP3
4M714696 STRAP AS-GROUND1
9G915297 CLIP3
8M277098 CLIP (LOOP)1
6V818999 NUT (5/16-18-THD)1
8T4191100 BOLT (M10X1.5X16-MM)2
5P8167101 BOLT (3/8-16X0.625-IN)2
8T4121102 WASHER-HARD (11X21X2.5-MM THK)3
8T9043103 BOLT (5/16-18X0.875-IN)2
9X9584104 RESISTOR AS2
8T4136105 BOLT (M10X1.5X25-MM)1
8T4224106 WASHER-HARD (8.8X16X2-MM THK)6
8T8911107 BOLT (5/16-18X2-IN)2
9X3207108 TIMER GP1
3S2093109 STRAP-CABLE16
4M0061110 BOLT (5/16-18X0.75-IN)1
2V3216111 CLIP (LOOP)1
9X8256112 WASHER (6.6X12X2-MM THK)2
8T4171113 BOLT (M6X1X12-MM)2
3E5239114 RELAY AS (24-VOLT)1
3T3048115 CLIP AS2
3V6909116 BLOCK1
3T0050117 CLIP1
4D6466118 CLIP3
7X1670119 CONTROL GP-ELECTRONIC1
7N8205HOUSING-PLUG1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)2
3E0461120 CONTROL GP-ELECTRONIC (BODY POSITIONER)1
9M8406121 CLIP (LOOP)1
4V4760122 COVER1
1179079123 PLATE AS1
1072282124 LAMP GP-SIGNAL (24-VOLT)(BLUE)1
5C2890125 NUT (M6X1-THD)3
8T4205126 WASHER-HARD (7.2X14.5X2-MM THK)3
6D1641127 CLIP (LOOP)1
5P1075128 WASHER-HARD (10.2X22.5X3-MM THK)1
1058827129 SUPPRESSOR GP-ELECTRONIC (A/C)1
4L6454130 BOLT (3/8-16X1-IN)1
3D7854131 SPACER1
6D2256132 SPACER1
7K1181133 STRAP-CABLE11
6D4636134 CLIP (LOOP)3
6V8188135 NUT (1/2-13-THD)1
3J4818136 LOCKWASHER1
8T4896137 WASHER-HARD (10.2X18.5X2.5-MM THK)26
4D1326138 LOCKWASHER2
5S7379139 BOLT (3/8-16X0.875-IN)26
5P9299140 CLIP (LOOP)8
1153072141 CLIP AS-CONNECTING (8-PIN)1
1153071142 CLIP AS-CONNECTING (6-PIN)1
9G9150143 CLIP3
9M8406144 CLIP (LOOP)1
1403618145 HARNESS AS-TRANSMISSION (CHASSIS)1
5P6029146 LOCKWIRE
5P9085147 CLIP (LOOP)3
8W2686148 BRACKET1
6N7989149 LAMP GP-FLOOD (RH ENGINE LAMP)1
4S4456150 CLIP2
5P1506151 HOSE
7D4092152 CLIP6
3E6955153 SENSOR GP-SPEED (TC OUTPUT)1
6T4409154 GUARD AS1
3K0360155 SEAL-O-RING1
4D6466156 CLIP2
1003055157 SENSOR GP-TEMPERATURE (REAR BRAKE OIL)(RH)1
3J1907158 SEAL-O-RING1
5P1075159 WASHER-HARD (10.2X22.5X3-MM THK)5
8M2770160 CLIP (LOOP)2
3T3045161 CLIP AS2
4L6454162 BOLT (3/8-16X1-IN)2
2T3019163 CLIP (LOOP)2
9X3495164 CLIP AS1
4S6668165 CLIP (LOOP)1
9X4381166 LAMP GP-FLOOD (24-VOLT)(BACK-UP)2
3D7854167 SPACER1
6D2256168 SPACER1
7K1181169 STRAP-CABLE5
6V1119170 LAMP GP-SIGNAL (24-VOLT)(AMBER)2
6V8188171 NUT (1/2-13-THD)12
3J4818172 LOCKWASHER2
1081289173 LAMP GP-SIGNAL (STOP, TAIL)(RED)2
1236449174 ALARM GP (BACK UP)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
5P5677WIRE (18-GA, BLACK)(0.6M)
8T9379175 BOLT (3/8-16X4.25-IN)2
8T4896176 WASHER-HARD (10.2X18.5X2.5-MM THK)44
4D1326177 LOCKWASHER2
6V8801178 NUT (3/8-16-THD)3
3S8665179 CLIP (LOOP)2
5S7379180 BOLT (3/8-16X0.875-IN)39
4D7794181 CLIP3
9X8250182 CLIP (LOOP)1
9G9154183 CLIP1
1307091184 HARNESS AS-MONITOR (VIMS)1
9G9150185 CLIP2
9G9152186 CLIP1
9B7237187 BOLT (3/8-16X1.25-IN)1
4S4455188 CLIP1
8T4133189 NUT (M10X1.5-THD)4
8M2770190 CLIP (LOOP)12
7N3718191 CLIP3
6D4246192 CLIP (LOOP)5
5P9085193 CLIP (LOOP)1
8W2686194 BRACKET1
5P8167195 BOLT (3/8-16X0.625-IN)9
6N7989196 LAMP GP-FLOOD (LH ENGINE LAMP)1
8T4121197 WASHER-HARD (11X21X2.5-MM THK)4
1167156198 CABLE AS1
3T5760199 BATTERY GP (12-VOLT, 750-CCA)2
9D6635200 HOLD-DOWN AS-BATTERY2
4D8951201 ROD4
8T4223202 WASHER-HARD (13.5X25.5X3-MM THK)6
3T3046203 CLIP AS2
1157458204 HARNESS AS1
3T4411205 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS)1
7D1649206 WASHER-HARD (13.5X32X5-MM THK)2
7N9737207 HOUSING-RECEPTACLE (14-GA TO 18-GA)1
9G3695208 PLUG-SEAL1
7I4628209 BRACKET AS4
7V6063210 BOLT AS16
8K1433211 GROMMET4
9X7165212 LAMP GP-HEAD (24-VOLT, LOW BEAM)6
9X7166213 LAMP GP-HEAD (HIGH BEAM)2
8T8911214 BOLT (5/16-18X2-IN)8
3E9860215 LOCKNUT (5/16-18-THD)8
3S2093216 STRAP-CABLE3
1003055217 SENSOR GP-TEMPERATURE (TRANSMISSION OIL)1
3J1907218 SEAL-O-RING1
4M0061219 BOLT (5/16-18X0.75-IN)8
1169933220 SWITCH AS-PRESSURE (TC INLET FILTER)1
4D8123221 CLIP (LOOP)2
8E1550222 BRACKET AS8
1F0750NUT-WELD (3/8-16-THD)1
8E0368BRACKET1
9X7781223 SWITCH GP-BYPASS (XMSN LUBE SUPPLY & CHARGE FIL)2
5P1075224 WASHER-HARD (10.2X22.5X3-MM THK)1
3T3045225 CLIP AS2
7I5382226 HARNESS AS2
7I5124227 HARNESS AS-FRONT LIGHTING2
9M4995228 CLIP1
9X3495229 CLIP AS2
6V1228230 CLIP2
3T3047231 CLIP AS1
9N0869232 WASHER-HARD (8.8X25.5X2-MM THK)4
8T9658233 SPACER (8.2X12.7X25.4-MM THK)4
8C6561234 BOLT (5/16-18X1.375-IN)4
8T9655235 MOUNT-ISOLATION8
6V6649236 MODULE GP-VIDS/VIMS INTERFACE2
1178648237 PLATE AS1
5P4116238 WASHER-HARD (8.8X20.5X2-MM THK)8
1178649239 BAR2
4M5282240 BOLT (1/4-20X1.5-IN)4
9X6165241 WASHER (6.5X22X2.5-MM THK)4
8C5608242 SPACER (6.5X9.5X25.4-MM THK)4
8C5607243 MOUNT-ISOLATION8
2P1279244 LOCKNUT (9/16-18-THD)1
1183909245 SENSOR GP-TEMPERATURE (AMBIENT AIR)1
7K1181246 STRAP-CABLE7
8T4896247 WASHER-HARD (10.2X18.5X2.5-MM THK)14
4D7794248 CLIP1
5S7379249 BOLT (3/8-16X0.875-IN)14
8M2770250 CLIP (LOOP)1
7N3718251 CLIP4
5P6029252 LOCKWIRE
5P8167253 BOLT (3/8-16X0.625-IN)1
7N0718254 SWITCH GP-DISCONNECT1
1167156255 CABLE AS1
8T4223256 WASHER-HARD (13.5X25.5X3-MM THK)1
4D1836257 SWITCH-TOGGLE (ENGINE SHUTDOWN)1
8D2676258 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP)1
3E6955259 SENSOR GP-SPEED (TRANSMISSION INPUT)1
3K0360260 SEAL-O-RING1
3S2093261 STRAP-CABLE2
1003055262 SENSOR GP-TEMPERATURE (TC OIL)1
3J1907263 SEAL-O-RING1
7I4821264 HARNESS AS (ENGINE SHUTDOWN)(ENGINE SHUTDOWN)1
8T9383265 BOLT (1/2-13X0.75-IN)1
6B4540266 NUT (4-40-THD)4
6D3033267 SCREW-SOCKET HEAD (4-40X0.5-IN)4
8D9537268 CAP-DUST1
3T3048269 CLIP AS1
3E5169270 GUARD-SWITCH1
2A7321271 BOX AS1
8F8551HINGE-BUTT1
5P1075272 WASHER-HARD (10.2X22.5X3-MM THK)1
6V9497273 WASHER-HARD (3.2X6X0.5-MM THK)4
5K3294274 CLIP1
9X3495275 CLIP AS1
1106150276 HARNESS AS-SWITCH1
9G7641277 SWITCH GP-START (ENGINE, KEY)(ENGINE)(KEY)1
1113794278 SENSOR GP-COOLANT LEVEL (JACKET WATER)1
4P7581279 CLIP (LADDER)4
1S0994280 CLIP (LOOP)2
1106149281 HARNESS AS (COOLANT LEVEL)(COOLANT LOSS)(VIMS)1
1182082282 COVER AS1
8F9836BOSS (3/8-16-THD)1
4D1836283 SWITCH-TOGGLE (LADDER ACCESS LAMP)1
1113794284 SENSOR GP-COOLANT LEVEL (AFTERCOOLER)1
1028802KIT-RECEPTACLE (2-PIN)1
