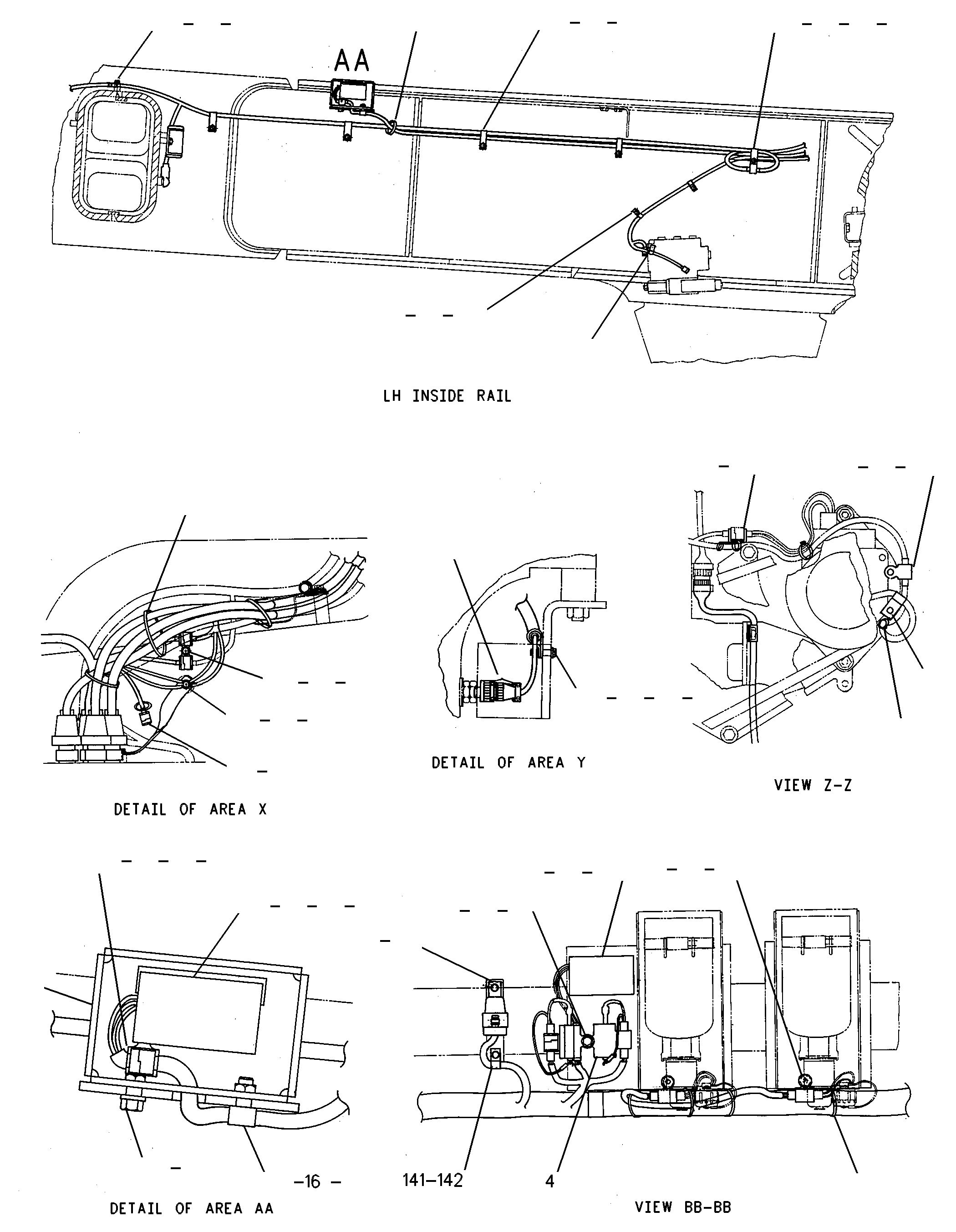

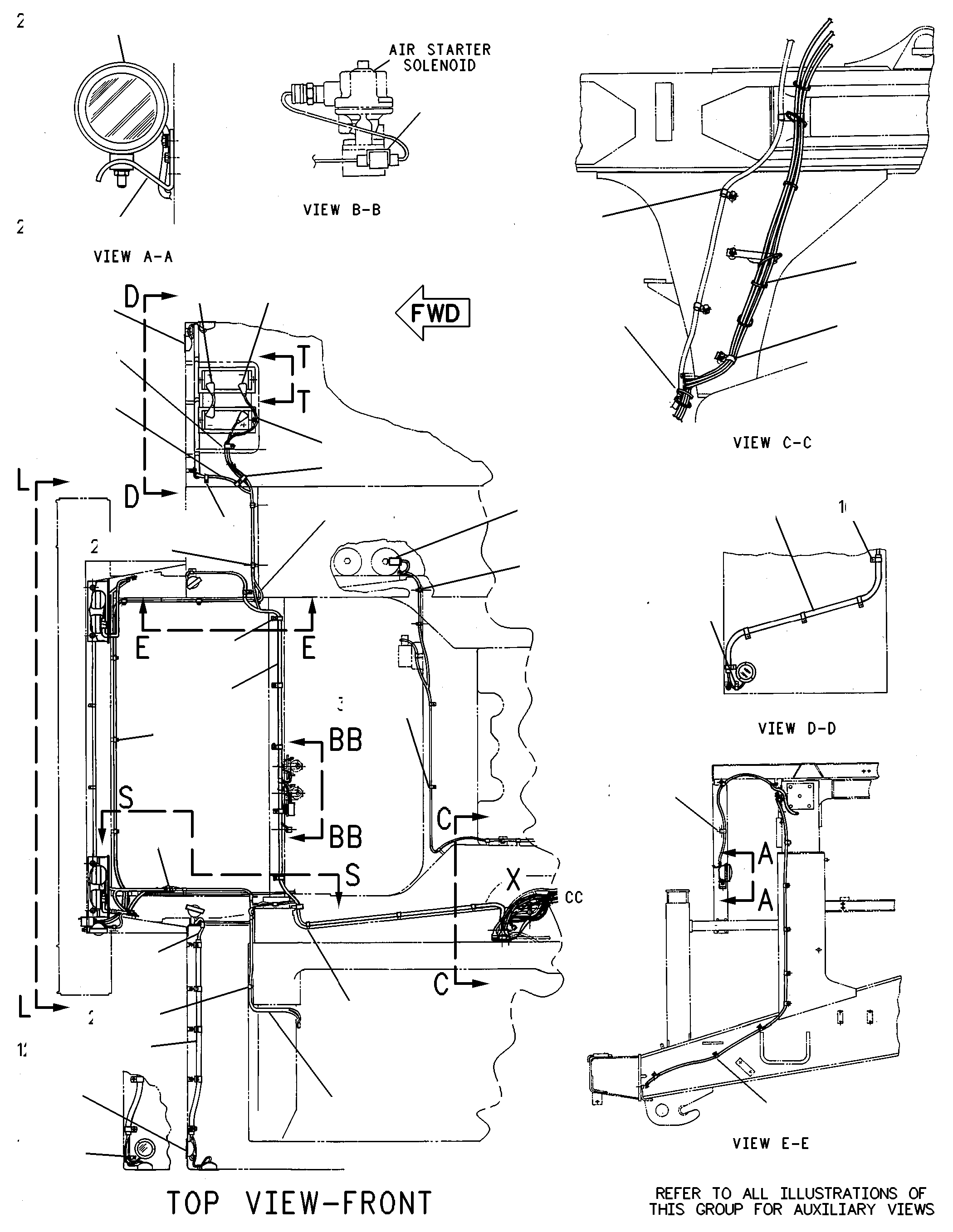

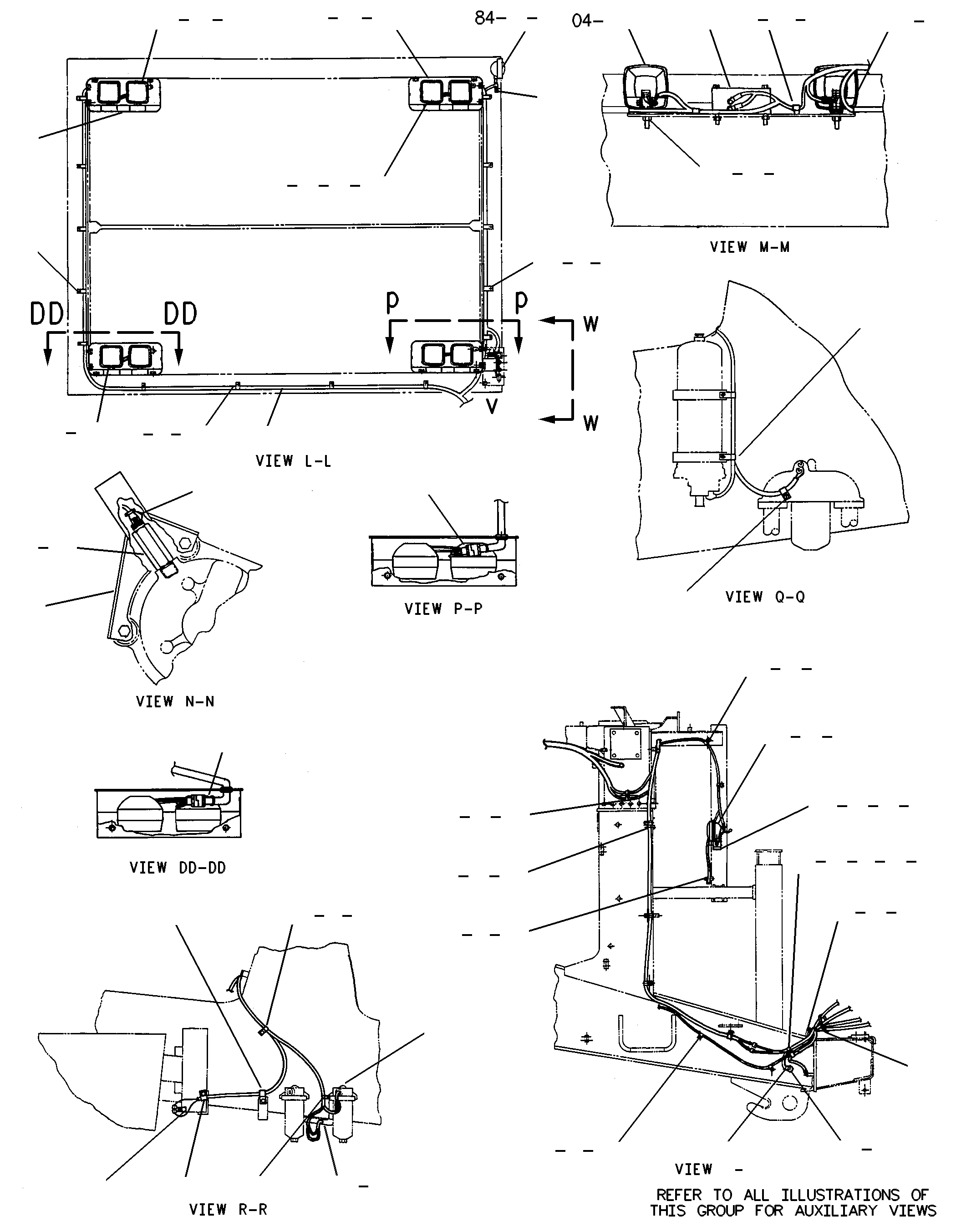

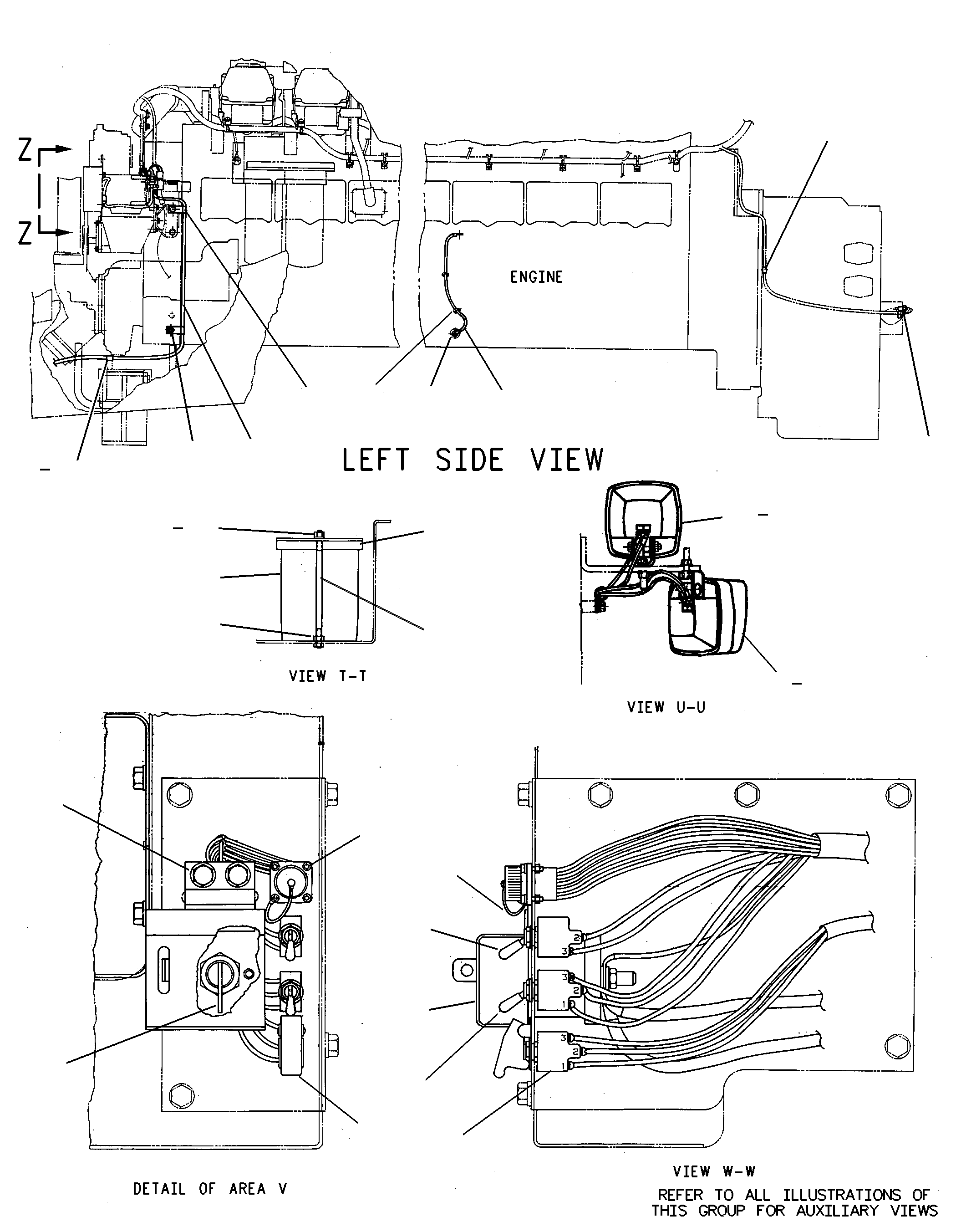

2A-6529 BATTERY & WIRING GP -CHASSIS/EMSS/N 7EK1-164

Group No: 2A-6529
Part NumberPart NameQty
5S73791 BOLT (3/8-16X0.875-IN)27
8T48962 WASHER-HARD (10.2X18.5X2.5-MM THK)50
5P92993 CLIP (LOOP)2
5M30624 BOLT (3/8-16X0.75-IN)27
5P92975 CLIP (LOOP)3
5T94146 HARNESS AS (TURN SIGNAL, RH)1
3T39677 LAMP GP-SIGNAL (PARKING, TURN)(AMBER)4
7S43468 SCREW-MACHINE (10-32X0.5-IN)12
9F5599LOCKWASHER24
4B2049NUT (10-32-THD)12
5T46669 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.3 M)
8N1725COVER AS-TERMINAL (RED)1
7N5274COVER AS-TERMINAL (BLACK)1
7X1591TERMINAL AS (POSITIVE)1
7X1592TERMINAL AS (NEGATIVE)
2A734710 CABLE AS-BATTERY (NEGATIVE)1
6V2369CABLE (4-GA, BLACK)(7.25 M)
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)(RING)1
7N5274COVER AS-TERMINAL (BLACK)1
0375197BOOT1
7X1592TERMINAL AS (NEGATIVE)1
5K329411 CLIP1
5P150612 HOSE (162 CM)
2A690713 HARNESS AS (BATTERY CABLE)1
9G915014 CLIP (TAB)7
4S445615 CLIP9
7D409216 CLIP11
5P150617 HOSE (168 CM)
4D779418 CLIP14
4L645419 BOLT (3/8-16X1-IN)2
5P107520 WASHER-HARD (10.2X22.5X3-MM THK)10
3D785421 SPACER (ROUND)1
6D2256SPACER (SQUARE)1
6V818822 NUT (1/2-13-THD)1
6N798923 LAMP GP-FLOOD (RH ENGINE LAMP)1
5P908524 CLIP (LOOP)4
8W268625 BRACKET1
3J481826 LOCKWASHER1
4D132627 LOCKWASHER2
7I461828 HARNESS AS (LADDER, LH)1
3S866529 CLIP (LOOP)(TAB)2
3T304630 CLIP AS2
5T941331 HARNESS AS (TURN SIGNAL)(LH)1
3J190732 SEAL-O-RING1
3E6461SWITCH AS-PRESSURE (STEERING PUMP OIL)(HIGH)1
3J7354SEAL-O-RING1
5P9617ADAPTER1
033824833 CLIP (LOOP)4
9M499534 CLIP2
6D463635 CLIP (LOOP)3
7K118136 STRAP-CABLE8
4M006137 BOLT (5/16-18X0.75-IN)2
5M306238 BOLT (3/8-16X0.75-IN)14
8T489639 WASHER-HARD (10.2X18.5X2.5-MM THK)32
4D779440 CLIP (28 MM LONG)2
7I461741 HARNESS AS (CHASSIS)1
4S445642 CLIP2
5S737943 BOLT (3/8-16X0.875-IN)16
8N384444 SENDER-TEMPERATURE (SERVICE BRAKE OIL)1
7N785445 SWITCH AS-TEMPERATURE (BRAKE OIL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
3K0360SEAL-O-RING1
5P602946 LOCKWIRE
102909647 HARNESS AS-TRANSMISSION (CHASSIS)1
9M840648 CLIP (LOOP)11
8W108749 TUBE2
3S8665CLIP (LOOP)4
9G915250 CLIP (SLOT)1
102885651 HARNESS AS (REAR LIGHTS)1
8M277052 CLIP (LOOP)11
7N371853 CLIP2
6D424754 CLIP1
3J190755 SEAL-O-RING2
3E780956 SWITCH AS-PRESSURE (STEERING PUMP OIL)(LOW)1
2T301957 CLIP (LOOP)2
5P107558 WASHER-HARD (10.2X22.5X3-MM THK)1
7X167059 CONTROL GP-ELECTRONIC1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)2
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7N8205HOUSING-PLUG1
5T941160 HARNESS AS (AETA)1
5T941261 HARNESS AS (CHASSIS, AETA)1
3S209362 STRAP-CABLE6
4D154463 CLIP4
4D812364 CLIP (LOOP)1
9G915465 CLIP (TAB)1
4L645466 BOLT (3/8-16X1-IN)3
5K329467 CLIP2
4S445568 CLIP2
8W268669 BRACKET1
9G915070 CLIP (TAB)2
5M306271 BOLT (3/8-16X0.75-IN)21
8T489672 WASHER-HARD (10.2X18.5X2.5-MM THK)40
4D779473 CLIP4
6N798974 LAMP GP-FLOOD (LH ENGINE LAMP)1
3D785475 SPACER (ROUND)1
6D2256SPACER (SQUARE)1
6V818876 NUT (1/2-13-THD)2
3J4818LOCKWASHER2
5P816777 BOLT (3/8-16X0.625-IN)9
8M277078 CLIP (LOOP)17
7I462879 BRACKET AS4
7V6063BOLT AS16
8K1433GROMMET4
9X716680 LAMP GP-HEAD (HIGH BEAM)2
9B723781 BOLT (3/8-16X1.25-IN)1
6D424682 CLIP (LOOP)5
8T891183 BOLT (5/16-18X2-IN)8
2R0504NUT (5/16-18-THD)8
3T441184 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS)1
7D1649WASHER-HARD (13.5X32X5-MM THK)2
7N973785 HOUSING-RECEPTACLE (14-GA TO 18-GA)1
9G3695PLUG-SEAL1
8E155086 BRACKET AS8
9F2978NUT-WELD (3/8-16-THD)2
8E0368BRACKET1
7I538287 HARNESS AS2
9X716588 LAMP GP-HEAD (24-VOLT, LOW BEAM)6
7I461989 HARNESS AS (HEADLIGHTS)1
3K036090 SEAL-O-RING2
9X778191 SWITCH GP-BYPASS (TRANSMISSION OIL FILTER)1
6T440992 GUARD AS1
4D812393 CLIP (LOOP)2
9M499594 CLIP1
3S209395 STRAP-CABLE1
3E695596 SENSOR GP-SPEED (TC OUTPUT)1
5S737997 BOLT (3/8-16X0.875-IN)10
5P908598 CLIP (LOOP)2
7N371899 CLIP2
7N4447100 SWITCH AS-PRESSURE (TC INLET FILTER)1
2M9780SEAL-O-RING1
3L8187LOCKWASHER2
4D2297SEAL-O-RING1
6V8368NUT (6-32-THD)2
5P6029101 LOCKWIRE
9G3341102 SWITCH AS-TEMPERATURE (TRANSMISSION FILTER ARM)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
4D1326103 LOCKWASHER2
6V1108104 LAMP GP-SIGNAL (24-VOLT)(STOP/TAIL)(RED)2
3S8665105 CLIP (LOOP)2
3T1815106 ALARM GP1
8T9379107 BOLT (3/8-16X4.25-IN)2
6V8801108 NUT (3/8-16-THD)2
5P1075109 WASHER-HARD (10.2X22.5X3-MM THK)1
8T4133110 NUT (M10X1.5-THD)2
3E4353WASHER-HARD (11X25X3-MM THK)2
0318761111 CABLE AS1
0375197BOOT2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
6V2369CABLE (4-GA, BLACK)(0.77 M)
3T0050112 CLIP2
3T3045113 CLIP AS4
7I5124114 HARNESS AS-FRONT LIGHTING2
4S4455115 CLIP1
8T4896116 WASHER-HARD (10.2X18.5X2.5-MM THK)3
5M3062BOLT (3/8-16X0.75-IN)3
8M2770117 CLIP (LOOP)1
4D9517118 CLIP1
8T4223WASHER-HARD (13.5X25.5X3-MM THK)1
8T9383BOLT (1/2-13X0.75-IN)1
7I4821119 HARNESS AS (ENGINE SHUTDOWN)(ENGINE SHUTDOWN)1
7N3718120 CLIP3
5P8167121 BOLT (3/8-16X0.625-IN)1
5P1075WASHER-HARD (10.2X22.5X3-MM THK)1
0318761122 CABLE AS1
0375197BOOT2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
6V2369CABLE (4-GA, BLACK)(0.77 M)
3S2093123 STRAP-CABLE2
7N7854124 SWITCH AS-TEMPERATURE (TC OIL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER (4.3MM ID)2
3K0360SEAL-O-RING1
6B4540125 NUT (4-40-THD)4
6D3033SCREW-SOCKET HEAD (4-40X0.5-IN)4
6V9497WASHER-HARD (3.2X6X0.5-MM THK)4
7N0718126 SWITCH GP-DISCONNECT1
3E5169127 GUARD-SWITCH1
8D9537128 CAP-DUST1
8D2676129 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP)1
2A7321130 BOX AS1
8F8551HINGE-BUTT1
4D1836131 SWITCH-TOGGLE (LADDER ACCESS LAMP)1
4D1836132 SWITCH-TOGGLE (ENGINE SHUTDOWN)1
9X4381133 LAMP GP-FLOOD (24-VOLT)(BACK-UP)2
6V1119134 LAMP GP-SIGNAL (24-VOLT)(AMBER)2
8T4133135 NUT (M10X1.5-THD)4
8T4121WASHER-HARD (11X21X2.5-MM THK)4
6V8188136 NUT (1/2-13-THD)8
8T4223137 WASHER-HARD (13.5X25.5X3-MM THK)4
9D6635138 HOLD-DOWN AS-BATTERY2
4D8951139 ROD4
3T5760140 BATTERY GP (12-VOLT, 750-CCA)2
8T4171141 BOLT (M6X1X12-MM)2
9X8256WASHER (6.6X12X2-MM THK)2
2V3216142 CLIP (LOOP)1
3E5239143 RELAY AS (24-VOLT)1
9X9584144 RESISTOR AS2
3S2093145 STRAP-CABLE12
8T9043146 BOLT (5/16-18X0.875-IN)2
8T4224147 WASHER-HARD (8.8X16X2-MM THK)6
9X3207148 TIMER GP1
9G9150149 CLIP (TAB)3
8T4191150 BOLT (M10X1.5X16-MM)2
8T4121151 WASHER-HARD (11X21X2.5-MM THK)3
8T4896152 WASHER-HARD (10.2X18.5X2.5-MM THK)15
6V8801153 NUT (3/8-16-THD)2
9M8406154 CLIP (LOOP)2
4L6454155 BOLT (3/8-16X1-IN)3
5P6029156 LOCKWIRE
9G9152157 CLIP (SLOT)2
8T4136158 BOLT (M10X1.5X25-MM)1
5S7379159 BOLT (3/8-16X0.875-IN)8
9G9154160 CLIP (TAB)3
3T3048161 CLIP AS2
5M3062162 BOLT (3/8-16X0.75-IN)4
7G1060163 STRAP AS-GROUND1
6V3265164 CLIP (3/8 HOLE)1
4V4760165 COVER1
6V8189166 NUT (5/16-18-THD)1
4M0061167 BOLT (5/16-18X0.75-IN)2
4D7794168 CLIP2
8T8911169 BOLT (5/16-18X2-IN)2
3V6909170 BLOCK1
3E0461171 CONTROL GP-ELECTRONIC (BODY POSITIONER)1
9X5617FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER)1
7N7782HOUSING-PLUG (14-GA TO 18-GA)1
4K6177172 CLIP3
2R1939173 CLIP (LOOP)2
8M2770174 CLIP (LOOP)2
3T0050175 CLIP1
6K2319176 CLIP (25 MM WIDE)1
