System And Components
Assembly
100%

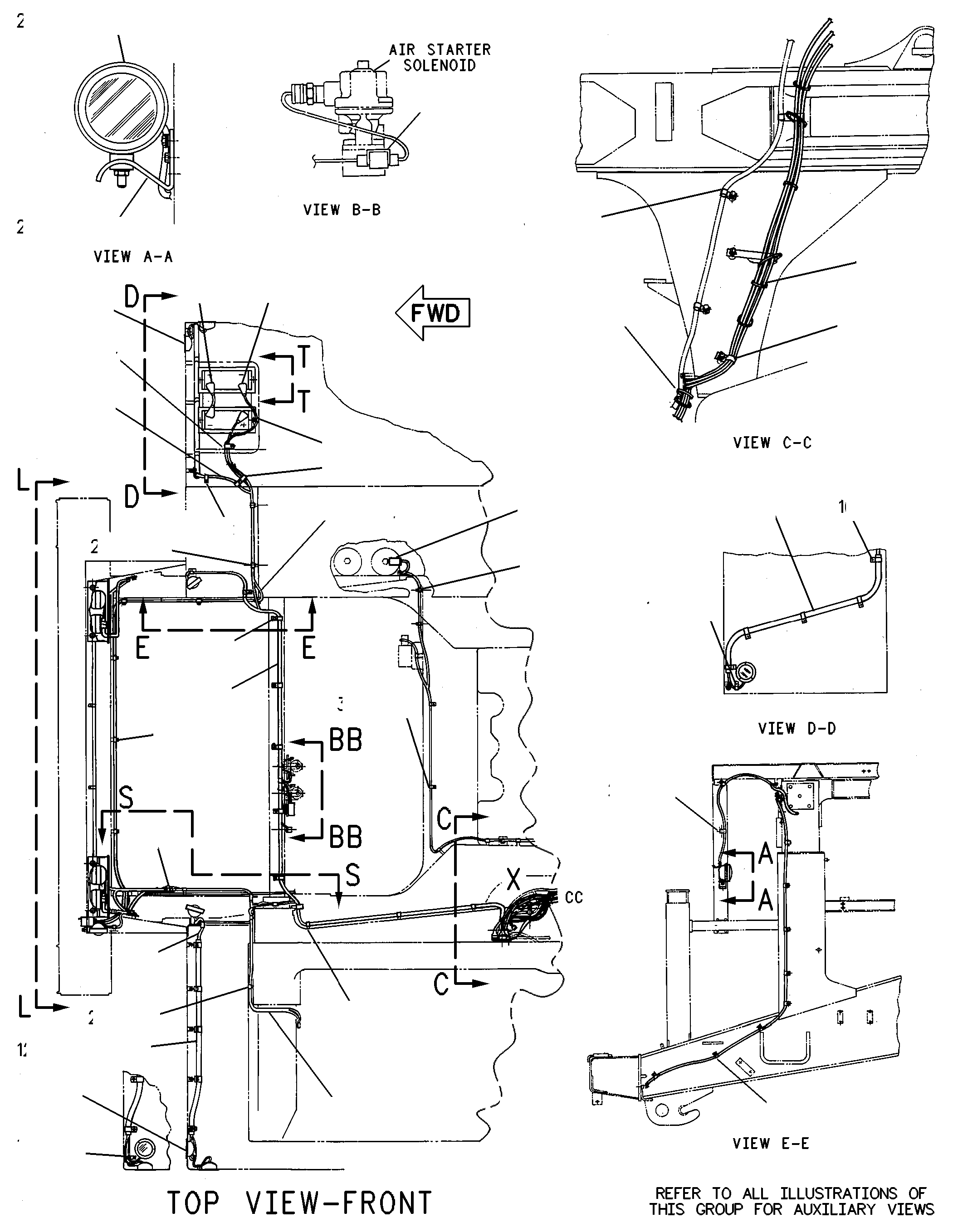

2A-6529 BATTERY & WIRING GP -CHASSIS/EMSS/N 7EK165-276

Group No: 2A-6529
Part NumberPart NameQty
5S73791 BOLT (3/8-16X0.875-IN)27
8T48962 WASHER-HARD (10.2X18.5X2.5-MM THK)52
5P92993 CLIP (LOOP)2
5M30624 BOLT (3/8-16X0.75-IN)27
5P92975 CLIP (LOOP)3
5T94146 HARNESS AS (TURN SIGNAL, RH)1
3T39677 LAMP GP-SIGNAL (PARKING, TURN)(AMBER)4
7S43468 SCREW-MACHINE (10-32X0.5-IN)12
9F5599LOCKWASHER24
4B2049NUT (10-32-THD)12
5T46669 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.3 M)
8N1725COVER AS-TERMINAL (RED)1
7N5274COVER AS-TERMINAL (BLACK)1
7X1591TERMINAL AS (POSITIVE)1
7X1592TERMINAL AS (NEGATIVE)1
2A734710 CABLE AS-BATTERY (NEGATIVE)1
6V2369CABLE (4-GA, BLACK)(7.25 M)
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
7N5274COVER AS-TERMINAL (BLACK)1
0375197BOOT1
7X1592TERMINAL AS (NEGATIVE)1
5K329411 CLIP1
5P150612 HOSE (162 CM)
2A690713 HARNESS AS (BATTERY CABLE)1
9G915014 CLIP7
4S445615 CLIP9
7D409216 CLIP11
5P150617 HOSE (168 CM)
4D779418 CLIP14
4L645419 BOLT (3/8-16X1-IN)2
5P107520 WASHER-HARD (10.2X22.5X3-MM THK)10
3D785421 SPACER (ROUND)1
6D2256SPACER (SQUARE)1
6V818822 NUT (1/2-13-THD)1
6N798923 LAMP GP-FLOOD (RH ENGINE LAMP)1
5P908524 CLIP (LOOP)4
8W268625 BRACKET1
3J481826 LOCKWASHER1
4D132627 LOCKWASHER2
7I461828 HARNESS AS (LADDER, LH)1
3S866529 CLIP (LOOP)2
3T304630 CLIP AS2
5T941331 HARNESS AS (TURN SIGNAL)(LH)1
3J190732 SEAL-O-RING1
3E6461SWITCH AS-PRESSURE (STEERING PUMP OIL)(HIGH)1
5P6029LOCKWIRE1
3J7354SEAL-O-RING1
5P9617ADAPTER1
033824833 CLIP (LOOP)4
9M499534 CLIP2
6D463635 CLIP (LOOP)3
7K118136 STRAP-CABLE8
5M306237 BOLT (3/8-16X0.75-IN)14
8T489638 WASHER-HARD (10.2X18.5X2.5-MM THK)32
4D779439 CLIP2
7I461740 HARNESS AS (CHASSIS)1
4S445641 CLIP2
5S737942 BOLT (3/8-16X0.875-IN)16
8N384443 SENDER-TEMPERATURE (SERVICE BRAKE OIL)1
7N785444 SWITCH AS-TEMPERATURE (BRAKE OIL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
3K0360SEAL-O-RING1
5P602945 LOCKWIRE
102909646 HARNESS AS-TRANSMISSION (CHASSIS)1
9M840647 CLIP (LOOP)11
8W108748 TUBE2
3S8665CLIP (LOOP)4
9G915249 CLIP1
102885650 HARNESS AS (REAR LIGHTS)1
8M277051 CLIP (LOOP)11
7N371852 CLIP2
6D283453 CLIP1
3J190754 SEAL-O-RING2
3E780955 SWITCH AS-PRESSURE (STEERING PUMP OIL)(LOW)1
2T301956 CLIP (LOOP)2
5P107557 WASHER-HARD (10.2X22.5X3-MM THK)1
7X167058 CONTROL GP-ELECTRONIC1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)2
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7N8205HOUSING-PLUG1
5T941159 HARNESS AS (AETA)1
5T941260 HARNESS AS (CHASSIS, AETA)1
3S209361 STRAP-CABLE6
4D154462 CLIP4
4D812363 CLIP (LOOP)1
9G915464 CLIP1
4L645465 BOLT (3/8-16X1-IN)3
5K329466 CLIP2
4S445567 CLIP2
8W268668 BRACKET1
9G915069 CLIP2
5M306270 BOLT (3/8-16X0.75-IN)21
8T489671 WASHER-HARD (10.2X18.5X2.5-MM THK)40
4D779472 CLIP4
6N798973 LAMP GP-FLOOD (LH ENGINE LAMP)1
3D785474 SPACER (ROUND)1
6D2256SPACER (SQUARE)1
6V818875 NUT (1/2-13-THD)2
3J4818LOCKWASHER2
5P816776 BOLT (3/8-16X0.625-IN)9
8M277077 CLIP (LOOP)17
7I462878 BRACKET AS4
7V6063BOLT AS16
8K1433GROMMET4
9X716679 LAMP GP-HEAD (HIGH BEAM)2
9B723780 BOLT (3/8-16X1.25-IN)1
6D424681 CLIP (LOOP)5
8T891182 BOLT (5/16-18X2-IN)8
2R0504NUT (5/16-18-THD)8
3T441183 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS)1
7D1649WASHER-HARD (13.5X32X5-MM THK)2
7N973784 HOUSING-RECEPTACLE (14-GA TO 18-GA)1
9G3695PLUG-SEAL1
8E155085 BRACKET AS8
9F2978NUT-WELD (3/8-16-THD)2
8E0368BRACKET1
7I538286 HARNESS AS2
9X716587 LAMP GP-HEAD (24-VOLT, LOW BEAM)6
7I461988 HARNESS AS (HEADLIGHTS)1
3K036089 SEAL-O-RING2
9X778190 SWITCH GP-BYPASS (TRANSMISSION OIL FILTER)1
6T440991 GUARD AS1
4D812392 CLIP (LOOP)2
9M499593 CLIP1
3S209394 STRAP-CABLE1
3E695595 SENSOR GP-SPEED (TC OUTPUT)1
5S737996 BOLT (3/8-16X0.875-IN)10
5P908597 CLIP (LOOP)2
7N371898 CLIP2
7N444799 SWITCH AS-PRESSURE (TC INLET FILTER)1
2M9780SEAL-O-RING1
3L8187LOCKWASHER2
4D2297SEAL-O-RING1
6V8368NUT (6-32-THD)2
5P6029100 LOCKWIRE
9G3341101 SWITCH AS-TEMPERATURE (TRANSMISSION OIL SUPPLY)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
4D1326102 LOCKWASHER2
1081289103 LAMP GP-SIGNAL (STOP, TAIL)(RED)2
3S8665104 CLIP (LOOP)2
3T1815105 ALARM GP1
8T9379106 BOLT (3/8-16X4.25-IN)2
6V8801107 NUT (3/8-16-THD)2
5P1075108 WASHER-HARD (10.2X22.5X3-MM THK)1
8T4133109 NUT (M10X1.5-THD)2
8T4223WASHER-HARD (13.5X25.5X3-MM THK)2
0318761110 CABLE AS1
0375197BOOT2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
6V2369CABLE (4-GA, BLACK)(0.77 M)
9G9154111 CLIP2
3T3045112 CLIP AS4
7I5124113 HARNESS AS-FRONT LIGHTING2
4S4455114 CLIP1
6V8188115 NUT (1/2-13-THD)2
9G9152116 CLIP1
8T4896117 WASHER-HARD (10.2X18.5X2.5-MM THK)3
5M3062BOLT (3/8-16X0.75-IN)3
8M2770118 CLIP (LOOP)1
4D9517119 CLIP1
8T4223WASHER-HARD (13.5X25.5X3-MM THK)1
8T9383BOLT (1/2-13X0.75-IN)1
7I4821120 HARNESS AS (ENGINE SHUTDOWN)(ENGINE SHUTDOWN)1
7N3718121 CLIP3
5P8167122 BOLT (3/8-16X0.625-IN)1
5P1075WASHER-HARD (10.2X22.5X3-MM THK)1
0318761123 CABLE AS1
0375197BOOT2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
6V2369CABLE (4-GA, BLACK)(0.77 M)
3S2093124 STRAP-CABLE2
7N7854125 SWITCH AS-TEMPERATURE (TC OIL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
3K0360SEAL-O-RING1
6B4540126 NUT (4-40-THD)4
6D3033SCREW-SOCKET HEAD (4-40X0.5-IN)4
6V9497WASHER-HARD (3.2X6X0.5-MM THK)4
7N0718127 SWITCH GP-DISCONNECT1
3E5169128 GUARD-SWITCH1
8D9537129 CAP-DUST1
8D2676130 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP)1
2A7321131 BOX AS1
8F8551HINGE-BUTT1
4D1836132 SWITCH-TOGGLE (LADDER ACCESS LAMP)1
4D1836133 SWITCH-TOGGLE (ENGINE SHUTDOWN)1
9X4381134 LAMP GP-FLOOD (24-VOLT)(BACK-UP)2
6V1119135 LAMP GP-SIGNAL (24-VOLT)(AMBER)2
8T4133136 NUT (M10X1.5-THD)4
8T4121WASHER-HARD (11X21X2.5-MM THK)4
6V8188137 NUT (1/2-13-THD)8
8T4223138 WASHER-HARD (13.5X25.5X3-MM THK)4
9D6635139 HOLD-DOWN AS-BATTERY2
4D8951140 ROD4
3T5760141 BATTERY GP (12-VOLT, 750-CCA)2
8T4171142 BOLT (M6X1X12-MM)2
9X8256WASHER (6.6X12X2-MM THK)2
2V3216143 CLIP (LOOP)1
3E5239144 RELAY AS (24-VOLT)1
9X9584145 RESISTOR AS2
3S2093146 STRAP-CABLE13
8T9043147 BOLT (5/16-18X0.875-IN)2
8T4224148 WASHER-HARD (8.8X16X2-MM THK)6
9X3207149 TIMER GP1
9G9150150 CLIP3
8T4191151 BOLT (M10X1.5X16-MM)2
8T4121152 WASHER-HARD (11X21X2.5-MM THK)3
8T4896153 WASHER-HARD (10.2X18.5X2.5-MM THK)16
6V8801154 NUT (3/8-16-THD)2
9M8406155 CLIP (LOOP)2
4L6454156 BOLT (3/8-16X1-IN)3
5P6029157 LOCKWIRE
9G9152158 CLIP2
8T4136159 BOLT (M10X1.5X25-MM)1
5S7379160 BOLT (3/8-16X0.875-IN)8
9G9154161 CLIP3
3T3048162 CLIP AS3
5M3062163 BOLT (3/8-16X0.75-IN)5
7G1060164 STRAP AS-GROUND1
6V3265165 CLIP1
4V4760166 COVER1
6V8189167 NUT (5/16-18-THD)1
4M0061168 BOLT (5/16-18X0.75-IN)1
4D7794169 CLIP2
8T8911170 BOLT (5/16-18X2-IN)2
3V6909171 BLOCK1
3E0461172 CONTROL GP-ELECTRONIC (BODY POSITIONER)1
9X5617FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER)1
7N7782HOUSING-PLUG (14-GA TO 18-GA)1
4K6177173 CLIP3
2R1939174 CLIP (LOOP)2
8M2770175 CLIP (LOOP)2
3T0050176 CLIP1
6K2319177 CLIP (25 MM WIDE)1
1058827178 SUPPRESSOR GP-ELECTRONIC (A/C)1
