System And Components

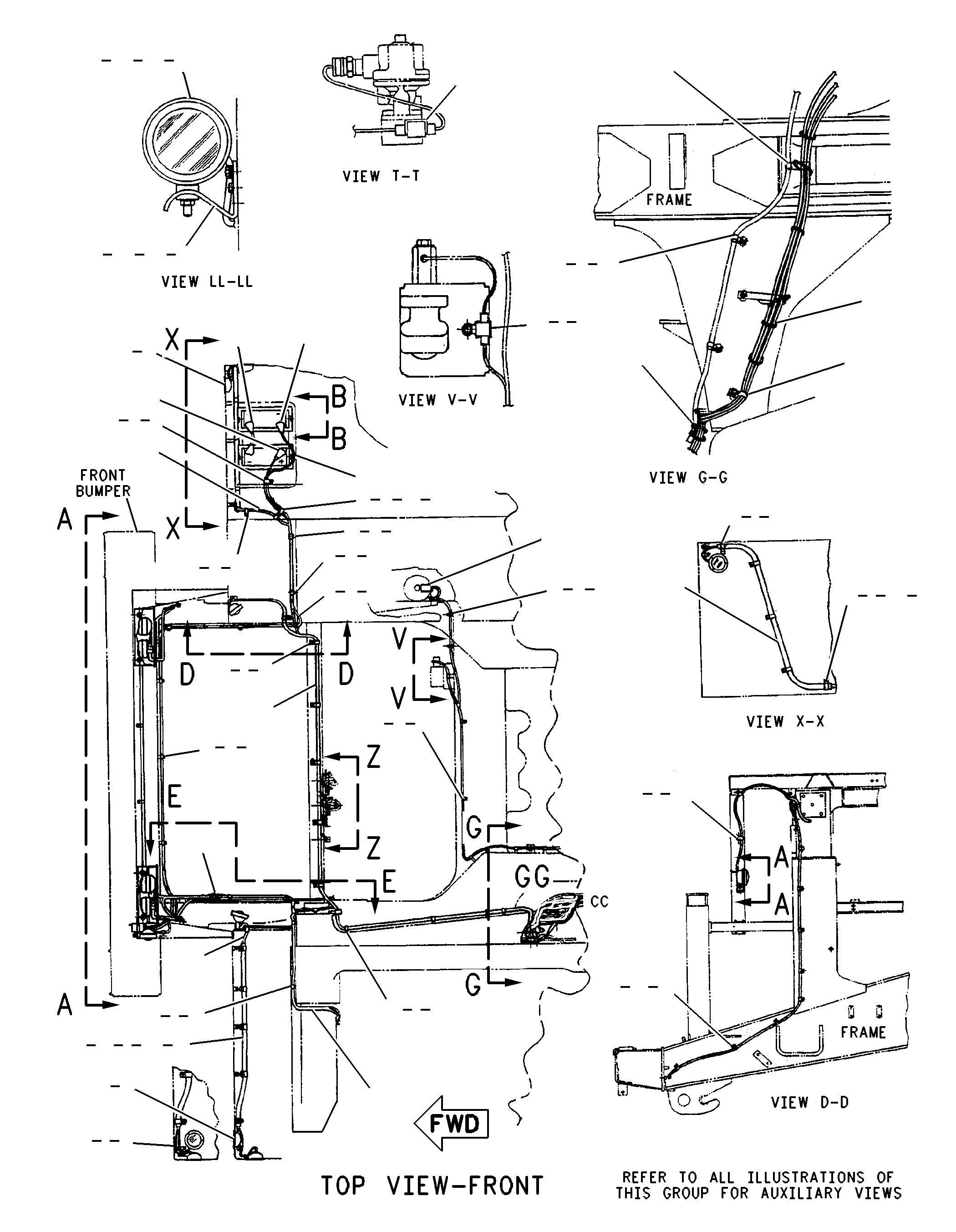

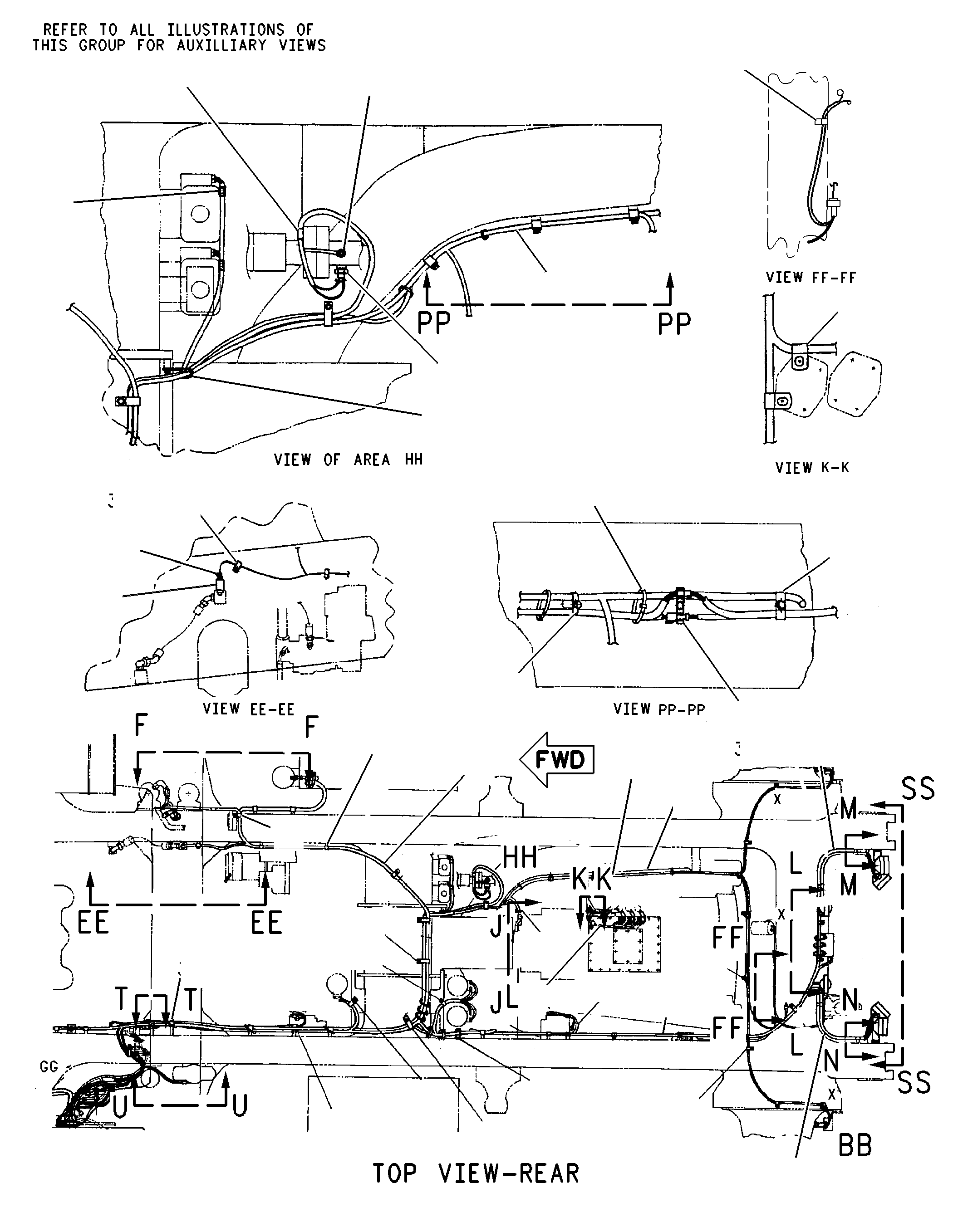

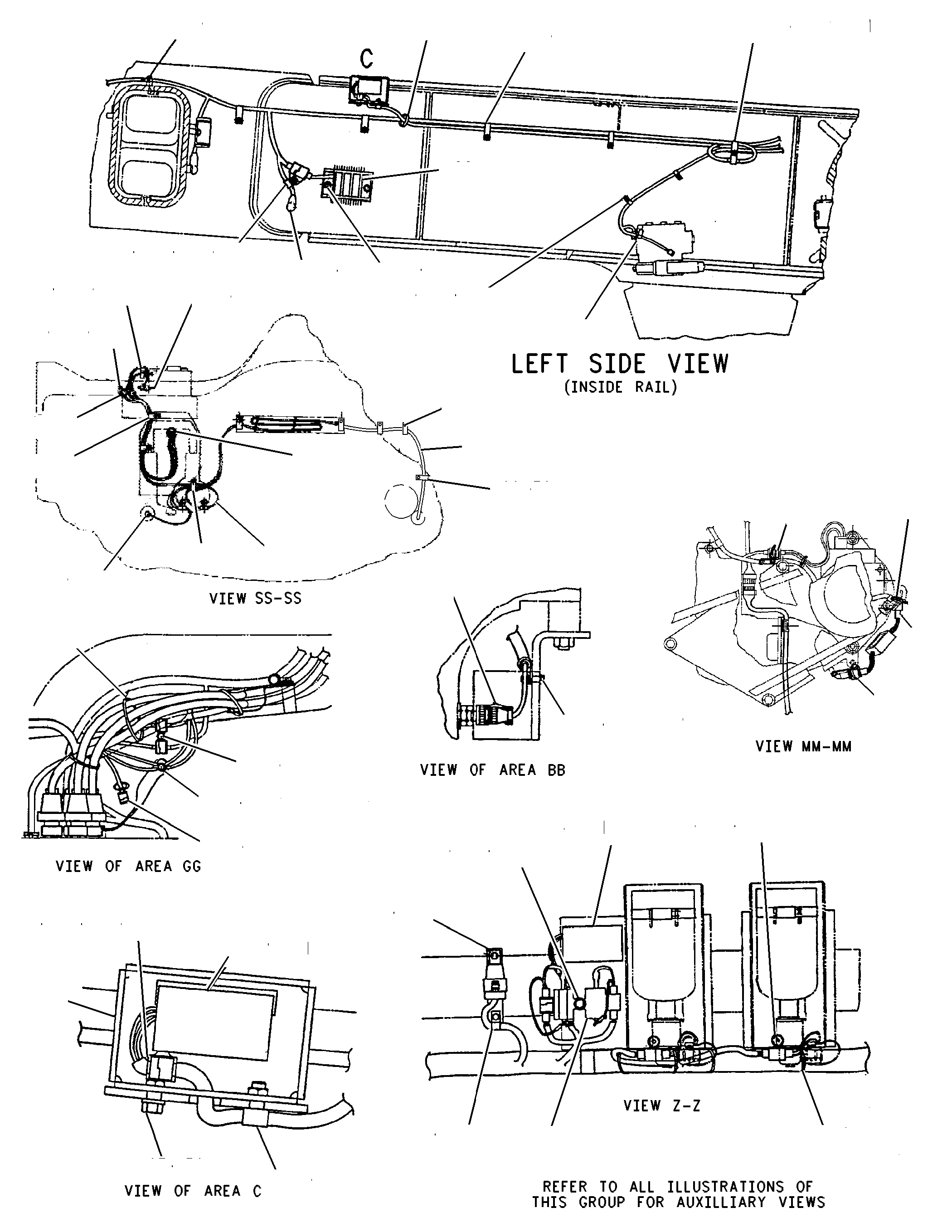

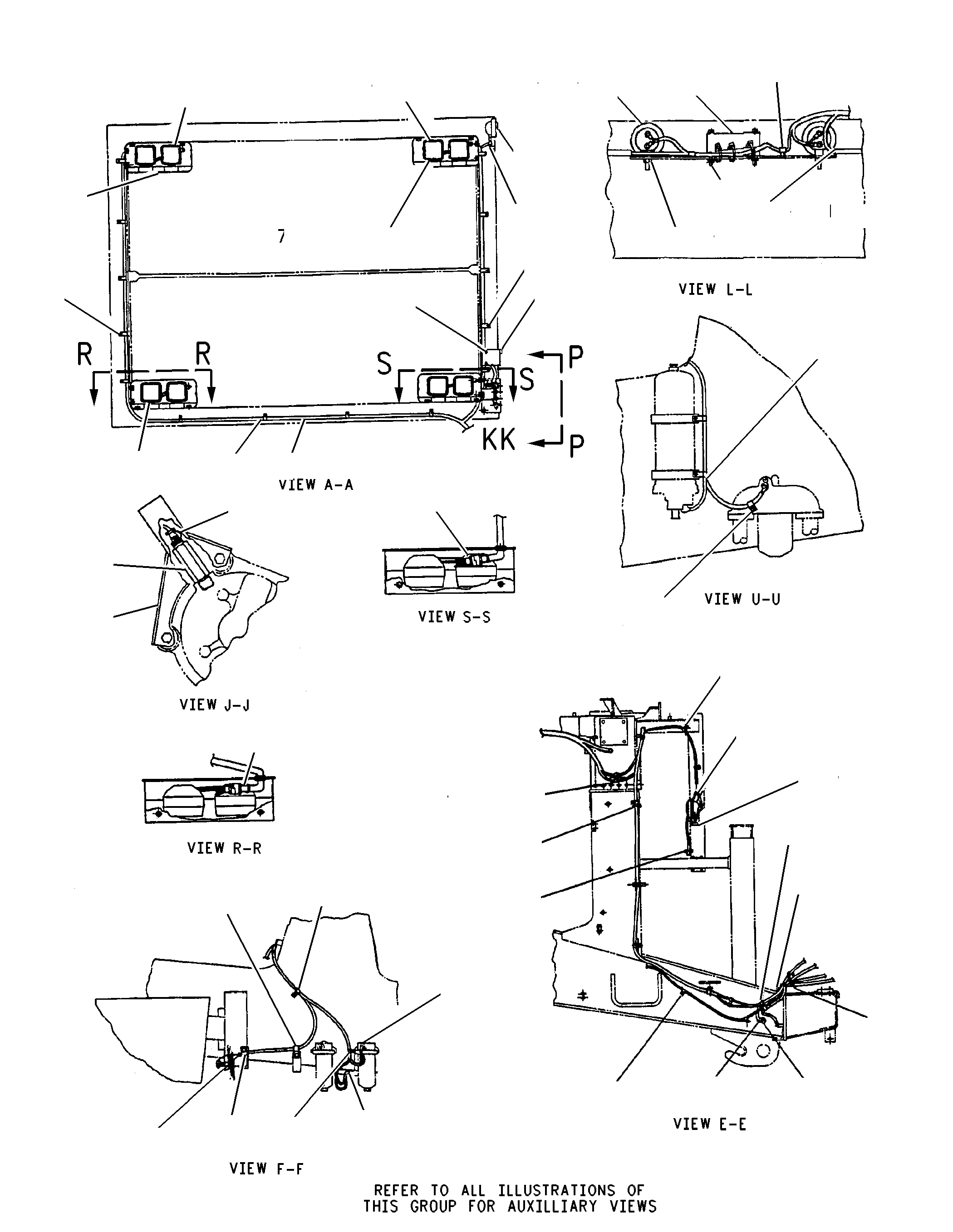

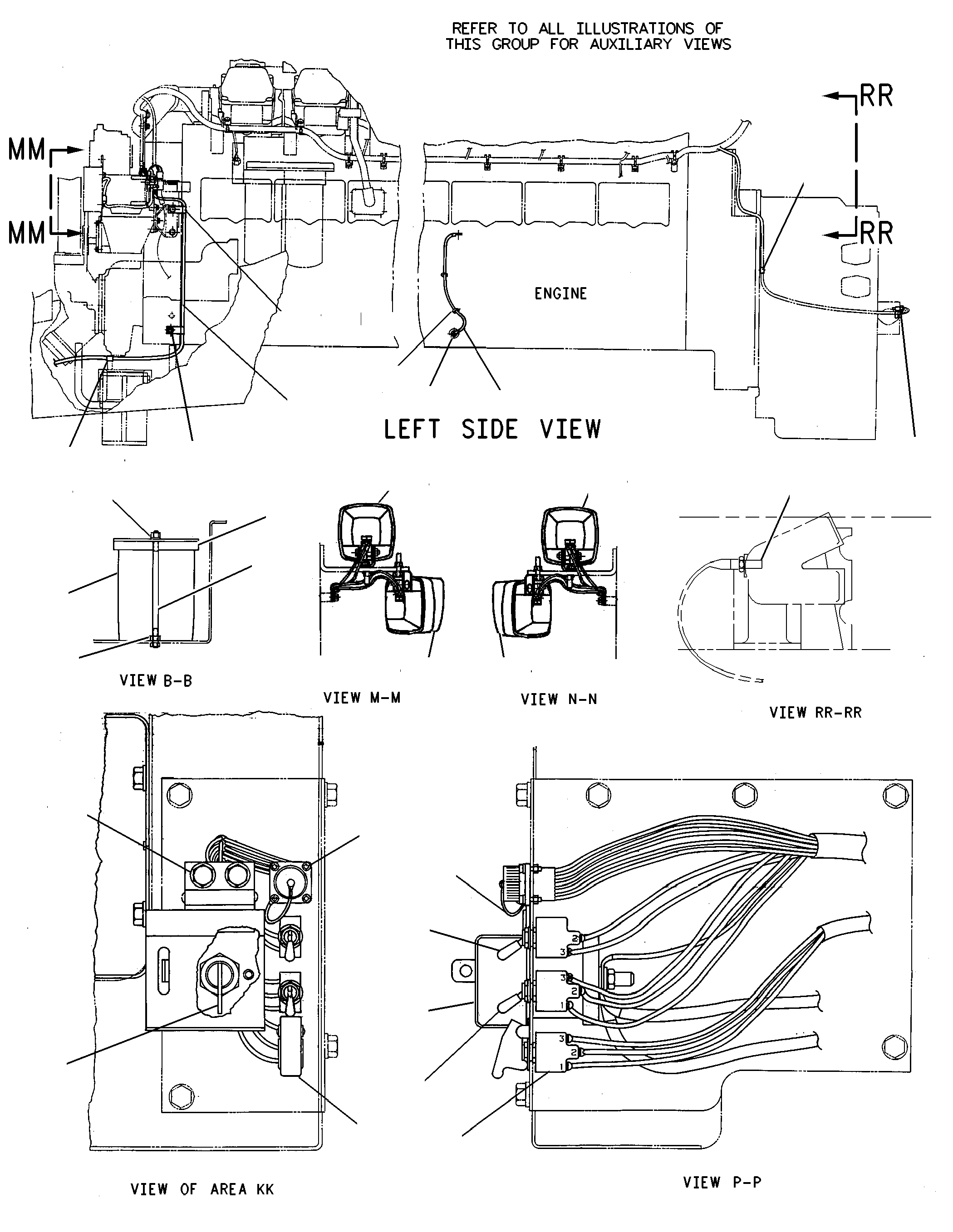

2A-6529 BATTERY & WIRING GP -CHASSIS/EMSS/N 7EK371-UP
Group No: 2A-6529
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5S7379 | 1 BOLT (3/8-16X0.875-IN) | 60 | |
| 8T4896 | 2 WASHER-HARD (10.2X18.5X2.5-MM THK) | 54 | |
| 5P9299 | 3 CLIP (LOOP) | 3 | |
| 3M7212 | 4 TERMINAL-BATTERY | 1 | |
| 5P9297 | 5 CLIP (LOOP) | 1 | |
| 5T9414 | 6 HARNESS AS (TURN SIGNAL, RH) | 1 | |
| 3T3967 | 7 LAMP GP-SIGNAL (PARKING, TURN)(AMBER) | 4 | |
| 7S4346 | 8 SCREW-MACHINE (10-32X0.5-IN) | 12 | |
| 9F5599 | LOCKWASHER | 24 | |
| 4B2049 | NUT (10-32-THD) | 12 | |
| 1175883 | 9 CABLE AS | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 7X1591 | TERMINAL AS (POSITIVE) | 1 | |
| 8C3056 | CABLE (2-GA, RED)(30CM) | ||
| 1M6119 | BOLT (5/16-18X1.375-IN) | 2 | |
| 1M6120 | NUT (5/16-18-THD) | 2 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 1167160 | 10 CABLE AS-BATTERY | 1 | |
| 8C0596 | CABLE (2-GA)(2 GA 725CM) | ||
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 0375197 | BOOT | 1 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 5K3294 | 11 CLIP | 1 | |
| 5P1506 | 12 HOSE (162CM) | ||
| 1175267 | 13 HARNESS AS (BATTERY CABLE) | 1 | |
| 9G9150 | 14 CLIP | 7 | |
| 4S4456 | 15 CLIP | 9 | |
| 7D4092 | 16 CLIP | 11 | |
| 5P1506 | 17 HOSE (168CM) | ||
| 4D7794 | 18 CLIP | 15 | |
| 4L6454 | 19 BOLT (3/8-16X1-IN) | 2 | |
| 5P1075 | 20 WASHER-HARD (10.2X22.5X3-MM THK) | 10 | |
| 3D7854 | 21 SPACER (ROUND) | 1 | |
| 6D2256 | SPACER (SQUARE) | 1 | |
| 6V8188 | 22 NUT (1/2-13-THD) | 1 | |
| 6N7989 | 23 LAMP GP-FLOOD (RH ENGINE LAMP) | 1 | |
| 5P9085 | 24 CLIP (LOOP) | 4 | |
| 8W2686 | 25 BRACKET | 1 | |
| 3J4818 | 26 LOCKWASHER | 1 | |
| 4D1326 | 27 LOCKWASHER | 2 | |
| 7I4618 | 28 HARNESS AS (LADDER, LH) | 1 | |
| 3S8665 | 29 CLIP (LOOP) | 2 | |
| 3T3046 | 30 CLIP AS | 2 | |
| 5T9413 | 31 HARNESS AS (TURN SIGNAL)(LH) | 1 | |
| 3J1907 | 32 SEAL-O-RING | 1 | |
| 3E6461 | SWITCH AS-PRESSURE (STEERING PUMP OIL)(HIGH) | 1 | |
| 5P0562 | LOCKWIRE | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 5P9617 | ADAPTER | 1 | |
| 0338248 | 33 CLIP (LOOP) | 4 | |
| 9M4995 | 34 CLIP | 2 | |
| 6D4636 | 35 CLIP (LOOP) | 3 | |
| 7K1181 | 36 STRAP-CABLE | 9 | |
| 9M8406 | 37 CLIP (LOOP) | 4 | |
| 4S4455 | 38 CLIP | 2 | |
| 8T4896 | 39 WASHER-HARD (10.2X18.5X2.5-MM THK) | 30 | |
| 4D7794 | 40 CLIP | 2 | |
| 1307606 | 41 HARNESS AS (CHASSIS) | 1 | |
| 4S4456 | 42 CLIP | 2 | |
| 5S7379 | 43 BOLT (3/8-16X0.875-IN) | 27 | |
| 1485743 | 44 SENDER-TEMPERATURE (SERVICE BRAKE OIL) | 1 | |
| 3K0360 | 45 SEAL-O-RING | 1 | |
| 7N7854 | SWITCH AS-TEMPERATURE (BRAKE OIL) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 5P6029 | 46 LOCKWIRE | ||
| 1403618 | 47 HARNESS AS-TRANSMISSION (CHASSIS) | 1 | |
| 9M8406 | 48 CLIP (LOOP) | 13 | |
| 3S8665 | 49 CLIP (LOOP) | 4 | |
| 8W1087 | TUBE | 2 | |
| 0338248 | 50 CLIP (LOOP) | 1 | |
| 1306931 | 51 HARNESS AS (REAR LIGHTS) | 1 | |
| 8M2770 | 52 CLIP (LOOP) | 7 | |
| 7N3718 | 53 CLIP | 2 | |
| 6D2834 | 54 CLIP | 1 | |
| 3J1907 | 55 SEAL-O-RING | 2 | |
| 3E7809 | 56 SWITCH AS-PRESSURE (STEERING PUMP OIL)(LOW) | 1 | |
| 2T3019 | 57 CLIP (LOOP) | 2 | |
| 5K8451 | 58 CLIP (LOOP) | 2 | |
| 7K1181 | 59 STRAP-CABLE | 16 | |
| 1307314 | 60 HARNESS AS-SENSOR (AETA, DIFFERENTIAL OIL FILTER) | 1 | |
| 1307313 | 61 HARNESS AS-CHASSIS (AETA, DIFFERENTIAL OIL FILTER) | 1 | |
| 3S2093 | 62 STRAP-CABLE | 4 | |
| 4D1544 | 63 CLIP | 4 | |
| 4D8123 | 64 CLIP (LOOP) | 1 | |
| 1153071 | 65 CLIP AS-CONNECTING (6-PIN) | 1 | |
| 1153072 | CLIP AS-CONNECTING (8-PIN) | 1 | |
| 4L6454 | 66 BOLT (3/8-16X1-IN) | 3 | |
| 5K3294 | 67 CLIP | 2 | |
| 8W2686 | 68 BRACKET | 1 | |
| 9G9150 | 69 CLIP | 2 | |
| 1182856 | 70 PLATE | 1 | |
| 8T4896 | 71 WASHER-HARD (10.2X18.5X2.5-MM THK) | 47 | |
| 4D7794 | 72 CLIP | 4 | |
| 6N7989 | 73 LAMP GP-FLOOD (LH ENGINE LAMP) | 1 | |
| 3D7854 | 74 SPACER (ROUND) | 1 | |
| 6D2256 | SPACER (SQUARE) | 1 | |
| 3J4818 | 75 LOCKWASHER | 2 | |
| 6V8188 | NUT (1/2-13-THD) | 2 | |
| 5P8167 | 76 BOLT (3/8-16X0.625-IN) | 9 | |
| 8M2770 | 77 CLIP (LOOP) | 12 | |
| 8K1433 | 78 GROMMET | 4 | |
| 7V6063 | BOLT AS | 16 | |
| 7I4628 | BRACKET AS | 4 | |
| 9X7166 | 79 LAMP GP-HEAD (HIGH BEAM) | 2 | |
| 9B7237 | 80 BOLT (3/8-16X1.25-IN) | 1 | |
| 6D4246 | 81 CLIP (LOOP) | 10 | |
| 2R0504 | 82 NUT (5/16-18-THD) | 8 | |
| 8T8911 | BOLT (5/16-18X2-IN) | 8 | |
| 7D1649 | 83 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 3T4411 | LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 9G3695 | 84 PLUG-SEAL | 1 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 8E1550 | 85 BRACKET AS | 8 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 2 | |
| 7I5382 | 86 HARNESS AS | 2 | |
| 9X7165 | 87 LAMP GP-HEAD (24-VOLT, LOW BEAM) | 6 | |
| 7I4619 | 88 HARNESS AS (HEADLIGHTS) | 1 | |
| 3K0360 | 89 SEAL-O-RING | 2 | |
| 9X7781 | 90 SWITCH GP-BYPASS (TRANSMISSION OIL FILTER) | 1 | |
| 6T4409 | 91 GUARD AS | 1 | |
| 4D8123 | 92 CLIP (LOOP) | 2 | |
| 9M4995 | 93 CLIP | 1 | |
| 3S2093 | 94 STRAP-CABLE | 6 | |
| 3E6955 | 95 SENSOR GP-SPEED (TC OUTPUT) | 1 | |
| 5S7379 | 96 BOLT (3/8-16X0.875-IN) | 37 | |
| 5P9085 | 97 CLIP (LOOP) | 2 | |
| 7N3718 | 98 CLIP | 2 | |
| 1169933 | 99 SWITCH AS-PRESSURE (TC INLET FILTER) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 3E3361 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 9X1813 | SLEEVE | ||
| 5P6029 | 100 LOCKWIRE | ||
| 9G3341 | 101 SWITCH AS-TEMPERATURE (TRANSMISSION FILTER ARM) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 4D1326 | 102 LOCKWASHER | 2 | |
| 1081289 | 103 LAMP GP-SIGNAL (STOP, TAIL)(RED) | 2 | |
| 3S8665 | 104 CLIP (LOOP) | 2 | |
| 1236449 | 105 ALARM GP (BACK UP) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 5P5677 | WIRE (18-GA, BLACK) | ||
| 8T9379 | 106 BOLT (3/8-16X4.25-IN) | 2 | |
| 6V8801 | 107 NUT (3/8-16-THD) | 2 | |
| 5P1075 | 108 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 8T4223 | 109 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 1167156 | 110 CABLE AS | 1 | |
| 8C0596 | CABLE (2-GA)(725CM) | ||
| 0375197 | BOOT | 2 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 2 | |
| 9G9154 | 111 CLIP | 1 | |
| 3T3045 | 112 CLIP AS | 4 | |
| 7I5124 | 113 HARNESS AS-FRONT LIGHTING | 2 | |
| 4S4455 | 114 CLIP | 1 | |
| 6V8188 | 115 NUT (1/2-13-THD) | 2 | |
| 9G9152 | 116 CLIP | 1 | |
| 8T4896 | 117 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 8M2770 | 118 CLIP (LOOP) | 1 | |
| 4D9517 | 119 CLIP | 1 | |
| 8T9383 | BOLT (1/2-13X0.75-IN) | 1 | |
| 7I4821 | 120 HARNESS AS (ENGINE SHUTDOWN)(ENGINE SHUTDOWN) | 1 | |
| 7N3718 | 121 CLIP | 3 | |
| 5P8167 | 122 BOLT (3/8-16X0.625-IN) | 1 | |
| 5P1075 | WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 1167156 | 123 CABLE AS | 1 | |
| 8C0596 | CABLE (2-GA)(725CM) | ||
| 0375197 | BOOT | 2 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 2 | |
| 3S2093 | 124 STRAP-CABLE | 2 | |
| 7N7854 | 125 SWITCH AS-TEMPERATURE (TC OIL) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6B4540 | 126 NUT (4-40-THD) | 4 | |
| 6D3033 | SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 6V9497 | WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 7N0718 | 127 SWITCH GP-DISCONNECT | 1 | |
| 3E5169 | 128 GUARD-SWITCH | 1 | |
| 8D9537 | 129 CAP-DUST | 1 | |
| 8D2676 | 130 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP) | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 2 | |
| 2A7321 | 131 BOX AS | 1 | |
| 8F8551 | HINGE-BUTT | 1 | |
| 4D1836 | 132 SWITCH-TOGGLE (LADDER ACCESS LAMP) | 1 | |
| 4D1836 | 133 SWITCH-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 9X4381 | 134 LAMP GP-FLOOD (24-VOLT)(BACK UP) | 2 | |
| 6V1119 | 135 LAMP GP-SIGNAL (24-VOLT)(AMBER) | 2 | |
| 8T4133 | 136 NUT (M10X1.5-THD) | 4 | |
| 8T4121 | WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 6V8188 | 137 NUT (1/2-13-THD) | 8 | |
| 8T4223 | 138 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 9D6635 | 139 HOLD-DOWN AS-BATTERY | 2 | |
| 4D8951 | 140 ROD | 4 | |
| 3T5760 | 141 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 7N7849 | 142 SWITCH AS-TEMPERATURE (AFTERCOOLER) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 5S7379 | 143 BOLT (3/8-16X0.875-IN) | 3 | |
| 8T8917 | 144 BOLT (1/2-13X1.25-IN) | 1 | |
| 8T4171 | 145 BOLT (M6X1X12-MM) | 2 | |
| 9X8256 | WASHER (6.6X12X2-MM THK) | 2 | |
| 2V3216 | 146 CLIP (LOOP) | 1 | |
| 3E5239 | 147 RELAY AS (24-VOLT) | 1 | |
| 9X9584 | 148 RESISTOR AS | 2 | |
| 3S2093 | 149 STRAP-CABLE | 16 | |
| 8T9043 | 150 BOLT (5/16-18X0.875-IN) | 2 | |
| 8T4224 | 151 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9X3207 | 152 TIMER GP | 1 | |
| 9G9150 | 153 CLIP | 2 | |
| 8T4191 | 154 BOLT (M10X1.5X16-MM) | 2 | |
| 8T4121 | 155 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4896 | 156 WASHER-HARD (10.2X18.5X2.5-MM THK) | 21 | |
| 6V8801 | 157 NUT (3/8-16-THD) | 2 | |
| 9M8406 | 158 CLIP (LOOP) | 2 | |
| 4L6454 | 159 BOLT (3/8-16X1-IN) | 3 | |
| 5P6029 | 160 LOCKWIRE | ||
| 9G9152 | 161 CLIP | 3 | |
| 8T4136 | 162 BOLT (M10X1.5X25-MM) | 1 | |
| 5S7379 | 163 BOLT (3/8-16X0.875-IN) | 18 | |
| 9G9154 | 164 CLIP | 3 | |
| 3T3048 | 165 CLIP AS | 2 | |
| 4P7429 | 166 CLIP (LADDER) | 1 | |
| 4M7146 | 167 STRAP AS-GROUND | 1 | |
| 3S2093 | 168 STRAP-CABLE | 10 | |
| 4V4760 | 169 COVER | 1 | |
| 6V8189 | 170 NUT (5/16-18-THD) | 1 | |
| 4M0061 | 171 BOLT (5/16-18X0.75-IN) | 1 | |
| 4D7794 | 172 CLIP | 3 | |
| 8T8911 | 173 BOLT (5/16-18X2-IN) | 2 | |
| 3V6909 | 174 BLOCK | 1 | |
| 3E0461 | 175 CONTROL GP-ELECTRONIC (BODY POSITIONER) | 1 | |
| 7N7782 | HOUSING-PLUG (14-GA TO 18-GA) | 1 | |
| 9X5617 | FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER) | 1 | |
| 4D6466 | 176 CLIP | 3 | |
| 3S8665 | 177 CLIP (LOOP) | 2 | |
| 8M2770 | 178 CLIP (LOOP) | 3 | |
| 3T0050 | 179 CLIP | 1 | |
| 6K2319 | 180 CLIP | 1 | |
| 1058827 | 181 SUPPRESSOR GP-ELECTRONIC (A/C) | 1 | |
| 7X1670 | 182 CONTROL GP-ELECTRONIC | 1 | |
| 7N8205 | HOUSING-PLUG | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 5P1075 | 183 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 1003055 | 184 SENSOR GP-TEMPERATURE (REAR AXLE OIL) | 1 | |
| 3J1907 | 185 SEAL-O-RING | 1 | |
| 9X8582 | 186 CLIP (LOOP) | 1 | |
| 3J7354 | 187 SEAL-O-RING | 2 | |
| 9X7781 | 188 SWITCH GP-BYPASS (REAR AXLE OIL FILTER) | 1 | |
| 9U2277 | 189 CLIP AS | 2 | |
| 1232993 | 190 SWITCH GP-LIQUID LEVEL (REAR AXLE OIL) | 2 | |
| 2M9780 | 191 SEAL-O-RING | 2 | |
| 7S4244 | 192 CLIP | 2 | |
| 1129778 | 193 SENSOR GP-PRESSURE (DIFFERENTIAL OIL) | 1 | |
| 9X0262 | 194 ADAPTER | 1 | |
| 1342492 | 195 HARNESS AS-MONITOR (DIFFERENTIAL OIL LEVEL) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 |
