System And Components

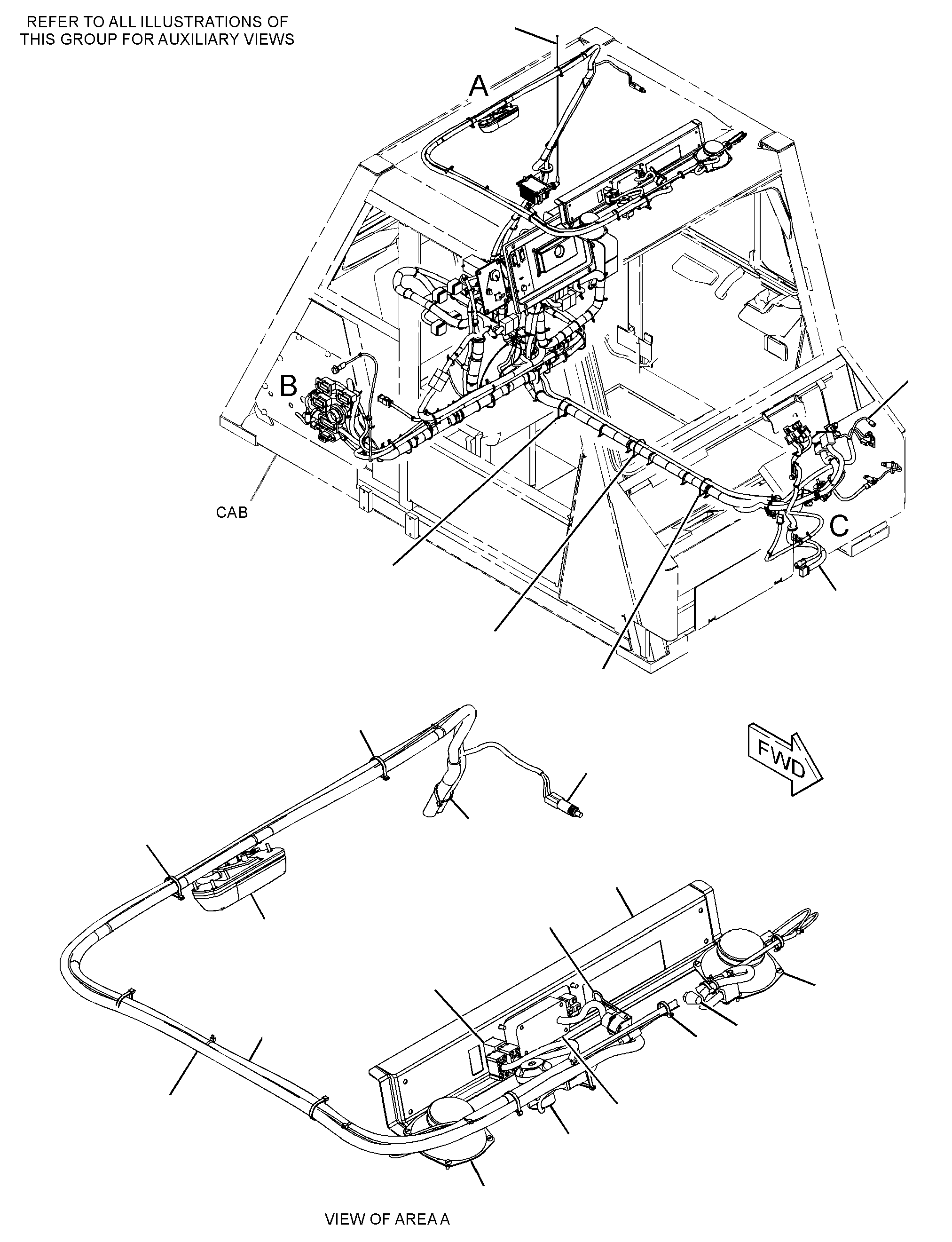

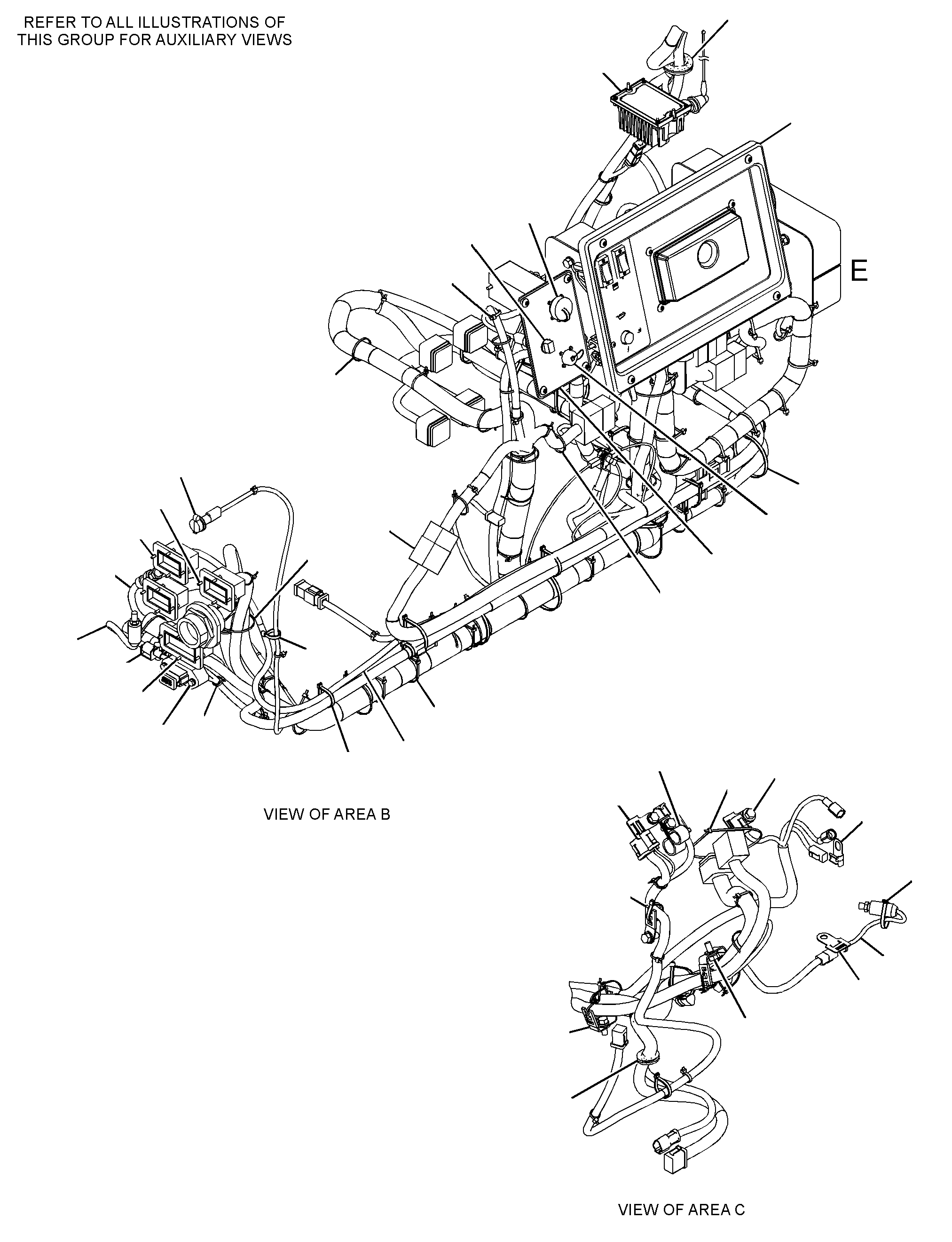

354-2642 WIRING GP-CABS/N 7CS1-UP
Group No: 354-2642
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E2034 | 1 SWITCH AS-PRESSURE (SERVICE BRAKE) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 3E6328 | 2 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3S2093 | 3 STRAP-CABLE | 43 | |
| 3T3045 | 4 CLIP AS | 1 | |
| 3T3046 | 5 CLIP AS | 1 | |
| 3T3048 | 6 CLIP AS | 1 | |
| 4E1411 | 7 BUSHING-TERMINAL | 1 | |
| 5T9327 | 8 GROMMET | 1 | |
| 6D3033 | 9 SCREW-SOCKET HEAD (4-40X0.5-IN) | 8 | |
| 6G7021 | 10 BRACKET | 1 | |
| 6T7695 | 11 SPEAKER AS-RADIO | 2 | |
| 6V9497 | 12 WASHER-HARD (3.2X6X0.5-MM THK) | 8 | |
| 7K1181 | 13 STRAP-CABLE | 21 | |
| 8C6354 | 14 CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 8C9678 | 15 LAMP GP-DOME (24-VOLT) | 1 | |
| 8D9537 | 16 CAP-DUST | 1 | |
| 8T9683 | 17 LAMP GP-SIGNAL (RED) | 1 | |
| 8T9684 | 18 LAMP GP-SIGNAL (GREEN) | 1 | |
| 8W4812 | 19 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 8 | |
| 8F9836 | BOSS (3/8-16-THD) | 1 | |
| 9D4068 | 20 SWITCH-PUSH BUTTON (DOOR) | 1 | |
| 9G9150 | 21 CLIP | 3 | |
| 9R7935 | 22 WASHER-SHOULDER (18.5X27X2-MM THK) | 2 | |
| 9R7941 | 23 SOCKET AS | 1 | |
| 9R7980 | COVER | 1 | |
| 9W3072 | 24 ANTENNA AS | 1 | |
| 9X0435 | 25 ADAPTER | 1 | |
| 9X6847 | 26 DISPLAY GP-PAYLOAD MONITOR | 1 | |
| 1034977 | 27 SWITCH AS-PRESSURE (RETARDER) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1080358 | 28 FLASHER AS (24-VOLT) | 1 | |
| 1160118 | 29 CLIP | 2 | |
| 1172311 | 30 SOCKET-AUXILIARY POWER (12-VOLT) | 1 | |
| 1172932 | 31 CABLE AS-COAXIAL | 1 | |
| 1437884 | 32 MODULE AS (INTERMITTENT WIPER) | 1 | |
| 1532869 | 33 FILM-IDENTIFICATION (RELAY) | 1 | |
| 1602445 | 34 SWITCH GP-PRESSURE (SECONDARY BRAKE) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 1619845 | 35 HARNESS AS-CONTROL (PAYLOAD) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1038133 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 6 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 6 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 8N1525 | PLUG AS-CONNECTOR (20-PIN) | 1 | |
| 8N1535 | BELL AS-END | 1 | |
| 9X6857 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 20 | |
| 9D3374 | RECEPTACLE AS-CONNECTOR (5-PIN) | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 4 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 9 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 9 | |
| 9G3673 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | PLUG-SEAL | 18 | |
| 1624056 | 36 PANEL | 1 | |
| 1630842 | 37 PLATE | 1 | |
| 1630954 | 38 HARNESS AS-MONITOR (ELECTRONIC MONITORING SYSTEM) | 1 | |
| 3S2093 | STRAP-CABLE | 10 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 7X6222 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8558 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3265 | SEAL-CONNECTOR (24-PIN) | 2 | |
| 8T8737 | PLUG-SEAL | 26 | |
| 9X0146 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X7145 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 28 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 18 | |
| 1630957 | 39 HARNESS AS-VALVE (AUTOMATIC RETARDER CONTROL) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 2 | |
| 9G3695 | PLUG-SEAL | 3 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 7 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 1655957 | 40 SWITCH AS-ROCKER (24-VOLT)(HAZARD WARNING LIGHTS) | 1 | |
| 1667781 | 41 SWITCH AS-PRESSURE (STOP LIGHT) | 1 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 1726142 | 42 HARNESS AS-RADIO | 1 | |
| 3E7996 | PLUG-CONNECTOR (6-PIN) | 1 | |
| 6T6505 | HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK) | 2 | |
| 6T6506 | TERMINAL-BLADE (14-GA TO 18-GA) | 2 | |
| 6T8047 | HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK) | 2 | |
| 6T8048 | TERMINAL-RECEPTACLE (16-GA TO 20-GA) | 2 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7781 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 2 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 0655071 | TERMINAL-BLADE (14-GA TO 16-GA) | 11 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(20-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM) | ||
| 3S2093 | STRAP-CABLE | 10 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1850600 | 43 SENSOR GP-PRESSURE (BRAKE AIR) | 1 | |
| 1893158 | 44 SUPPRESSOR-ARC | 3 | |
| 2010442 | 45 HARNESS AS-CONTROL (INTEGRATED BRAKE) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1106846 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 21 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 41 | |
| 8T8737 | PLUG-SEAL | 58 | |
| 9X0146 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 1106848 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM) | ||
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 1 | |
| 2418368 | 46 SWITCH GP-MAGNETIC (24-VOLT)(MAIN POWER RELAY) | 1 | |
| 2461757 | 47 PANEL GP-CIRCUIT BREAKER | 1 | |
| 2482855 | 48 HARNESS AS-PANEL | 1 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 13 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 13 | |
| 9W1951 | RECEPTACLE AS-CONNECTOR (9-PIN) | 1 | |
| 1148843 | SLEEVE-PLASTIC (20-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(137-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(100-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 18 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 18 | |
| 9G4343 | TERMINAL-RING (4-GA, 1/4-IN SCREW) | 1 | |
| 5P3454 | TERMINAL-RING (4-GA, 5/16-IN SCREW) | 1 | |
| 9G4336 | TERMINAL-RING (4-GA, 3/8-IN SCREW) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 5 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 5 | |
| 9X0194 | TERMINAL AS | 1 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 5P1476 | TERMINAL-FORK (14-GA TO 16-GA, NO. 10 SCREW) | 2 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 9 | |
| 5P5618 | TERMINAL-BLADE (10-GA TO 12-GA) | 2 | |
| 6T6505 | HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK) | 2 | |
| 6T6506 | TERMINAL-BLADE (14-GA TO 18-GA) | 2 | |
| 7G7918 | PLUG-SEAL | 4 | |
| 7G7919 | PLUG-SEAL | 2 | |
| 7G7920 | PLUG-SEAL | 1 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 2 | |
| 7X6222 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8558 | BOLT (M5X0.8X39.37-MM) | 2 | |
| 9X3265 | SEAL-CONNECTOR (24-PIN) | 2 | |
| 8N1523 | LOCKWASHER | 1 | |
| 9X6856 | PIN-CONNECTOR (16-GA TO 18-GA) | 5 | |
| 8N1542 | PIN-CONNECTOR (10-GA) | 1 | |
| 8N1548 | PIN-CONNECTOR (4-GA) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 156 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 138 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 148 | |
| 7K1181 | STRAP-CABLE | 50 | |
| 3S2093 | STRAP-CABLE | 18 | |
| 8N1521 | BELL AS-END | 1 | |
| 1106845 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 1106846 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 7X6222 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8558 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3265 | SEAL-CONNECTOR (24-PIN) | 2 | |
| 1106848 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 3 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 9 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 5 | |
| 8N1517 | RECEPTACLE AS-CONNECTOR (25-PIN) | 1 | |
| 8N1522 | NUT (2-1/4-16-THD) | 1 | |
| 9X0145 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X0146 | RECEPTACLE AS-CONNECTOR (24-PIN) | 3 | |
| 9X7143 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X7148 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 1130580 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 1064155 | KIT-RETAINING BOLT | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 4 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 2 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 2 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 2 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 3 | |
| 3407160 | 49 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 1305300 | 50 CLIP | 5 | |
| 1631285 | 51 FILM-IDENTIFICATION (SERVICE) | 1 | |
| 1S0994 | 52 CLIP (LOOP) | 1 | |
| 2N3479 | 53 SCREW (10-24X0.5-IN) | 12 | |
| 2N3480 | 54 SCREW-MACHINE (10-24X0.75-IN) | 2 | |
| 3J7354 | 55 SEAL-O-RING | 1 | |
| 8D1470 | 56 GROMMET | 1 | |
| 3S8664 | 57 CLIP | 1 | |
| 4B4274 | 58 WASHER (5.5X13X1.2-MM THK) | 2 | |
| 4M5281 | 59 BOLT (1/4-20X0.75-IN) | 2 | |
| 4P7581 | 60 CLIP (LADDER) | 2 | |
| 4P8134 | 61 CLIP (LADDER) | 4 | |
| 5C9553 | 62 BOLT (M6X1X16-MM) | 2 | |
| 5L4507 | 63 SCREW-MACHINE (10-32X0.875-IN) | 3 | |
| 5M3062 | 64 BOLT (3/8-16X0.75-IN) | 12 | |
| 5P1075 | 65 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 5P4115 | 66 WASHER-HARD (7.2X19X2-MM THK) | 2 | |
| 5P7854 | 67 CLIP (LOOP) | 1 | |
| 5S7379 | 68 BOLT (3/8-16X0.875-IN) | 7 | |
| 6B4540 | 69 NUT (4-40-THD) | 8 | |
| 6D4636 | 70 CLIP (LOOP) | 1 | |
| 6V2687 | 71 SCREW-PAN HEAD (10-24X1-IN) | 6 | |
| 8C9660 | 72 WASHER (4.6X7.9X0.8-MM THK) | 16 | |
| 8K1433 | 73 GROMMET | 1 | |
| 8T0328 | 74 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 8T4896 | 75 WASHER-HARD (10.2X18.5X2.5-MM THK) | 18 | |
| 8T9405 | 76 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 16 | |
| 9F8125 | 77 LOCKWASHER | 9 | |
| 9X2042 | 78 SCREW-TRUSS HEAD (M6X1X12-MM) | 8 | |
| 9X2045 | 79 SCREW-TRUSS HEAD (M6X1X20-MM) | 4 | |
| 9X8256 | 80 WASHER (6.6X12X2-MM THK) | 2 |
