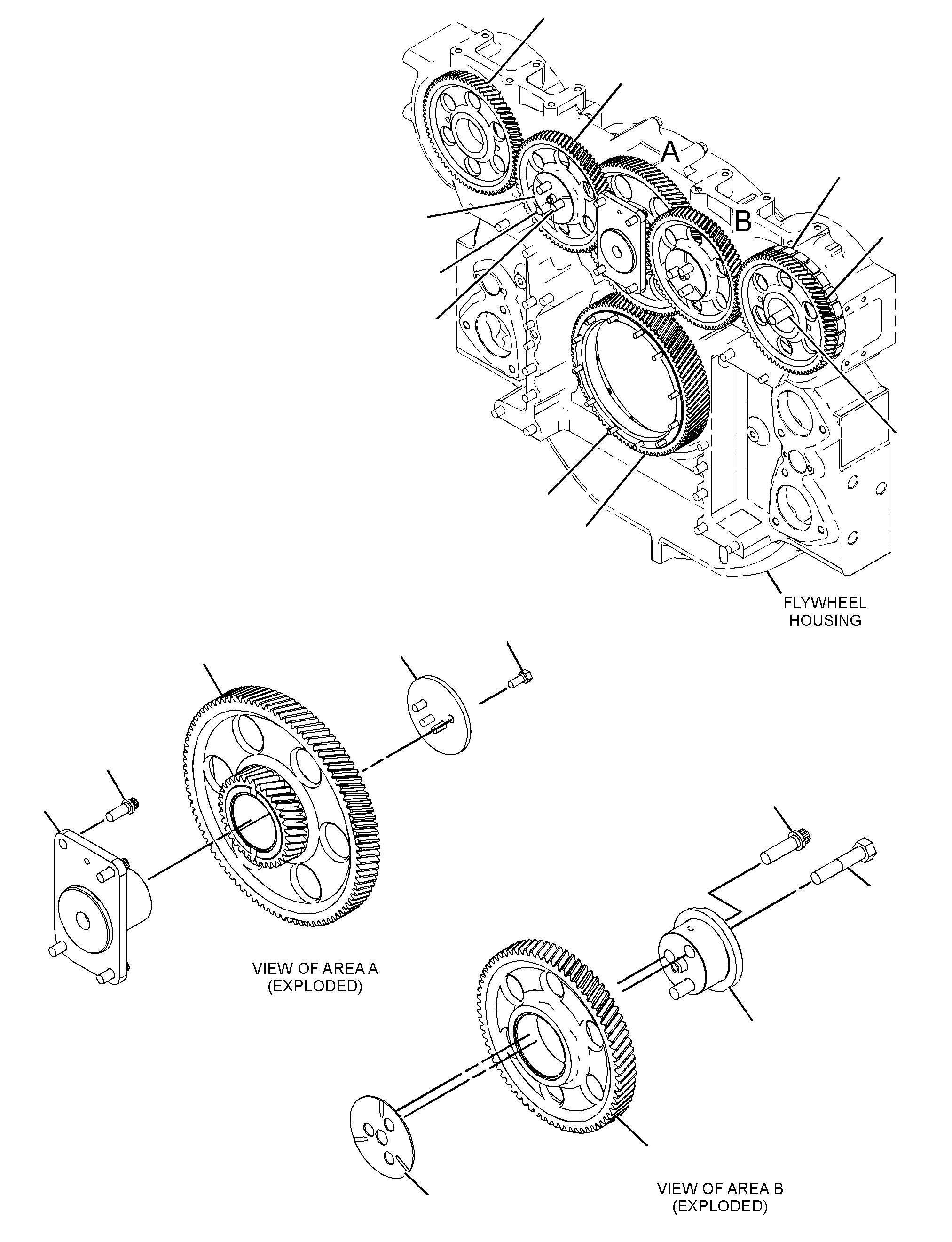

Assembly
100%

380-5096 GEAR GP-REAR -CAMSHAFT DRIVES/N 8BR3126-UP

Group No: 380-5096
Part NumberPart NameQty
10113641 GEAR AS-IDLER (69-TEETH)2
1259751BUSHING1
10113652 PLATE-THRUST1
10113663 SHAFT-GEAR (CLUSTER)1
10113674 SHAFT-IDLER2
10113685 WASHER-THRUST (19.5X106X1.9-MM THK)2
10113696 GEAR-CAMSHAFT DRIVE (70-TEETH)2
10113707 GEAR-CRANKSHAFT (92-TEETH)1
11433728 GEAR AS-CLUSTER (92/35-TEETH)1
1011372BUSHING
0L13519 BOLT (3/8-16X0.875-IN)4
1B436710 BOLT (5/8-11X3-IN)4
3S130711 BOLT-12 POINT HEAD (3/8-16X2-IN)12
8M253012 BOLT-12 POINT HEAD (1/2-13X1.25-IN)4
8S233113 BOLT-12 POINT HEAD (5/8-11X2-IN)2
7E532414 RING1
5P824815 WASHER-HARD (20X36.5X3.5-MM THK)1
9X888716 BOLT (3/4-10X3-IN)1
