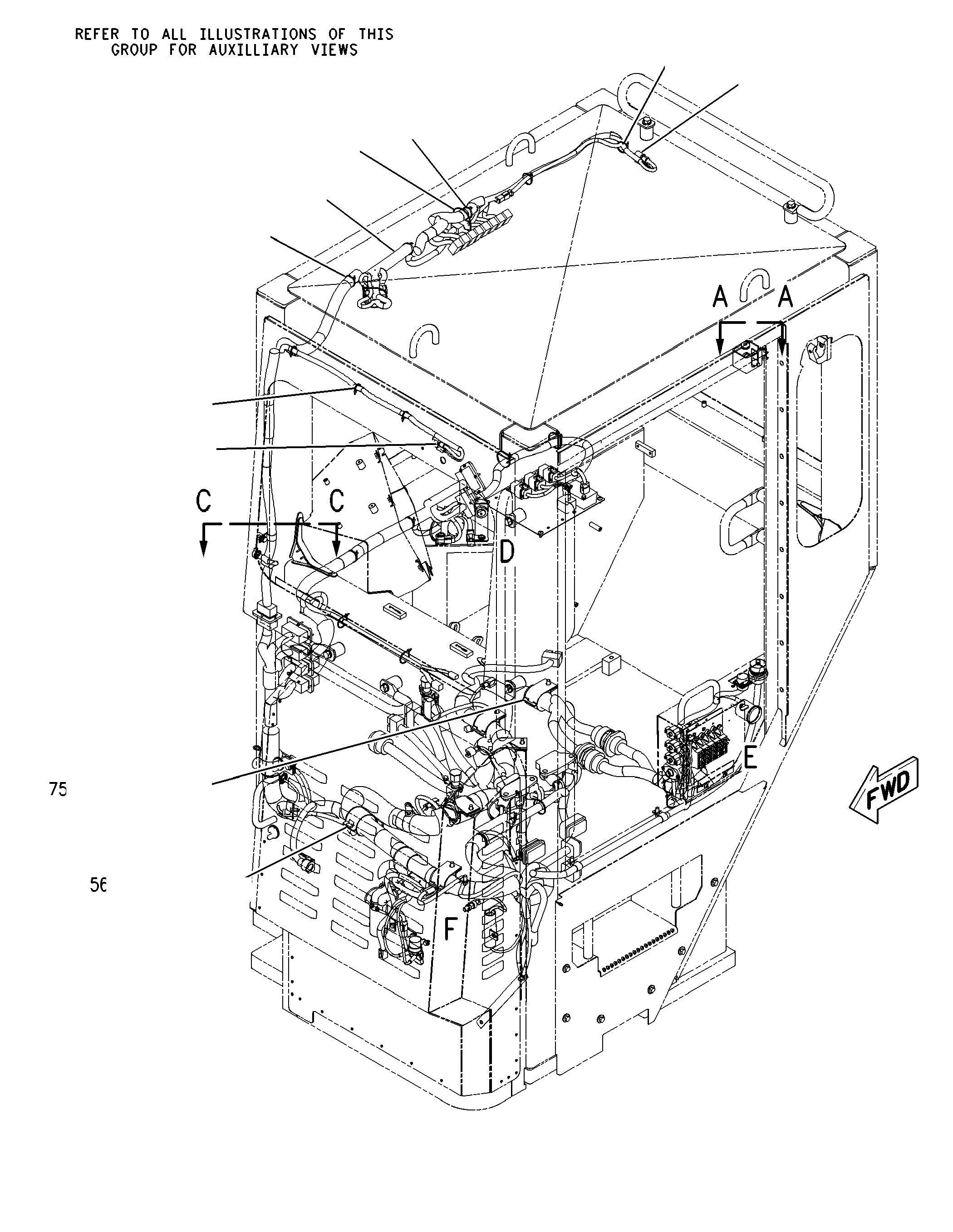

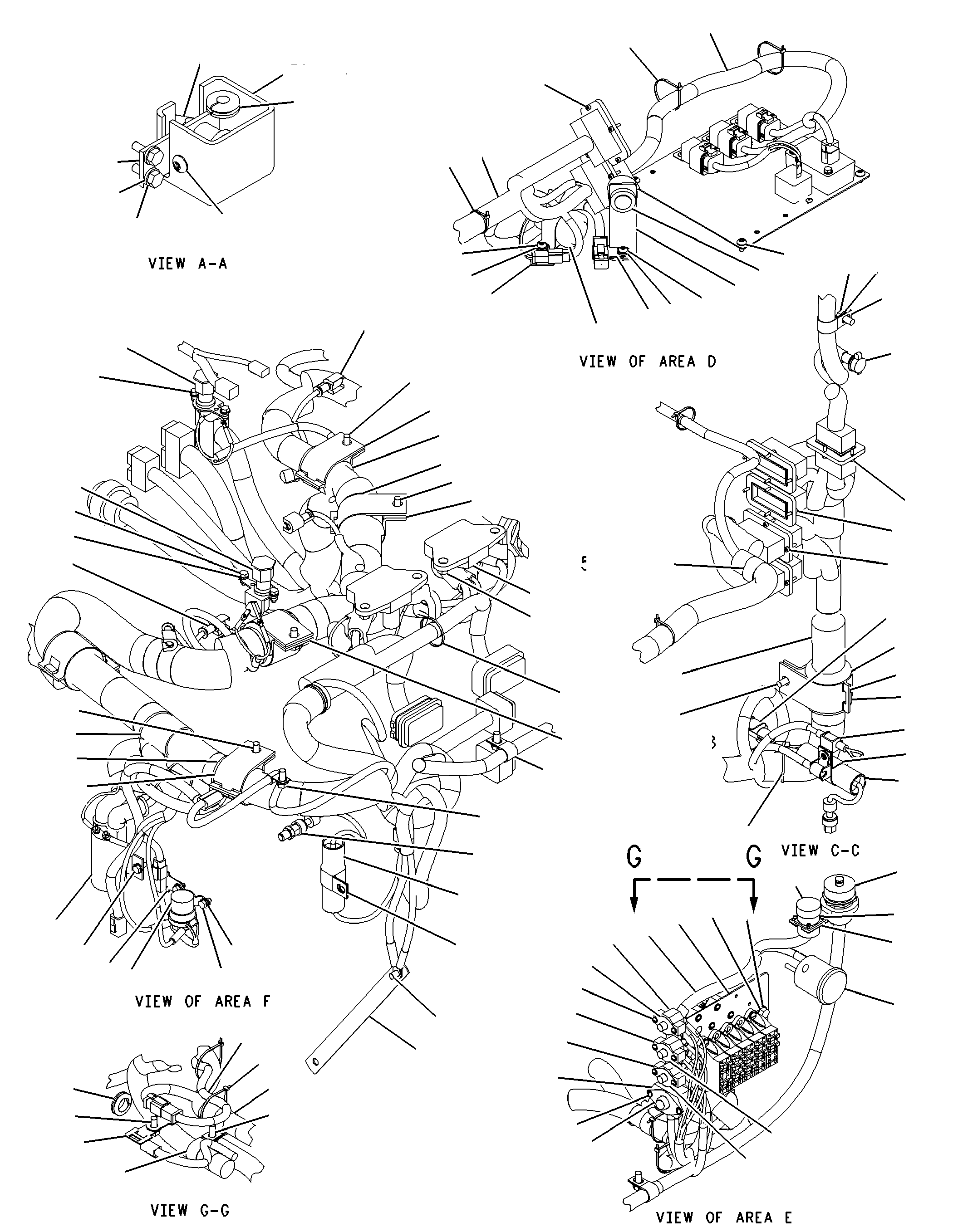

154-2496 WIRING GP-CABS/N AXF509-UP

Group No: 154-2496
Part NumberPart NameQty
3E63281 ALARM GP (24-VOLT)(EMS-LEVEL 3)1
3S20933 STRAP-CABLE20
3T30464 CLIP AS1
9W14945 KIT-SERVICE METER (24-VOLT)(INCLUDES FILM & METER)1
6V42836 PLATE-IDENTIFICATION (ALTERNATOR RESET)1
6V42857 PLATE-KEY SWITCH1
7G10609 STRAP AS-GROUND1
8T208510 PLATE1
9F812511 LOCKWASHER2
9G226412 CLIP-CONNECTOR5
9G226513 CLIP2
9G915014 CLIP2
9R793515 WASHER-SHOULDER (18.5X27X2-MM THK)1
9R794116 SOCKET AS1
9R7980COVER1
9X043517 ADAPTER1
123969418 HORN1
125130219 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)1
125639020 PLATE-INFORMATION (ENGINE)1
128615721 PLATE1
146023522 SWITCH AS-FOOT (DIFFERENTIAL LOCK)2
6V8362SCREW-MACHINE (8-32X0.31-IN)2
9B7233LOCKWASHER2
161359223 PLATE1
164095024 HARNESS AS-CAB1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552265KIT-CONNECTING PLUG (8-PIN)(RADIO)1
1028802KIT-RECEPTACLE (2-PIN)2
1028806KIT-RECEPTACLE (8-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
7X6222PLUG AS-CONNECTOR (24-PIN)1
203947525 HARNESS AS-CHASSIS1
1552260KIT-CONNECTING PLUG (3-PIN)(THROTTLE SENSOR)1
1552270KIT-CONNECTING PLUG (2-PIN)(TR/SC AIR PRESSURE SENSOR)2
1552270KIT-CONNECTING PLUG (2-PIN)(TRACTOR START RELAY)1
1106846PLUG AS-CONNECTOR (40-PIN)(TRANSMISSION ECM J-2)1
1471446PLUG AS-CONNECTOR (70-PIN)(MACHINE ECM J-1)1
1607690PLUG AS-CONNECTOR (70-PIN)(MACHINE ECM J-2)1
1010205PLUG AS-CONNECTOR (40-PIN)(TRANSMISSION ECM J-1)1
1552274KIT-CONNECTING PLUG (6-PIN)(5A VOLTAGE CONNECTOR)1
3T0204RECEPTACLE AS-CONNECTOR (20-PIN)(ANALYZER)1
3T3043RECEPTACLE AS-CONNECTOR (25-PIN)(CIRCUIT BREAKER HARNESS)1
7X6222PLUG AS-CONNECTOR (24-PIN)(IMPLEMENT HARNESS)2
8N1518PLUG AS-CONNECTOR (25-PIN)(FUSE PANEL/ENGINE HARNESS)2
9X0141PLUG AS-CONNECTOR (40-PIN)(CHASSIS/CAB SIDE HARNESS)2
9X0145RECEPTACLE AS-CONNECTOR (24-PIN)(ROOF HARNESS)1
9X1343RECEPTACLE AS-CONNECTOR (40-PIN)(DASH HARNESS)1
9X7147PLUG AS-CONNECTOR (40-PIN)(CHASSIS HARNESS)2
9X7148RECEPTACLE AS-CONNECTOR (40-PIN)(DASH HARNESS)1
164577726 PANEL GP-RELAY1
164722427 PANEL GP-CIRCUIT BREAKER1
165402628 SWITCH AS-MAGNETIC (24-VOLT)1
4F2294NUT-JAM (5/16-24-THD)2
6V8186NUT-FULL (5/16-24-THD)2
6V8378NUT (10-32-THD)2
165994129 HARNESS AS-BOX1
1552271KIT-CONNECTING PLUG (4-PIN)1
3T3044PLUG AS-CONNECTOR (25-PIN)1
8N1521BELL AS-END1
166806530 COVER1
167394631 HARNESS AS-DASH (ALTERNATOR)1
1552271KIT-CONNECTING PLUG (4-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)(HEADLAMPS & TURN SIGNALS)1
1028804KIT-RECEPTACLE (4-PIN)(SERVICE/CLEAR)1
9X1343RECEPTACLE AS-CONNECTOR (40-PIN)2
9X7148RECEPTACLE AS-CONNECTOR (40-PIN)2
171221032 CIRCUIT BREAKER AS (80-AMPERE)(ALTERNATOR)1
186409534A SENSOR GP-PRESSURE (TRACTOR AIR)1
186409534B SENSOR GP-PRESSURE (SCRAPER TRIP AIR)1
1028803KIT-RECEPTACLE (3-PIN)1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
9X1813SLEEVE
191507535 BRACKET AS1
192414236 HARNESS AS-ENGINE1
1028804KIT-RECEPTACLE (4-PIN)1
031021637 BOLT (1/4-20X0.75-IN)2
109163338 CLIP (SLOT)4
109163439 CLIP (TAB)4
124581440 BLOCK GP-JUNCTION (BATTERY)2
130530041 CLIP5
1H439343 LOCKWASHER6
3D979944 SCREW-MACHINE (8-32X0.875-IN)6
3K036045 SEAL-O-RING1
141497646 SCREW-WASHER HEAD (4-40X0.5-IN)(M4-40X12.7MM)4
3T313347 SWITCH AS-PUSH BUTTON (DOME LAMP)1
2H3922LOCKWASHER1
6V8363SCREW (10-32X0.312-IN)2
6V8370NUT-HEX (3/4-32-THD)1
8F1434LOCKWASHER2
9X0199BOOT-SWITCH1
4D779448 CLIP1
4L645449 BOLT (3/8-16X1-IN)7
4S445550 CLIP1
5L450751 SCREW-MACHINE (10-32X0.875-IN)2
5M306252 BOLT (3/8-16X0.75-IN)8
5P107553 WASHER-HARD (10.2X22.5X3-MM THK)7
5P746854 CLIP (SLOT)3
5P746955 CLIP (TAB)3
5P770356 GROMMET (52-MM ID)2
5P785457 CLIP (LOOP)2
5P818258 GROMMET (46-MM ID)3
5P843959 GROMMET1
5P844460 GROMMET (37-MM ID)1
5S734961 BOLT (1/4-20X0.5-IN)2
6D424462 CLIP (LOOP)1
6T364263 CIRCUIT BREAKER AS (10-AMPERE)(KEY START)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T364364A CIRCUIT BREAKER AS (15-AMPERE)(BLOWER MOTOR)1
6T364364B CIRCUIT BREAKER AS (15-AMPERE)(ENGINE CONTROL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6V054565 GROMMET1
6V188966 CLIP (LOOP)2
6V504867 SEAL-O-RING1
6V880168 NUT (3/8-16-THD)4
8C635469 CAP-RECEPTACLE (ET CONNECTOR)1
7K118170 STRAP-CABLE4
8M277371 CLIP (LOOP)2
8T250272 BOLT (3/8-16X1.125-IN)1
8T420573 WASHER-HARD (7.2X14.5X2-MM THK)10
8T489674 WASHER-HARD (10.2X18.5X2.5-MM THK)16
8T708775 GROMMET (34-MM ID)1
8T936476 BOLT (1/4-20X0.625-IN)6
8T940577 BOLT-SOCKET HEAD (M4X0.7X16-MM)28
9G436078 CAP-CONNECTOR1
9P071980 GROMMET1
9X204281 SCREW-TRUSS HEAD (M6X1X12-MM)1
9X204382 SCREW-TRUSS HEAD (M6X1X14-MM)4
9X204483 SCREW-TRUSS HEAD (M6X1X16-MM)3
