System And Components

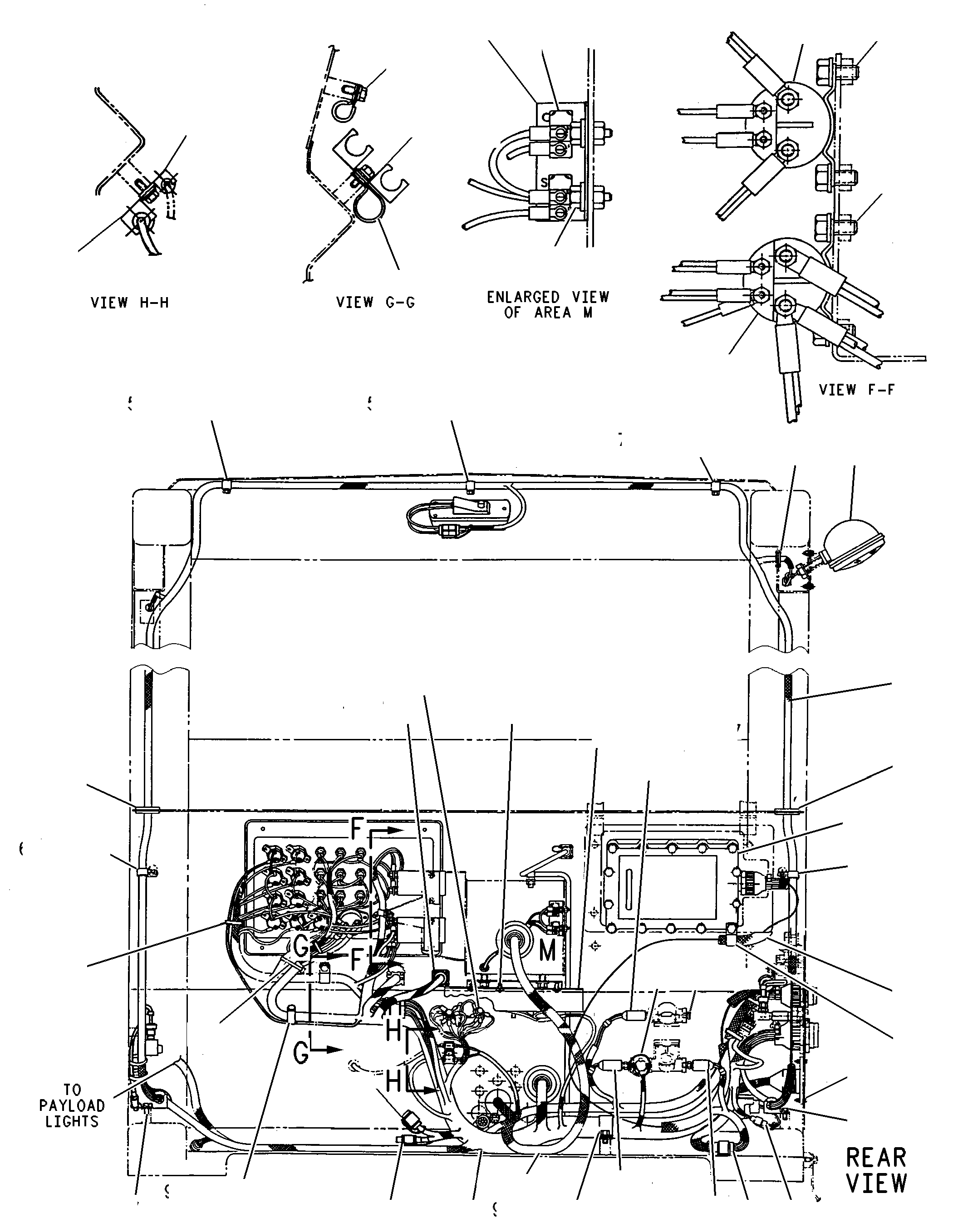

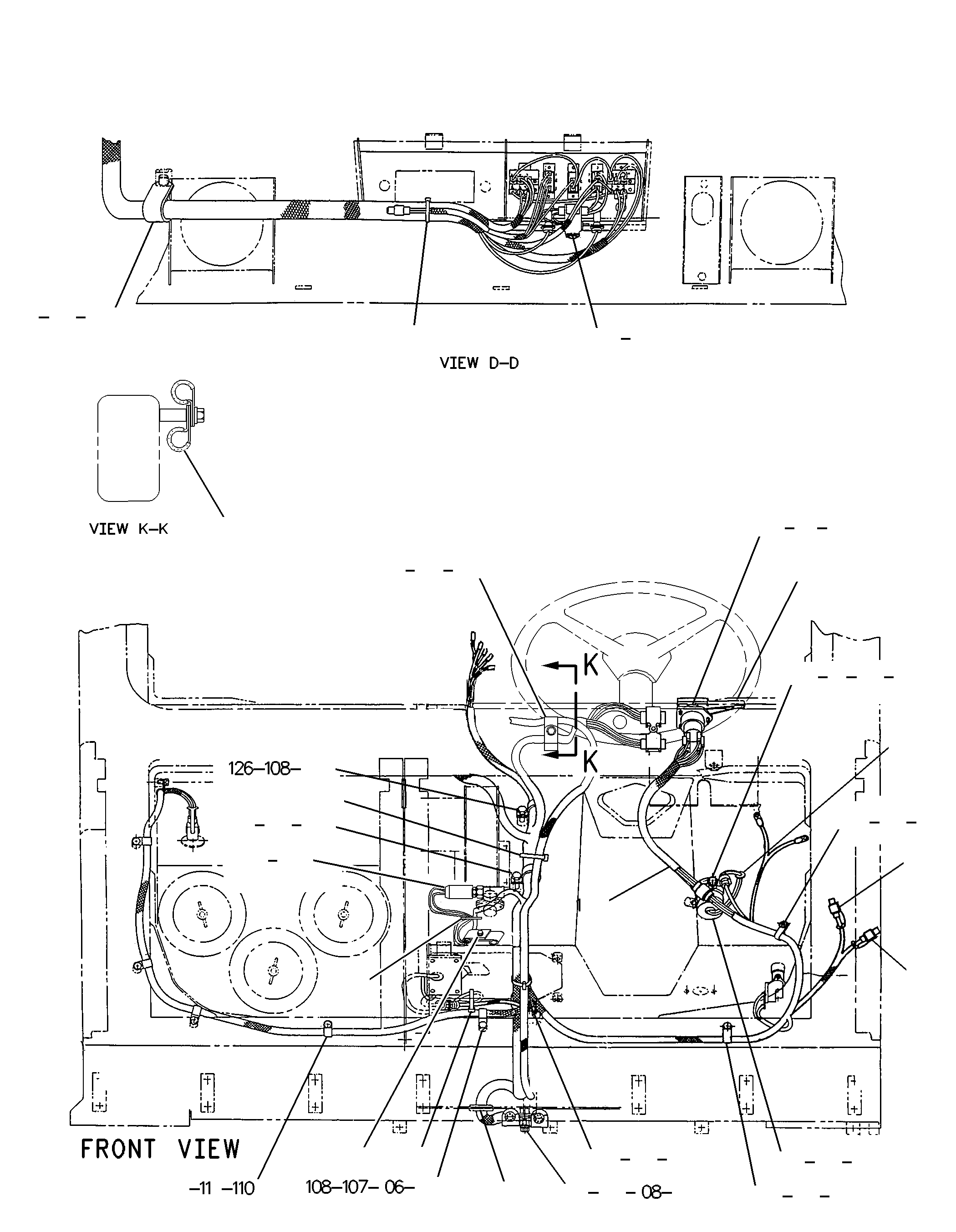

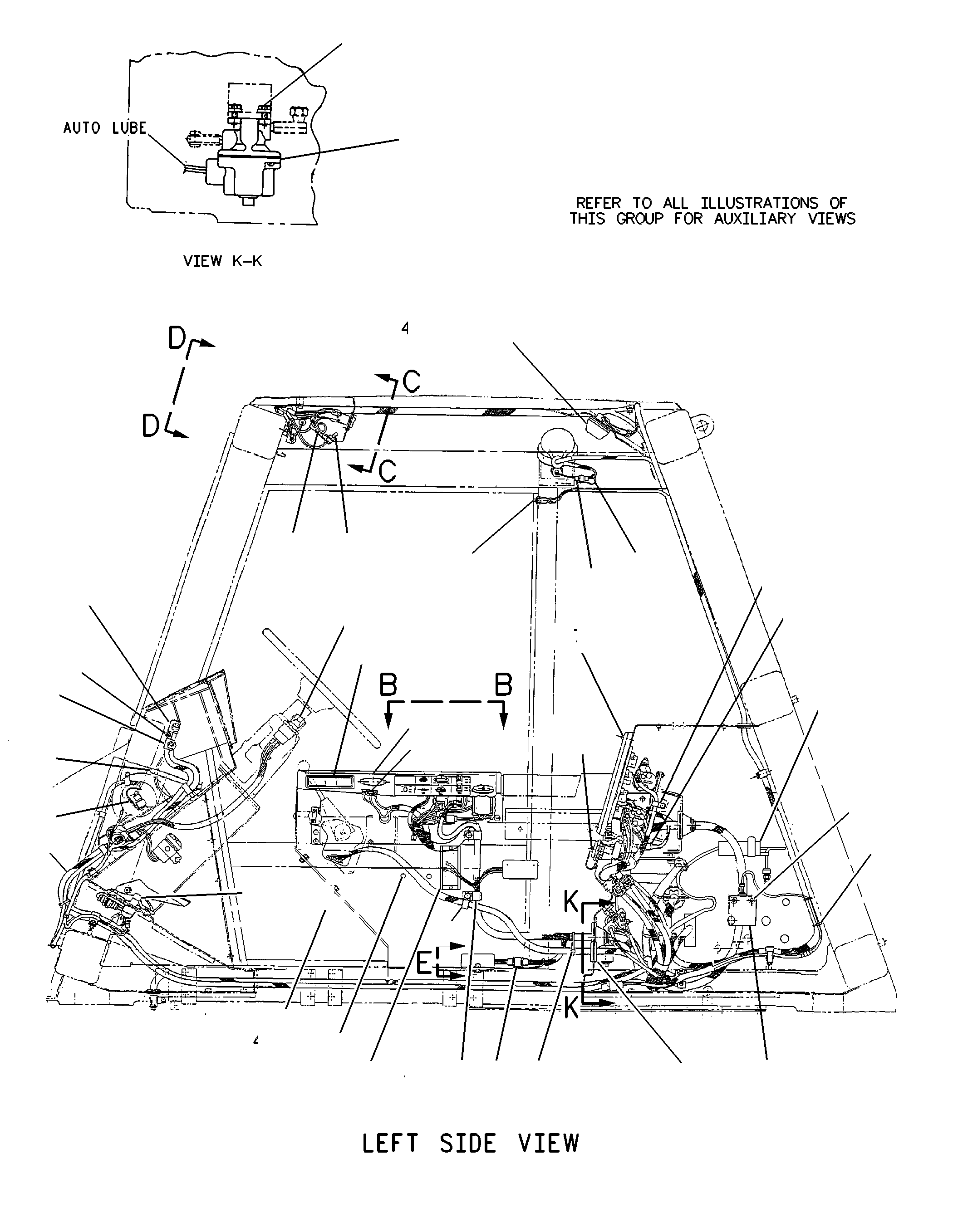

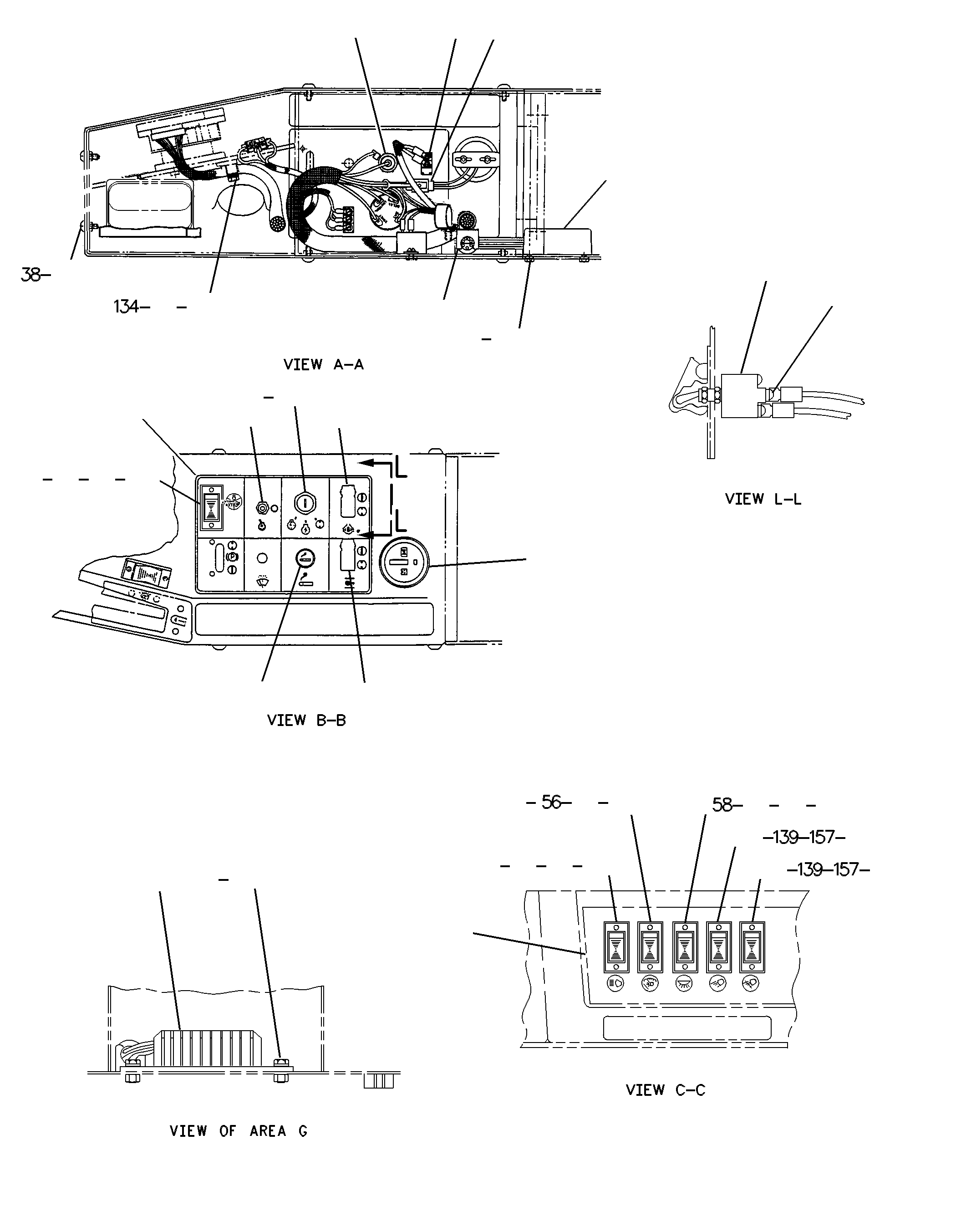

115-6473 WIRING GP-CAB -VIMSS/N 5RK16-21
Group No: 115-6473
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8M2770 | 1 CLIP (LOOP) | 2 | |
| 5M3062 | 2 BOLT (3/8-16X0.75-IN) | 5 | |
| 8T4896 | 3 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 3T3048 | 4 CLIP AS | 2 | |
| 7N9737 | 5 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | 6 PLUG-SEAL | 1 | |
| 1156482 | 7 PANEL GP-CIRCUIT BREAKER (VIMS) | 1 | |
| 9X2042 | 8 SCREW-TRUSS HEAD (M6X1X12-MM) | 4 | |
| 6I1653 | 9 BRACKET AS | 1 | |
| 2G1136 | 10 GROMMET | 1 | |
| 3T3047 | 11 CLIP AS | 1 | |
| 3S8665 | 12 CLIP (LOOP) | 2 | |
| 1080358 | 13 FLASHER AS (24-VOLT) | 1 | |
| 4B1237 | 14 SCREW-MACHINE (10-32X12.7-MM) | 2 | |
| 2H1855 | 15 SWITCH AS-FOOT (HEADLAMP) | 1 | |
| 6V8362 | SCREW-MACHINE (8-32X0.31-IN) | 3 | |
| 9B7233 | LOCKWASHER | 3 | |
| 4B1320 | 16 SCREW-MACHINE (1/4-20X0.625-IN) | 2 | |
| 8T4205 | 17 WASHER-HARD (7.2X14.5X2-MM THK) | 11 | |
| 1004311 | 18 SENSOR GP-PRESSURE (BRAKE AIR) | 1 | |
| 1167833 | 19 PANEL AS | 1 | |
| 7N8419 | 20 TERMINAL-BLADE | 3 | |
| 5P5824 | 21 HOLDER | 1 | |
| 5P5454 | 22 ASHTRAY | 1 | |
| 5V2998 | 23 PLATE | 2 | |
| 9D4068 | 24 SWITCH-PUSH BUTTON (DOME LIGHT) | 1 | |
| 7N5876 | 25 LAMP (24-VOLT, 0.2-AMPERE)(OVERHEAD CONSOLE) | 2 | |
| 3T3437 | 26 RESISTOR AS-DIMMER | 1 | |
| 3T3270 | WIRE AS (16-GA) | 1 | |
| 3T3272 | CLIP | 1 | |
| 5P6008 | TUBE-HEAT SHRINK (6.35-MM DIA) | ||
| 5S7349 | 27 BOLT (1/4-20X0.5-IN) | 5 | |
| 3T0050 | 28 CLIP | 1 | |
| 5P0896 | 29 TRIM | 2 | |
| 3T3045 | 30 CLIP AS | 1 | |
| 4M5281 | 31 BOLT (1/4-20X0.75-IN) | 2 | |
| 3S2093 | 32 STRAP-CABLE | 5 | |
| 8T4224 | 33 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 1157445 | 34 HARNESS AS-PANEL | 1 | |
| 6V8185 | 35 NUT (1/4-20-THD) | 4 | |
| 3T3046 | 36 CLIP AS | 1 | |
| 6T3991 | 37 SWITCH AS-ROCKER (BACK UP LIGHTS) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 6T6329 | 38 BEZEL | 1 | |
| 6V8927 | 39 BOLT-SOCKET HEAD (6-32X0.5-IN) | 2 | |
| 9G9150 | 40 CLIP | 1 | |
| 9F8125 | 41 LOCKWASHER | 5 | |
| 5P7854 | 42 CLIP (LOOP) | 1 | |
| 6V8189 | 43 NUT (5/16-18-THD) | 2 | |
| 9X0262 | 44 ADAPTER | 1 | |
| 6V5048 | 45 SEAL-O-RING | 2 | |
| 6V1926 | 46 SENSOR GP-PRESSURE (ATMOSPHERIC) | 1 | |
| 9X0435 | 47 ADAPTER | 1 | |
| 9G4360 | 48 CAP-CONNECTOR | 1 | |
| 1146658 | 49 WASHER (6.5X17X1-MM THK) | 4 | |
| 8T5391 | 50 BOLT (5/16-18X0.5-IN) | 2 | |
| 9G5127 | 51 BREATHER (ATMOSPHERIC) | 1 | |
| 5T4434 | 52 VALVE AS-SOLENOID (AUTO LUBE) | 1 | |
| 5D5569 | CONNECTOR | 1 | |
| 7D6081 | VALVE AS | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 7X6399 | 53 LAMP GP-DOME (CAB) | 1 | |
| 4B1238 | 54 SCREW-MACHINE (10-32X15.88-MM) | 3 | |
| 8M2770 | 55 CLIP (LOOP) | 1 | |
| 5M3062 | 56 BOLT (3/8-16X0.75-IN) | 16 | |
| 8T4896 | 57 WASHER-HARD (10.2X18.5X2.5-MM THK) | 24 | |
| 3T3048 | 58 CLIP AS | 3 | |
| 3T3047 | 59 CLIP AS | 2 | |
| 1H3338 | 60 LOCKWASHER | 4 | |
| 8T4205 | 61 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 9G9152 | 62 CLIP | 1 | |
| 9G9154 | 63 CLIP | 1 | |
| 5S7349 | 64 BOLT (1/4-20X0.5-IN) | 1 | |
| 3T0050 | 65 CLIP | 4 | |
| 3T0376 | 66 SWITCH AS-MAGNETIC (BACK UP RELAY) | 1 | |
| 4F2294 | NUT-JAM (5/16-24-THD) | 2 | |
| 6V8186 | NUT-FULL (5/16-24-THD) | 2 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 4M5281 | 67 BOLT (1/4-20X0.75-IN) | 4 | |
| 4L6454 | 68 BOLT (3/8-16X1-IN) | 2 | |
| 9M8406 | 69 CLIP (LOOP) | 5 | |
| 5P6264 | 70 GROMMET | 2 | |
| 1171369 | 71 HARNESS AS-LIGHTING (OVERHEAD CONSOLE) | 1 | |
| 3T4411 | 72 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 6V8188 | 73 NUT (1/2-13-THD) | 1 | |
| 8T4223 | 74 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 5P8440 | 75 GROMMET | 1 | |
| 3S8664 | 76 CLIP | 2 | |
| 1157506 | 77 HARNESS AS-MONITOR (VIMS) | 1 | |
| 5S7379 | 78 BOLT (3/8-16X0.875-IN) | 6 | |
| 3E2034 | 79 SWITCH AS-PRESSURE (AETA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 1157505 | 80 HARNESS AS-CAB (VIMS) | 1 | |
| 3S2093 | 81 STRAP-CABLE | 6 | |
| 3E2033 | 82 SWITCH AS-PRESSURE (SECONDARY BRAKE) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9D3721 | 83 SWITCH-TOGGLE (SINGLE POLE)(SERVICE SET/CLEAR) | 2 | |
| 3T3046 | 84 CLIP AS | 1 | |
| 4B1229 | 85 SCREW (10-24X12.7-MM) | 8 | |
| 1178844 | 86 PLATE AS | 1 | |
| 4B4274 | 87 WASHER (5.5X13X1.2-MM THK) | 8 | |
| 6V8187 | 88 NUT (1/4-28-THD) | 4 | |
| 5M6213 | 89 PLUG-PIPE (1/4-18-THD) | 1 | |
| 9M4972 | 90 CLIP (LOOP) | 2 | |
| 2M9346 | 91 SWITCH AS-PRESSURE (STOP LAMP) | 1 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 7D4092 | 92 CLIP | 1 | |
| 5P8394 | 93 SCREW-MACHINE (8-32X0.75-IN) | 8 | |
| 4B2043 | 94 NUT (8-32-THD) | 8 | |
| 4B4863 | 95 WASHER (4.7X11X1.2-MM THK) | 8 | |
| 8C6354 | 96 CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 3E8646 | 97 CONVERTER AS-ELECTRICAL (24-VOLT TO 12-VOLT, 25-AMPERE) | 1 | |
| 1157487 | 98 HARNESS AS-CAB (AETA) | 1 | |
| 3E7840 | 99 CONTROL GP-ELECTRONIC (AETA) | 1 | |
| 3T1265 | FILM-IDENTIFICATION (AETA) | 1 | |
| 6D3033 | 100 SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 6V9497 | 101 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 6B4540 | 102 NUT (4-40-THD) | 4 | |
| 8X9638 | 103 PLATE | 1 | |
| 3T0376 | 104 SWITCH AS-MAGNETIC (MAIN RELAY) | 1 | |
| 4F2294 | NUT-JAM (5/16-24-THD) | 2 | |
| 6V8186 | NUT-FULL (5/16-24-THD) | 2 | |
| 6V8378 | NUT (10-32-THD) | 2 | |
| 3E2034 | 105 SWITCH AS-PRESSURE (SERVICE BRAKE RETARDER) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 8M2770 | 106 CLIP (LOOP) | 6 | |
| 5M3062 | 107 BOLT (3/8-16X0.75-IN) | 11 | |
| 8T4896 | 108 WASHER-HARD (10.2X18.5X2.5-MM THK) | 12 | |
| 3T3048 | 109 CLIP AS | 3 | |
| 8T4205 | 110 WASHER-HARD (7.2X14.5X2-MM THK) | 7 | |
| 9G9154 | 111 CLIP | 2 | |
| 5S7349 | 112 BOLT (1/4-20X0.5-IN) | 10 | |
| 3T0050 | 113 CLIP | 2 | |
| 3S8664 | 114 CLIP | 2 | |
| 3S2093 | 115 STRAP-CABLE | 5 | |
| 5P8167 | 116 BOLT (3/8-16X0.625-IN) | 1 | |
| 9G9150 | 117 CLIP | 2 | |
| 9G5589 | 118 SWITCH AS | 1 | |
| 5L7200 | SCREW (8-32X0.375-IN) | 1 | |
| 9B7233 | LOCKWASHER | 1 | |
| 8D7712 | 119 FASTENER | 3 | |
| 9F8125 | 120 LOCKWASHER | 3 | |
| 9G9813 | 121 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 8W2066 | 122 LEVER-TURN SIGNAL | 1 | |
| 3E2035 | 123 SWITCH AS-PRESSURE (RETARDER LAMP) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 3B6768 | 124 BUSHING-REDUCER | 1 | |
| 6G9462 | 125 HARNESS AS-WIRING (TURN SIGNAL) | 1 | |
| 9M4972 | 126 CLIP (LOOP) | 1 | |
| 1V6688 | 127 GROMMET | 1 | |
| 7D7233 | 128 CLIP (LOOP) | 1 | |
| 8M2773 | 129 CLIP (LOOP) | 1 | |
| 4V5091 | 130 GROMMET | 1 | |
| 4D7794 | 131 CLIP | 1 | |
| 4K8864 | 132 CLIP (LOOP) | 2 | |
| 4S4455 | 133 CLIP | 1 | |
| 8M2770 | 134 CLIP (LOOP) | 1 | |
| 5M3062 | 135 BOLT (3/8-16X0.75-IN) | 2 | |
| 8T4896 | 136 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 6T6066 | 137 SWITCH AS-ROCKER (THROTTLE BYPASS) | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 2 | |
| 9X2042 | 138 SCREW-TRUSS HEAD (M6X1X12-MM) | 6 | |
| 7N8419 | 139 TERMINAL-BLADE | 24 | |
| 9G9287 | 140 CONTROL GP-ENGINE ELECTRONIC (ENGINE SHUTDOWN) | 1 | |
| 1S9593 | STRAP-CABLE | 3 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 4 | |
| 9G3670 | HOUSING-PLUG | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 4D1836 | 141 SWITCH-TOGGLE (AETA TEST) | 1 | |
| 3T5438 | 142 DISTRIBUTOR GP-ELECTRONIC (TRANSMISSION SPEED) | 1 | |
| 4M0061 | 143 BOLT (5/16-18X0.75-IN) | 2 | |
| 8T4224 | 144 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 4K1245 | 145 KNOB AS-LIGHTER | 1 | |
| 9D3721 | 146 SWITCH-TOGGLE (SINGLE POLE)(BRAKE RETRACT) | 1 | |
| 9G2264 | 147 CLIP-CONNECTOR | 1 | |
| 9W1495 | 148 KIT-SERVICE METER | 1 | |
| 8T0701 | FILM-SERVICE METER | 1 | |
| 9W1411 | WIRE AS | 1 | |
| 6T6969 | 149 GUARD-SWITCH | 2 | |
| 1164700 | 150 HOUSING AS | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 1 | |
| 9B7233 | LOCKWASHER | 1 | |
| 9G7641 | 151 SWITCH GP-START (ENGINE, KEY)(ENGINE)(KEY) | 1 | |
| 7T1874 | 152 TERMINAL-BLADE | 2 | |
| 8C9812 | 153 SWITCH AS-TOGGLE (STARTING AID) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 1063758 | 154 FILM-INSTRUCTION (CONSOLE) | 1 | |
| 6T3991 | 155 SWITCH AS-ROCKER (LADDER ACCESS LIGHTS) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 6T6329 | 156 BEZEL | 6 | |
| 6V8927 | 157 BOLT-SOCKET HEAD (6-32X0.5-IN) | 12 | |
| 6T3990 | 158 SWITCH AS-ROCKER (INTERIOR LIGHT) | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 2 | |
| 8T2966 | 159 FILM-INSTRUMENT PANEL | 1 | |
| 6T3989 | 160 SWITCH AS-ROCKER (FOG LIGHTS) | 1 | |
| 3L8187 | LOCKWASHER | 8 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 8 | |
| 1146658 | 161 WASHER (6.5X17X1-MM THK) | 6 | |
| 9G9154 | 162 CLIP | 1 | |
| 6T3991 | 163 SWITCH AS-ROCKER (PANEL LIGHTS) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 6T3989 | 164 SWITCH AS-ROCKER (HEADLIGHTS) | 1 | |
| 3L8187 | LOCKWASHER | 8 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 8 |
