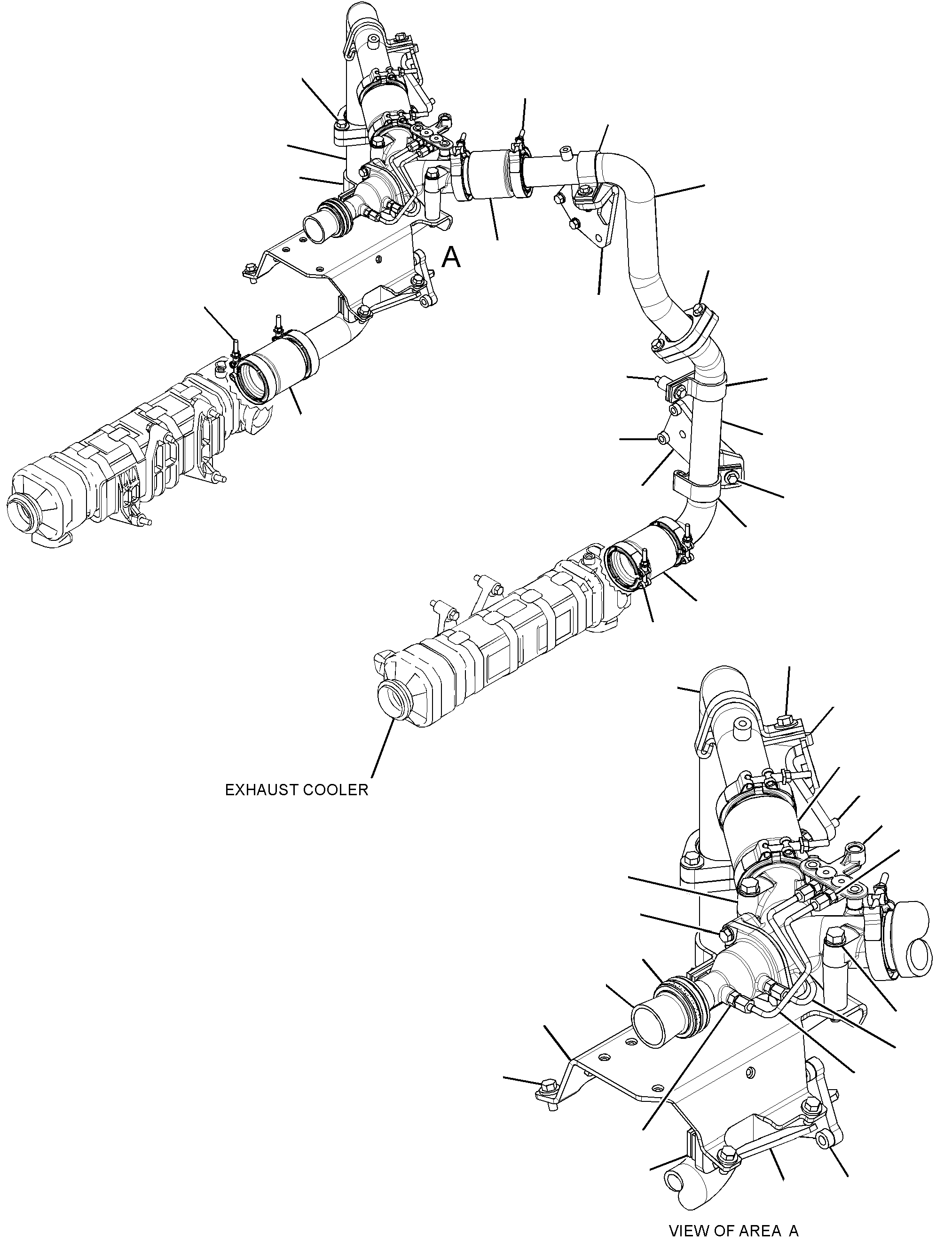

347-4288 LINES GP-AIRPROVIDES AN AIR LINES GROUP FOR THE NRS SYSTEM

Group No: 347-4288
Part NumberPart NameQty
9N50851 CLAMP8
34217262 TUBE AS-AIR1
34381213 CONNECTOR AS4
3J7352CONNECTOR1
2147566SEAL-O-RING1
34589884 BRACKET AS1
4K9097NUT-WELD (5/16-18-THD)6
8K7186NUT-WELD (7/16-14-THD)2
34590255 BELLOWS AS4
34722706 MANIFOLD1
34722737 TUBE AS-AIR1
34794698 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)2
34929219 TUBE AS-AIR1
349292210 TUBE AS-AIR1
349967611 ADAPTER1
349968712 TUBE AS1
349968813 TUBE AS1
352115214 TUBE (VENTURI)1
353715315 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)3
353715616 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)1
353715717 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)2
0L207018 BOLT (3/8-16X2.25-IN)2
0S157119 BOLT (3/8-16X1.75-IN)1
0S159020 BOLT (3/8-16X2-IN)3
0S159121 BOLT (3/8-16X1.5-IN)8
0S159422 BOLT (3/8-16X1-IN)4
0S161823 BOLT (5/16-18X1-IN)2
109233224 SEAL-O-RING2
273503925 SEAL-O-RING1
2J590726 BOLT (7/16-14X4.25-IN)2
5M289427 WASHER-HARD (10.2X18.5X2.5-MM THK)4
5P489228 SEAL-O-RING2
5P824429 WASHER-HARD (12X22.5X2.5-MM THK)2
7W909430 SPACER (11X20X9-MM THK)4
8R808731 SPACER (11X22X28-MM THK)2
9D619632 CLIP (SLOT)6
9D619733 CLIP (TAB)6
9L913234 WASHER-HARD (10.2X25.5X2.5-MM THK)10
9M197435 WASHER-HARD (8.8X16X2-MM THK)2
9X645836 WASHER-HARD (10.2X22.5X3-MM THK)4
