System And Components

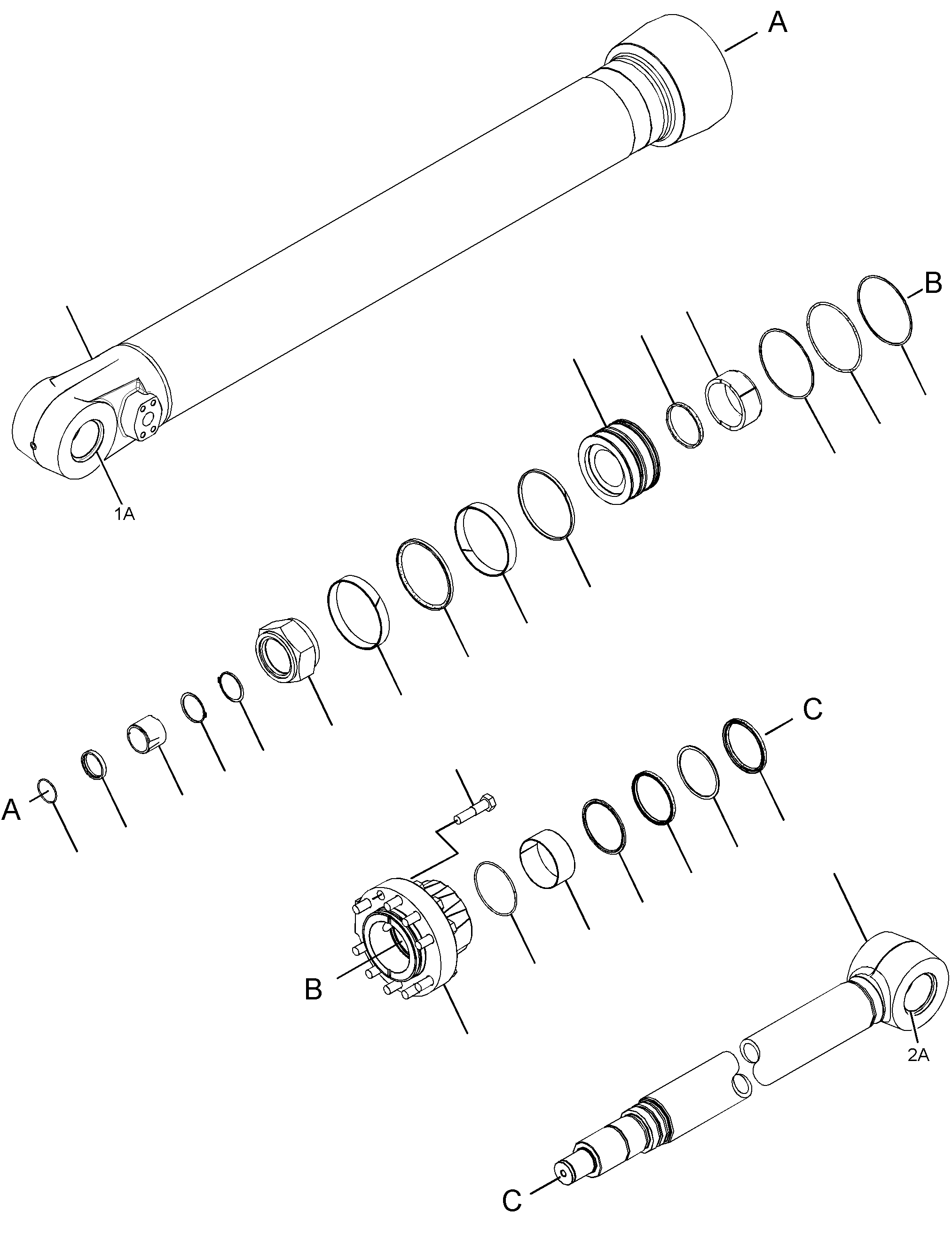

370-6692 CYLINDER GP-STICKS/N SD21-UP
Group No: 370-6692
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3588462 | 1 CYLINDER AS | 1 | |
| 1261956 | 1A BUSHING | 1 | |
| 3588472 | 2 ROD AS | 1 | |
| 2285618 | 2A BUSHING | 1 | |
| 3706693 | 3 HEAD | 1 | |
| 3706664 | 4 SEAL-O-RING | 1 | |
| 3706665 | 5 RING-BACKUP | 2 | |
| 1659293 | 6 SEAL-LIP TYPE | 1 | |
| 0875397 | 7 RING-BACKUP | 1 | |
| 3338673 | 8 SEAL-U-CUP | 1 | |
| 3338672 | 9 SEAL-BUFFER | 1 | |
| 1140763 | 10 BUSHING | 1 | |
| 0875393 | 11 RING-RETAINING | 1 | |
| 2003620 | 12 RING-SEAL | 1 | |
| 3597190 | 13 STOP | 1 | |
| 3588478 | 14 PISTON | 1 | |
| 2042845 | 15 RING | 2 | |
| 4958218 | 16 SEAL AS | 1 | |
| 2042846 | 17 RING | 1 | |
| 1261971 | 18 LOCKNUT-SPECIAL (M100X2-THD) | 1 | |
| 2254641 | 19 RING-RETAINING | 1 | |
| 2254642 | 20 RING | 1 | |
| 0950930 | 21 RING-RETAINING (EXTERNAL) | 2 | |
| 3597189 | 22 STOP | 1 | |
| 1739684 | 23 BOLT (M24X3X100-MM) | 10 | |
| 5185140 | KIT-SEAL (STICK CYLINDER) | 1 |
